12B-459A352 - Yard Machines Walk-Behind Mower (2001) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

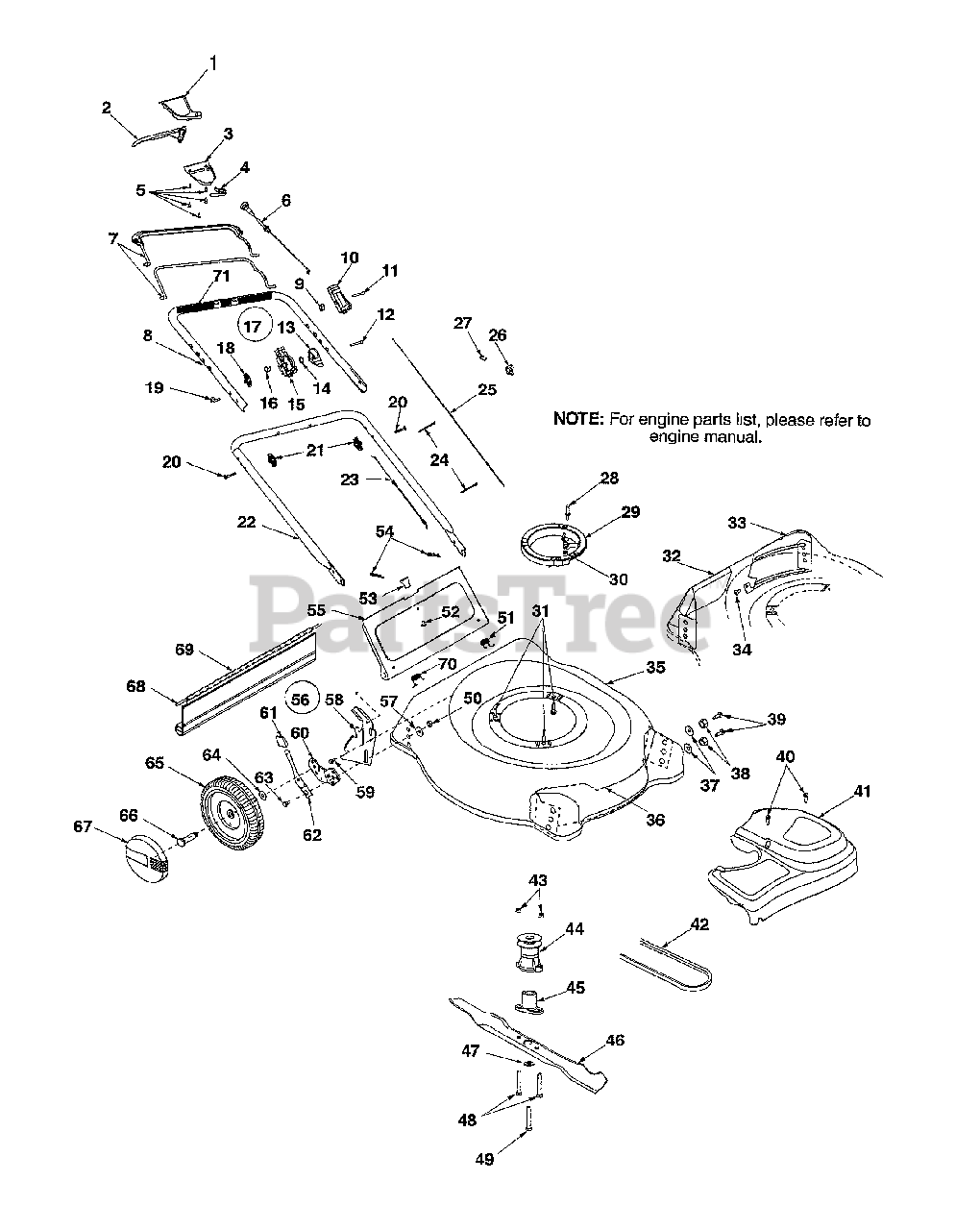

General Assembly Parts Diagram

  • Title

1

MTD 731-1057

Upper Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

2

MTD 731-0620

Drive Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

3

MTD 731-1058

Lower Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

4

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

5

MTD 710-1667A

Screw #10-12:75

$4.49

$

In Stock, Qty 13

0

6

MTD 746-0960

Drive Cable
(Superseded to 946-0960)

$49.99

$

Usually ships in 3-6 days

0

7

MTD 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Deluxe Control Lever
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

8

MTD 749-1230

Upper Handle
(Superseded to 749-1230A-0637)

Variations

MTD 749-1230-0637

Upper Handle, Deluxe - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

10

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

11

MTD 710-1270

Oval C-Sunk Scr. 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

12

MTD 710-0605

Oval C-Sunk Scr. 1/4-20 x 1.81

Note: If Equipped

$4.49

$

In Stock, only 2 left!

0

13

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: If Equipped

$8.49

$

In Stock, only 3 left!

0

14

MTD 736-0501

Curved Washer .663 x .980 x .014
(Superseded to 936-0501)

Note: If Equipped

$6.99

$

Usually ships in 3-6 days

0

15

MTD 746-0875

Throttle Housing
(Superseded to 946-0875)

Note: If Equipped

$9.49

$

In Stock, only 3 left!

0

16

MTD 712-0324

Hex Lock Nut 1/4-20 Thd.

Note: If Equipped

$3.99

$

In Stock, Qty 16

0

17

MTD 811-00185

Throttle Body Comp.
(Superseded to 811-0185)

Note: If Equipped

$36.99

$

In Stock, only 1 left!

0

18

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

21

MTD 720-0314

Knob

$6.49

$

In Stock, only 1 left!

0

22

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

23

MTD 746-0843

Throttle Cable: 55" (B&S)
(Superseded to 946-0671A)

Note: If Equipped

$14.99

$

In Stock, only 3 left!

0

MTD 746-0847

Throttle Cable: 42" (Tec)
(Superseded to 946-1115)

Note: If Equipped

$28.99

$

In Stock, only 1 left!

0

24

MTD 726-0240

Tie Cable
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

25

MTD 746-0551

Control Cable 43" (B&S)
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

MTD 746-0555

Control Cable 55" (Tec)
(Superseded to 946-0555)

$26.99

$

In Stock, only 4 left!

0

26

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

Note: If Equipped

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Cable Clamp (Tec)
(Superseded to TC-27793)

Note: If Equipped

$1.99

$

In Stock, only 2 left!

0

27

MTD 710-1237

Hex Screw: T: #10-32 (B&S)

Note: If Equipped

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Screw: #10-32 (Tec)

Note: If Equipped

$

$

Not available

28

MTD 711-1293

Pin-Belt Keeper

$4.99

$

Usually ships in 3-6 days

0

29

MTD 631-0075B

Engine Spacer

$

$

Not available

30

MTD 712-0271

Hex Nut 1/4-20 Thread

$4.49

$

In Stock, Qty 19

0

31

MTD 710-1008

Tapp Screw w/Hex Lock Wash

$5.49

$

In Stock, Qty 7

0

32

MTD 782-5004

Rear Baffle Right
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

33

MTD 782-5003

Rear Baffle Left
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

34

MTD 710-1017

Scr. AB: 1/4-14 .625 Trust

$8.49

$

In Stock, Qty 9

0

35

MTD 782-0080A

Deck 21" RD

Variations

MTD 782-0080A-0665

No Longer Available DECK-21 R - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0080A-0638

No Longer Available DECK-21 R - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0080A-0691

No Longer Available DECK-21 R - BLACK JACK (0691)

$

$

Not available

MTD 782-0080A-0709

No Longer Available DECK-21 R - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

36

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

38

MTD 736-0331

Bell Washer .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-0216

Hex Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

40

MTD 7510042824

Screw #12 x .457
(Superseded to 710-1650)

$4.99

$

In Stock, Qty 20+

0

41

MTD 731-1936A

Front Drive Cover - Black
(Superseded to 931-05132A)

$47.99

$

Usually ships in 3-6 days

0

MTD 731-1937A

front Drive Cover - Yellow
(Superseded to 931-04580)

$

$

Not available

42

MTD 754-0465

V-Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 13

0

43

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

44

MTD 756-1146A

Drive Pulley

$57.99

$

Usually ships in 3-6 days

0

45

MTD 748-0411

Blade Adapter
(Superseded to 753-05151)

$67.99

$

Usually ships in 3-6 days

0

46

MTD 742-0741

21" Mulching Blade w/star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 742-0641

21" Standard Blade
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

47

MTD 736-0452

Bell Washer .396 I.D. x 1.140 O.D. x

$4.99

$

In Stock, Qty 5

0

48

MTD 710-0606

Hex Screw 1/4-2 0x 1.50

$5.49

$

In Stock, Qty 10

0

49

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

50

MTD 712-3005

Hex Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

51

MTD 732-0677

Torsion Spring L.H.
(Superseded to 932-0677)

$

$

Not available

52

MTD 710-0192

Scr. Tr. Mach #10-24 x .380

$3.99

$

In Stock, Qty 12

0

53

MTD 720-0275

Knob

$

$

Not available

54

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

55

MTD 782-7000

Rear Discharge Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

56

MTD 682-0515A

Complete Handle Brkt Ass'y - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 682-0516A

Complete Handle Brkt Ass'y - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

57

MTD 736-0356

Bell Washer .39 ID x 1.38 OD
(Superseded to 936-0356)

$

$

Not available

58

MTD 682-0513

Handle Brkt Ass'y - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 682-0514

Handle Brkt Ass'y - RH
(Superseded to 682-0516-0637)

$

$

Not available

59

MTD 710-0896

Hex Screw w/wsh. 1/4-14 x .62

$4.49

$

In Stock, Qty 20+

0

60

MTD 14766

Pivot Bar - LH

$19.99

$

Usually ships in 3-6 days

0

MTD 14765

Pivot Bar - RH

$19.99

$

Usually ships in 3-6 days

0

61

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

62

MTD 732-0417A

Spring Lever

$

$

Not available

63

MTD 738-0507B

Shldr Screw .500 Dia x .434 Long

$4.49

$

In Stock, Qty 20+

0

64

MTD 736-0105

Bell Washer .380 x .880 x .062

$4.49

$

In Stock, Qty 20+

0

65

MTD 634-0020

Wheel 8 x 1.75 Disk Bar Grey

$39.99

$

In Stock, Qty 6

0

66

MTD 738-0102

Shldr Screw .498 x 1.445

$9.99

$

In Stock, Qty 10

0

67

MTD 720-0249

Hubcap: Euro Grey 3 1/2"
(Superseded to 920-0249)

$

$

Not available

MTD 731-0981A

Hubcap: Radial Spoke Grey 5"
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

68

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

69

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

70

MTD 732-0678

Torsion Spring R.H.

$8.49

$

Usually ships in 3-6 days

0

71

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (2 required)

$7.49

$

In Stock, only 3 left!

0

?72

MTD 710-0599

TT Screw

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

?73

MTD 751B224511

Flywheel Guard

Note: (Quantum/Intek); If Equipped

$

$

Not available

?74

MTD 710-1268

Hex Screw #10-16 x 0.375"

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

?75

MTD 751B224437

Muffler Guard

Note: (Quantum only); If Equipped

$

$

Not available
