12AVD6RQ719 - Black Max Walk-Behind Mower (2016) Axle Assembly Parts Diagram

Walk-Behind Mower

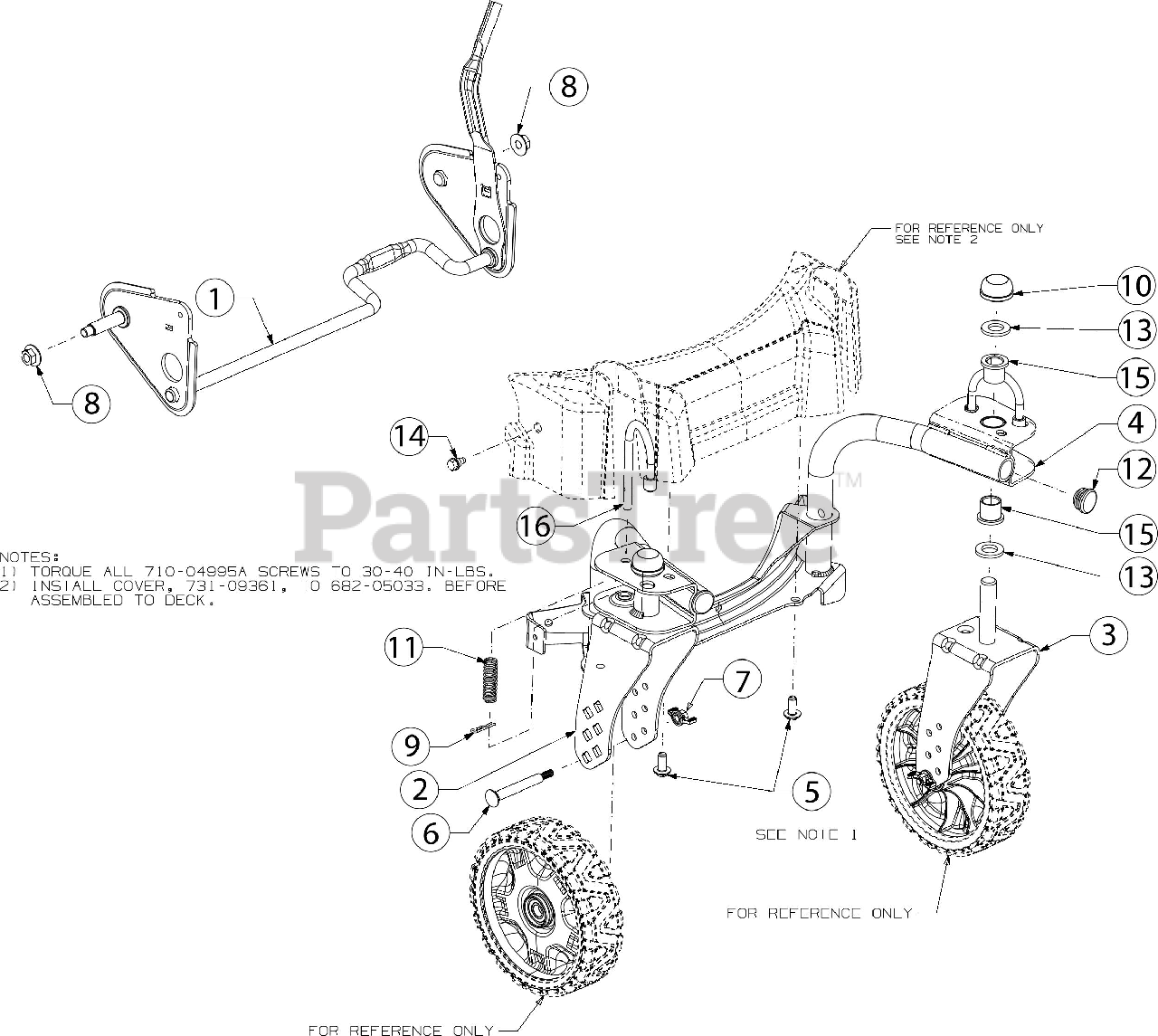

Axle Assembly Parts Diagram

  • Title

1

MTD 911-04192

HEIGHT AXLE ASSEMBLY
(Superseded to 611-04192A)

$57.99

$

Usually ships in 3-6 days

0

2

MTD 682-9024-0637

CASTER BRACKET ASSEMBLY (RH)
(Superseded to 682-9024A-0637)

$81.99

$

Usually ships in 3-6 days

0

3

MTD 682-9026-0637

WHEEL BRACKET ASSEMBLY (LH)
(Superseded to 682-9026A-0637)

$85.99

$

In Stock, only 1 left!

0

4

MTD 687-05033-0637

CASTER BRACKET ASSEMBLY

$148.99

$

Usually ships in 3-6 days

0

5

MTD 710-04995A

SCREW 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 911-1146

CASTER AXLE

$13.99

$

In Stock, Qty 11

0

7

MTD 712-0397A

WING NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

9

MTD 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

10

MTD 726-0214

PUSH CAP

$10.99

$

In Stock, Qty 5

0

11

MTD 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 2 left!

0

12

MTD 735-0246A

END PLUG

$5.99

$

In Stock, only 2 left!

0

13

MTD 736-0366

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

15

MTD 741-0685

BEARING:FLANGE .631 ID

$4.49

$

In Stock, Qty 20+

0

16

MTD 747-0924

LOCK PIN

$20.99

$

Usually ships in 3-6 days

0
