12AVD39Q897 - Columbia Walk-Behind Mower (2012) General Assembly 12AVD39Q897 Parts Diagram

Walk-Behind Mower

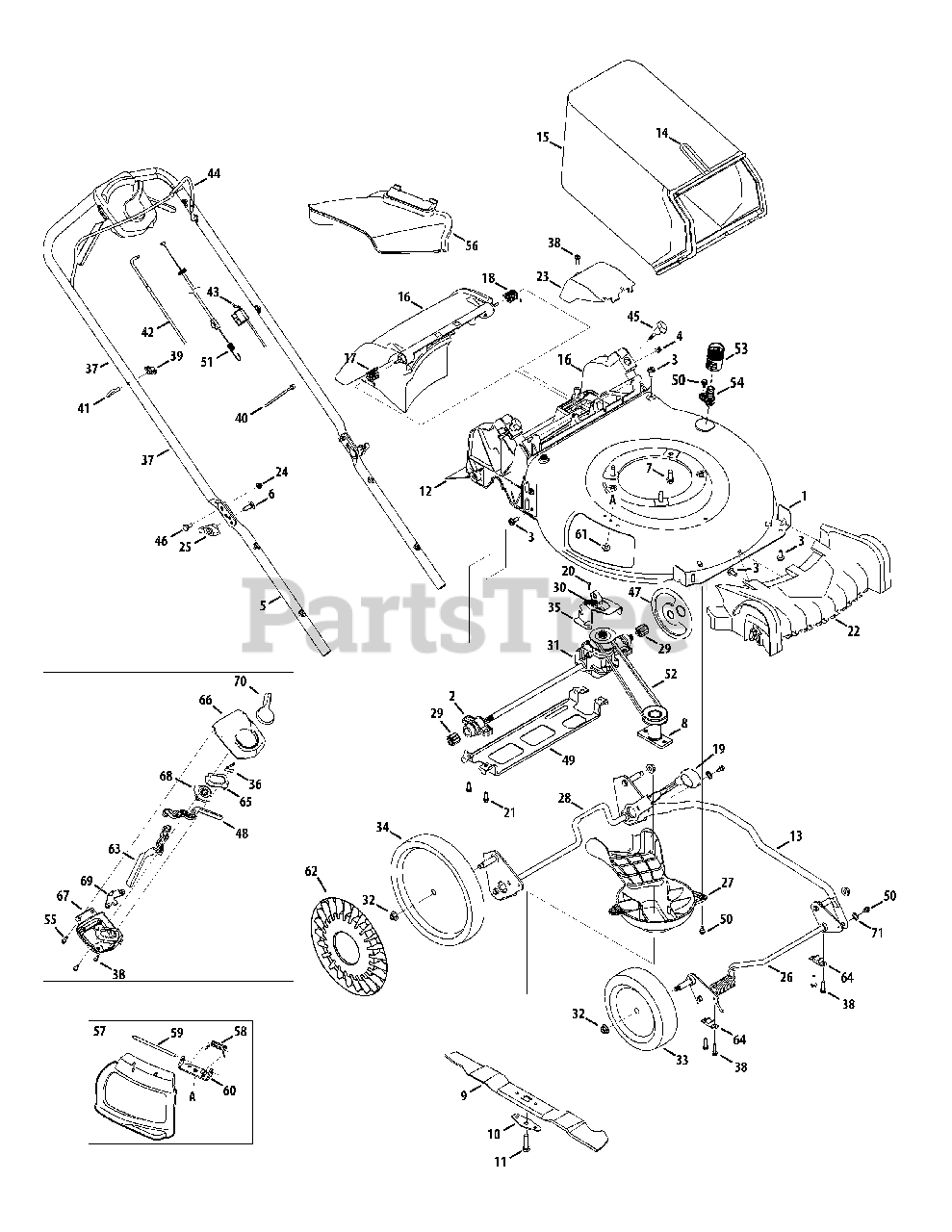

General Assembly 12AVD39Q897 Parts Diagram

  • Title

1

MTD 787-02002A-0606

21" Deck Ass’y
(Superseded to 787-02002B-0606)

$143.99

$

Usually ships in 3-6 days

0

2

MTD 631-04501A

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-04995A

Hex Hd. Cap Screw 5/16-14 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04222

Sq. Nut 1/4-20

$5.49

$

Usually ships in 3-6 days

0

5

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

6

MTD 710-04998

Carriage Bolt 5/16-18

$5.99

$

In Stock, only 2 left!

0

7

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

8

MTD 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

9

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

11

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8)

$3.99

$

In Stock, only 2 left!

0

12

MTD 731-07203

Trailing Shield 4.54 x 17.37

$10.99

$

In Stock, only 1 left!

0

13

MTD 949-04840

Cross Bracket

Variations

MTD 949-04840-0637

Tube Link - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

14

MTD 747-05362A-0637

Catcher Frame
(Superseded to 747-05362A)

$43.99

$

In Stock, Qty 18

0

15

MTD 964-04097B

Grasscatcher Bag

$39.99

$

In Stock, only 1 left!

0

16

MTD 631-04554A

Rear Baffle Ass'y (Incl. door)

$69.99

$

Usually ships in 3-6 days

0

17

MTD 732-04673

RH Torsion Spring
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

MTD 732-04674

LH Torsion Spring
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

19

MTD 720-04096

Knob (Black)

$6.49

$

In Stock, only 3 left!

0

20

MTD 710-04374

Sems TT Screw 1/4-20 x .50

$3.99

$

In Stock, Qty 12

0

21

MTD 710-04774

Screw 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

22

MTD 731-08057

Front Axle Cover

$33.99

$

Usually ships in 3-6 days

0

23

MTD 731-07799

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

24

MTD 712-04064

Flanged Lock Nut 1/4-20 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

25

MTD 720-04122

Wing Knob-Black

$6.99

$

In Stock, Qty 20+

0

26

MTD 911-04191

Front Axle Ass'y
(Superseded to 911-04191B)

$54.99

$

In Stock, only 3 left!

0

27

MTD 631-04512B

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

28

MTD 911-04192

Rear Axle Ass'y
(Superseded to 611-04192A)

$57.99

$

Usually ships in 3-6 days

0

29

MTD 917-04849

Spur Gear 9T

$4.99

$

In Stock, only 2 left!

0

30

MTD 732-04826A

Extension Spring 2.405

$3.99

$

In Stock, only 3 left!

0

31

MTD 918-04971

Transmission Ass'y
(Superseded to 918-04971A)

$

$

Not available

32

MTD 712-04217

Flange Locknut 3/8-16 Gr. F Ny lon

$4.49

$

In Stock, Qty 16

0

33

MTD 734-04630

Front Wheel

$

$

Not available

34

MTD 634-04699

Rear Wheel
(Superseded to 934-04699)

$44.99

$

In Stock, only 3 left!

0

35

MTD 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.99

$

In Stock, only 1 left!

0

36

MTD 732-0627A

Spring

$9.49

$

In Stock, only 4 left!

0

37

MTD 749-04701A-0637

Upper Handle - Black

$45.99

$

In Stock, only 1 left!

0

38

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

39

MTD 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

42

MTD 946-04726

Drive Cable

$29.99

$

Usually ships in 3-6 days

0

43

MTD 946-04670A

Control Cable (Honda)

$26.99

$

In Stock, only 3 left!

0

44

MTD 747-05463-0637

Blade Control (Black)
(Superseded to 747-05463A)

$23.99

$

Usually ships in 3-6 days

0

45

MTD 720-04123A

Knob 1/4-20 x 1.73 Black
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-04419A

Shoulder Screw .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

MTD 731-07731

Dust Cover
(Superseded to 731-07731C)

$9.99

$

In Stock, only 2 left!

0

48

MTD 731-07766

Control Lever LH

$6.99

$

Usually ships in 3-6 days

0

49

MTD 787-01915

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

50

MTD 738-04278

Shoulder Screw 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

51

MTD 946-04729

Speed Adjustment Cable

$29.99

$

Usually ships in 3-6 days

0

52

MTD 954-04282

V Belt

$28.99

$

In Stock, only 1 left!

0

53

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

54

MTD 731-07487

Deck Water Nozzle

$4.49

$

In Stock, only 1 left!

0

55

MTD 710-05204

Shoulder Screw 1/4-15 x .970

$3.99

$

In Stock, Qty 18

0

56

MTD 731-07131

Chute De flector

$15.99

$

In Stock, Qty 5

0

57

MTD 687-02531

Mulching Plug Ass'y (Incl. ref. no. 58-60)
(Superseded to 987-05206)

$30.99

$

Usually ships in 3-6 days

0

58

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

59

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

60

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

61

MTD 710-05073

Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

62

MTD 731-07875

Hub Cap

$10.99

$

In Stock, only 1 left!

0

63

MTD 731-07765

Control Le ver RH

$5.99

$

In Stock, only 1 left!

0

64

MTD 741-0492A

Bushing .505 Dia. x .62

$6.49

$

In Stock, Qty 9

0

65

MTD 787-01851

Cable Ad just Plate

$6.49

$

Usually ships in 3-6 days

0

66

MTD 731-07763

Upper Housing

$21.99

$

Usually ships in 3-6 days

0

67

MTD 731-07764A

Lower Housing

$18.99

$

Usually ships in 3-6 days

0

68

MTD 731-07804

Speed Adjust Actuator

$6.99

$

Usually ships in 3-6 days

0

69

MTD 731-07852

Drive Cable Actuator

$6.99

$

Usually ships in 3-6 days

0

70

MTD 731-07767A

Speed Select Lever

$6.99

$

Usually ships in 3-6 days

0

71

MTD 736-04413

Wave Washer

$3.99

$

In Stock, Qty 5

0
