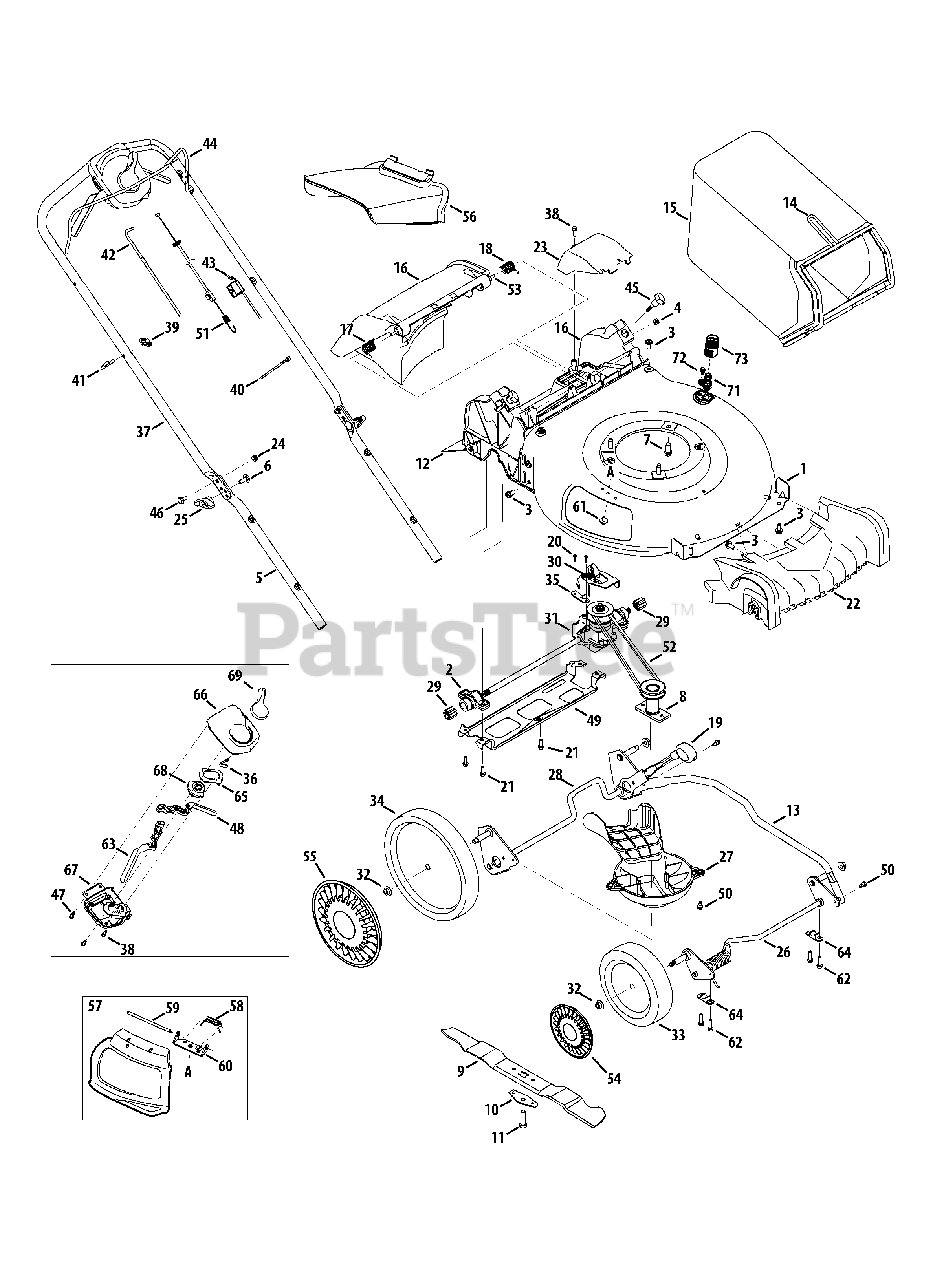

12AVD32Q704 - MTD Gold Walk-Behind Mower (2013) General Assembly Parts Diagram

Gold Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 787-01992A-0691

Deck, 21"
(Superseded to 787-01992B-0691)

$127.99

$

Usually ships in 3-6 days

0

2

MTD 631-04501A

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

5

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

6

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

7

MTD 710-04683A

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

8

MTD 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

9

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

11

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

12

MTD 731-07203

Trailing Shield

$10.99

$

In Stock, only 1 left!

0

13

MTD 949-04840-0637

Cross Bracket
(Superseded to 949-04840B-0637)

$38.99

$

Usually ships in 3-6 days

0

14

MTD 747-05362A-0637

Grass Catcher Frame
(Superseded to 747-05362A)

$43.99

$

In Stock, Qty 18

0

15

MTD 964-04097B

Grass Bag

$39.99

$

In Stock, only 1 left!

0

16

MTD 631-04553A

Rear Discharge Door Assembly

$81.99

$

Usually ships in 3-6 days

0

17

MTD 732-04673

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

MTD 732-04674

Torsion Spring - LH
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

19

MTD 720-04113

Adjustment Lever Knob, Red

$10.99

$

In Stock, only 2 left!

0

20

MTD 710-04374

Screw, .159 x .43 Hex Washer

$3.99

$

In Stock, Qty 12

0

21

MTD 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

22

MTD 731-08057

Front Cover

$33.99

$

Usually ships in 3-6 days

0

23

MTD 731-07799

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

24

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

MTD 720-04124

Wing Knob, Red

$4.99

$

In Stock, Qty 7

0

26

MTD 911-04191A

Front Axle Assembly
(Superseded to 911-04191B)

$54.99

$

In Stock, only 3 left!

0

27

MTD 631-04512A

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

28

MTD 911-04192

Rear Axle Assembly
(Superseded to 611-04192A)

$57.99

$

Usually ships in 3-6 days

0

29

MTD 917-04849

Spur Gear, 9T

$4.99

$

In Stock, only 2 left!

0

30

MTD 732-04826A

Exten. Spring, 2.675

$3.99

$

In Stock, only 3 left!

0

31

MTD 918-06000

Transmission Assembly

$148.99

$

In Stock, only 2 left!

0

32

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

33

MTD 634-04659

Front Wheel

$31.99

$

In Stock, Qty 5

0

34

MTD 934-04699

Rear Wheel

$44.99

$

In Stock, only 3 left!

0

35

MTD 787-01868A

Transmission Bracket
(Superseded to 787-01868B)

Variations

MTD 787-01868A-0637

Transmission Bracket - POWDER BLACK (0637)

$8.99

$

In Stock, only 1 left!

0

$7.49

$

Usually ships in 3-6 days

0

36

MTD 732-04937

Spring

$3.99

$

In Stock, only 1 left!

0

37

MTD 749-04701A

Upper Handle

Variations

MTD 749-04701A-0637

Upper Handle - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

$39.99

$

Usually ships in 3-6 days

0

38

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

39

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

42

MTD 946-04816

Drive Cable

$29.99

$

In Stock, only 2 left!

0

43

MTD 946-04670A

Control Cable (Honda)

$26.99

$

In Stock, only 3 left!

0

44

MTD 747-05330

Blade Control
(Superseded to 747-05330A)

Variations

MTD 747-05330-0637

BAIL-OPERATOR BLAC - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$17.99

$

Usually ships in 3-6 days

0

45

MTD 720-04127B

Wing Nut, Red
(Superseded to 720-05067A)

$5.99

$

In Stock, Qty 14

0

46

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

MTD 710-05204

Scr., Shldr, 1/4-15 x .970

$3.99

$

In Stock, Qty 18

0

48

MTD 731-08155A

Control Lever LH

$6.49

$

Usually ships in 3-6 days

0

49

MTD 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

50

MTD 738-04278

Scr., Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

51

MTD 946-04729

Speed Adjustment Cable

$29.99

$

Usually ships in 3-6 days

0

52

MTD 954-04282

V-Belt

$28.99

$

In Stock, only 1 left!

0

53

MTD 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 10

0

54

MTD 731-09429

Hubcap, Grey

$6.49

$

Usually ships in 3-6 days

0

55

MTD 731-07875

Hubcap, 11", Grey

$10.99

$

In Stock, only 1 left!

0

56

MTD 731-07486

Side Discharge Chute

$16.99

$

In Stock, Qty 5

0

57

MTD 987-02516

Mulch Plug (Incl. 58-60)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

58

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

59

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

60

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

61

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 18

0

63

MTD 731-08804

Control Lever RH

$8.49

$

Usually ships in 3-6 days

0

64

MTD 741-0492A

Bushing, Lock, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

65

MTD 787-01851

Cable Adjust Plate

$6.49

$

Usually ships in 3-6 days

0

66

MTD 731-08750

Upper Housing

$20.99

$

Usually ships in 3-6 days

0

67

MTD 731-07764A

Lower Housing

$18.99

$

Usually ships in 3-6 days

0

68

MTD 731-07804

Speed Adjust Actuator

$6.99

$

Usually ships in 3-6 days

0

69

MTD 731-08153

Speed Select Lever

$6.49

$

Usually ships in 3-6 days

0

71

MTD n/a

Water Nozzle

Note: (Not used on this model)

$

$

Currently unavailable

72

MTD n/a

Scr., Shldr., 1/4-20 x .50

Note: (Not used on this model)

$

$

Currently unavailable

73

MTD n/a

Water Nozzle Adapter

Note: (Not used on this model)

$

$

Currently unavailable
