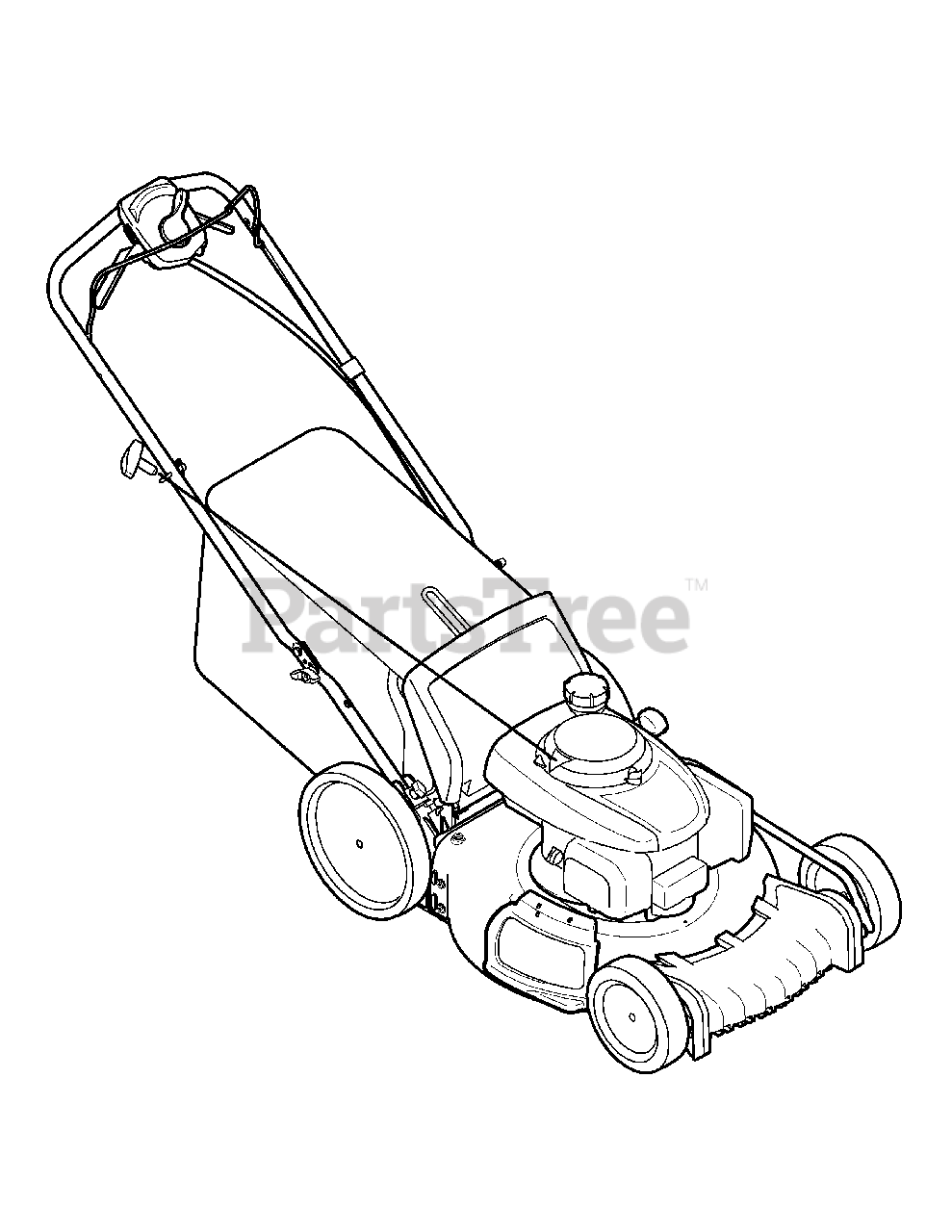

12AVD32Q704 - MTD Gold Walk-Behind Mower (2012) .Quick Reference 12AVD3X Parts Diagram

Gold Walk-Behind Mower

.Quick Reference 12AVD3X Parts Diagram

  • Title

MTD 490-250-0009

Spark Plug
(Superseded to FF-22)

$

$

Not available

Honda 17211-ZL8-023

Air Filter

$6.49

$

In Stock, Qty 20+

0

Honda 16952-ZA8-800

Fuel Filter

$8.99

$

In Stock, only 1 left!

0

Honda 17620-Z0J-800

Fuel Cap
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, only 2 left!

0

MTD 946-04670

Control Cable
(Superseded to 946-04670A)

$26.99

$

In Stock, only 3 left!

0

MTD 946-04726

Drive Cable

$29.99

$

Usually ships in 3-6 days

0

MTD 946-04729

Speed Adjustment Cable

$29.99

$

In Stock, only 1 left!

0

MTD 954-04282

Belt

$28.99

$

In Stock, only 3 left!

0

MTD 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

MTD 942-0741A

Blade

$29.99

$

In Stock, Qty 20+

0

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

MTD 710-1044

Blade Bolt

$3.99

$

Usually ships in 3-6 days

0

MTD 734-04568

Front Wheel

$27.99

$

Usually ships in 3-6 days

0

MTD 634-04699

Rear Wheel
(Superseded to 934-04699)

$44.99

$

In Stock, only 3 left!

0

MTD 731-07203

Trailshield

$10.99

$

In Stock, only 3 left!

0

MTD 731-07486

Discharge Chute

$16.99

$

In Stock, only 1 left!

0

MTD 987-02516

Mulch Plug
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

MTD 964-04097B

Grass Bag

$39.99

$

In Stock, only 1 left!

0

MTD 747-05362A-0637

Grass Bag Frame
(Superseded to 747-05362A)

$43.99

$

In Stock, Qty 18

0

MTD n/a

Key

$

$

Currently unavailable

MTD n/a

Key Switch

$

$

Currently unavailable

MTD n/a

Battery

$

$

Currently unavailable

MTD n/a

Battery Charger

$

$

Currently unavailable
