12AVC6RQ719 - Black Max Walk-Behind Mower (2015) General Assembly Parts Diagram

Walk-Behind Mower

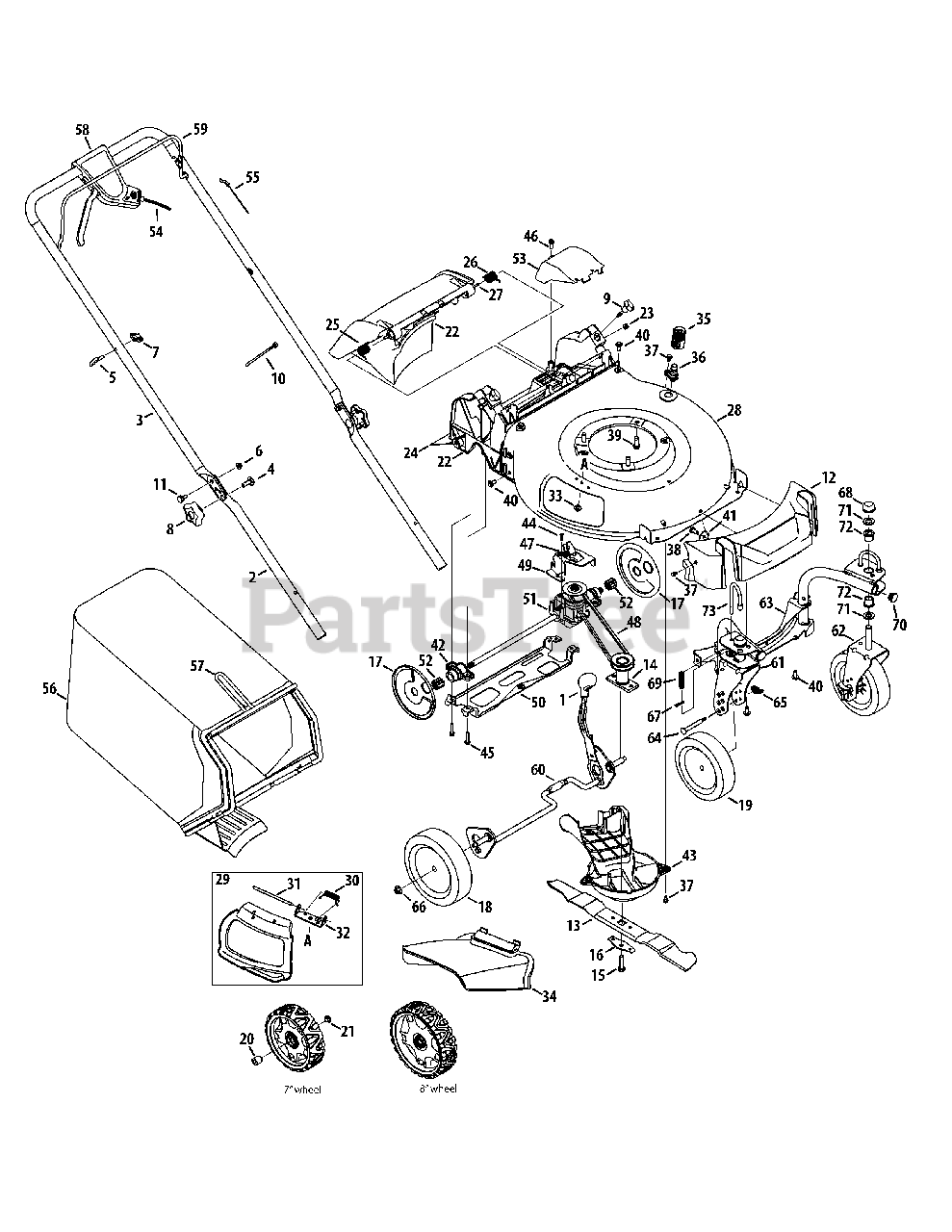

General Assembly Parts Diagram

  • Title

1

MTD 720-04096

Adjustment Lever Knob

$6.49

$

In Stock, only 3 left!

0

2

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 7

0

3

MTD 749-04679

Upper Handle
(Superseded to 749-04679D-0637)

Variations

MTD 749-04679-0637

HANDLE-UPPER SQZ G - POWDER BLACK (0637)

$46.99

$

In Stock, only 1 left!

0

$46.99

$

In Stock, only 1 left!

0

4

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, Qty 5

0

5

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

8

MTD 720-04072A

Wing Knob

$6.99

$

In Stock, Qty 20+

0

9

MTD 720-05066A

Wing Nut

$4.49

$

In Stock, only 1 left!

0

10

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

MTD 738-04419A

Shdr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 15

0

12

MTD 731-11064

Front Cover

$42.99

$

Usually ships in 3-6 days

0

13

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

14

MTD 687-02220

Blade Adapter

$38.99

$

In Stock, only 3 left!

0

15

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

16

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

17

MTD 731-07795

Wheel Dust Cover
(Superseded to 731-07795A)

$4.49

$

In Stock, only 1 left!

0

18

MTD 934-04714

Rear Wheel, 8 x 2

$42.99

$

In Stock, only 2 left!

0

19

MTD 634-04733

Front Wheel, 7 x 2

$40.99

$

In Stock, only 2 left!

0

20

MTD 750-06036

Caster Hub, Long
(Superseded to 750-06036A)

$4.49

$

In Stock, Qty 16

0

21

MTD 750-06065

Caster Hub, Short

$4.49

$

In Stock, Qty 17

0

22

MTD 631-04553A

Rear Discharge Door Assembly

$81.99

$

Usually ships in 3-6 days

0

23

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

24

MTD 731-07203

Trail Shield

$10.99

$

In Stock, only 2 left!

0

25

MTD 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

26

MTD 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

27

MTD 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 10

0

28

MTD 687-05069B-0638

21" Deck

$137.99

$

Usually ships in 3-6 days

0

29

MTD 987-02516A

Mulch Plug (Incl. 30-32)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

30

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

31

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

32

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

33

MTD 710-05073

Screw

$4.49

$

In Stock, Qty 20+

0

34

MTD 731-07131

Side Discharge Chute

$15.99

$

In Stock, Qty 5

0

35

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

36

MTD 731-07487

Water Nozzle

$4.49

$

In Stock, only 1 left!

0

37

MTD 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 11

0

38

MTD 710-04484

Self Tapping Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-04683C

Screw, tt, 3/8-16 x 1.00

$6.49

$

In Stock, Qty 5

0

40

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0362

Washer, Flat, .330 x 1.25 x .06

$4.49

$

In Stock, Qty 7

0

42

MTD 631-04501A

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

43

MTD 631-04512C

Engine Baffle
(Superseded to 631-04512D)

$21.99

$

In Stock, only 1 left!

0

44

MTD 710-04374

Screw, Hex Washer, .159 x .43

$3.99

$

In Stock, Qty 12

0

45

MTD 710-04774

Screw, 1/4-15 x 1.25

$4.99

$

Usually ships in 3-6 days

0

46

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

47

MTD 732-04826A

Exten. Spring, 2.405

$3.99

$

In Stock, only 3 left!

0

48

MTD 954-04282

V-Belt

$28.99

$

In Stock, only 3 left!

0

49

MTD 787-01868A-0637

Transmission Bracket
(Superseded to 787-01868B-0637)

$8.99

$

In Stock, only 1 left!

0

50

MTD 787-01915A

Rear Support Bracket
(Superseded to 787-01915C)

$19.99

$

Usually ships in 3-6 days

0

51

MTD 918-06038

Transmission Assembly

$157.99

$

In Stock, only 1 left!

0

52

MTD 917-04852

Spur Gear, 10T

$4.99

$

In Stock, only 2 left!

0

53

MTD 731-08175

Transmission Cover

$11.99

$

Usually ships in 3-6 days

0

54

MTD 946-05048

Variable Speed Cable

$32.99

$

In Stock, only 2 left!

0

55

MTD 946-04661A

Control Cable (Honda)

$13.99

$

In Stock, only 4 left!

0

56

MTD 664-05071

Grass Bag (Honda)
(Superseded to 964-05071)

$56.99

$

In Stock, only 2 left!

0

57

MTD 747-05362A-0637

Grass Catcher Frame
(Superseded to 747-05362A)

$43.99

$

In Stock, Qty 18

0

58

MTD 753-06060A

Control Lever Assembly

$27.99

$

Usually ships in 3-6 days

0

58

MTD 710-04793

Screw

$3.99

$

Usually ships in 3-6 days

0

58

MTD 731-05873A

Lever, Engage

$12.99

$

In Stock, only 1 left!

0

58

MTD 731-07812

Squeeze Box cover

$7.49

$

Usually ships in 3-6 days

0

59

MTD 631-05291

Blade Control
(Superseded to 931-05291)

$37.99

$

Usually ships in 3-6 days

0

60

MTD 911-04189

Rear Axle Assembly
(Superseded to 611-04189A)

$55.99

$

Usually ships in 3-6 days

0

61

MTD 682-9024-0637

Caster Bracket Assembly, RH
(Superseded to 682-9024A-0637)

$81.99

$

Usually ships in 3-6 days

0

62

MTD 682-9026-0637

Caster Bracket Assembly, LH
(Superseded to 682-9026A-0637)

$85.99

$

In Stock, only 1 left!

0

63

MTD 687-05033-0637

Caster Bracket Assembly

$148.99

$

Usually ships in 3-6 days

0

64

MTD 911-1146

Caster Axle, .374 Dia. x 2.59

$13.99

$

In Stock, Qty 11

0

65

MTD 712-0397A

Wing Nut, 1/4-20 w/Bell Washer

$3.99

$

In Stock, Qty 20+

0

66

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

67

MTD 914-0104

Cotter Pin, .072 Dia. x 1.13 Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

68

MTD 726-0214

Push Cap, 5/8

$10.99

$

Usually ships in 3-6 days

0

69

MTD 932-0306A

Compr. Sprng., .531 OD x 1.75 Lg

$8.49

$

In Stock, only 4 left!

0

70

MTD 735-0246A

Plug

$5.99

$

In Stock, only 1 left!

0

71

MTD 736-0366

Flat Washer, .640 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

72

MTD 741-0685

Flange Bearing, .631 ID

$4.49

$

In Stock, Qty 20+

0

73

MTD 747-0924

Lock Pin: Front Wheel

$20.99

$

In Stock, only 1 left!

0
