12AVB2M7004 - MTD Gold Walk-Behind Mower (2012) General Assembly 12AXB2X Parts Diagram

Gold Walk-Behind Mower

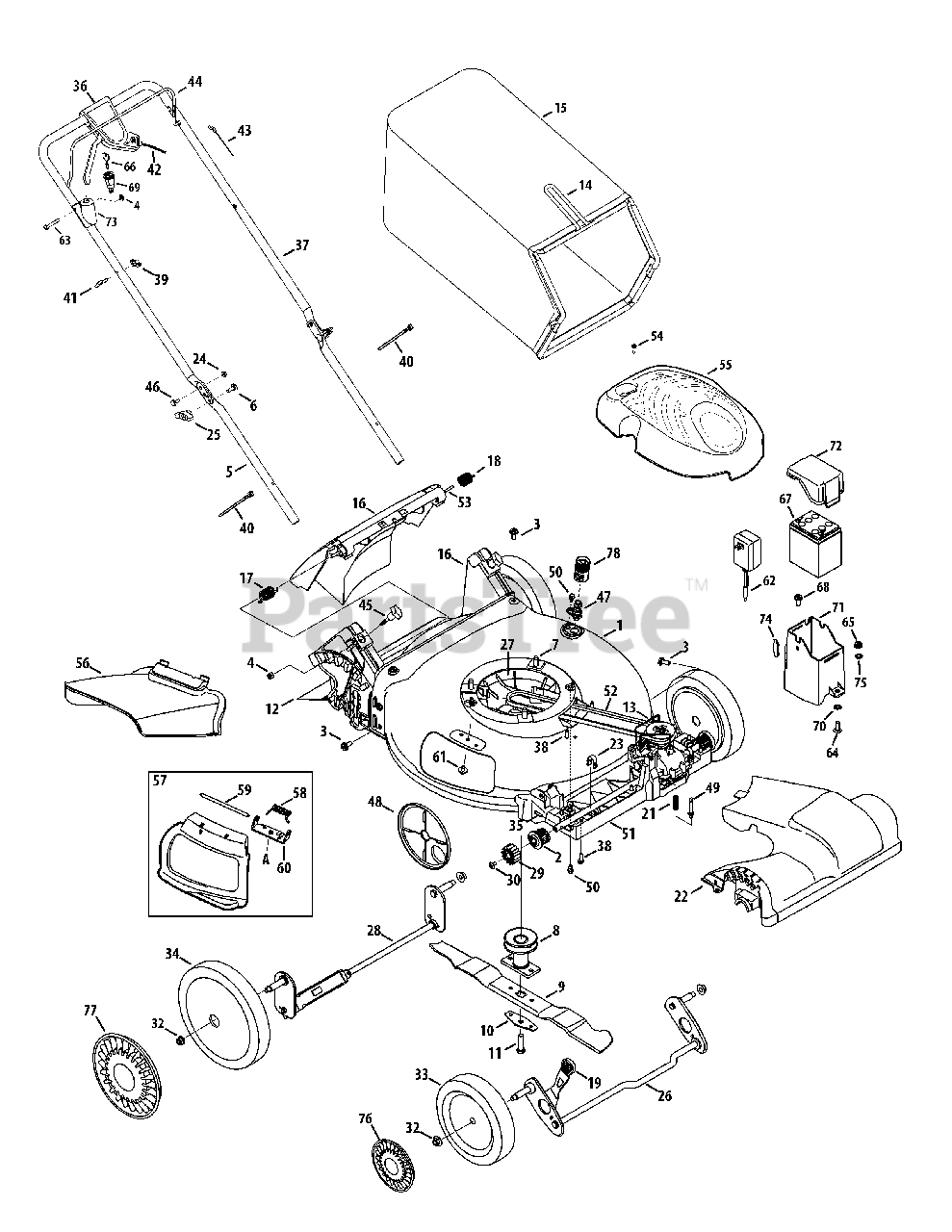

General Assembly 12AXB2X Parts Diagram

  • Title

1

MTD 787-01871-0691

Deck , 21"
(Superseded to 787-01871B-0691)

$127.99

$

Usually ships in 3-6 days

0

1

MTD 787-01872A-0691

Deck, 21"
(Superseded to 787-01872C-0691)

Note: 12AGB2JA004 Only

$143.99

$

Usually ships in 3-6 days

0

2

MTD 941-00019

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-04995

Screw, 5/16-14 x .750
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

5

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 7

0

6

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, Qty 5

0

7

MTD 710-0654A

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

8

MTD 987-02527

Blade Adapter

$36.99

$

In Stock, only 1 left!

0

8

MTD 687-02528

Blade Adapter

Note: (Briggs engine only)

$39.99

$

In Stock, Qty 20+

0

9

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

11

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

12

MTD 731-07203

Trailing Shield

$10.99

$

In Stock, only 2 left!

0

13

MTD 732-04675A

Transmission Wire
(Superseded to 732-04675B)

$3.99

$

In Stock, Qty 20+

0

14

MTD 747-05226

Grass Catcher Frame
(Superseded to 647-04271-0637)

Variations

MTD 747-05226-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 20+

0

$41.99

$

In Stock, Qty 20+

0

15

MTD 764-04082A

Grass Bag
(Superseded to 764-04082D)

$46.99

$

In Stock, only 1 left!

0

16

MTD 631-04369A

Rear Discharge Door Assembly
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

17

MTD 732-04673

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

MTD 732-04674

Torsion Spring - LH
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

19

MTD 720-04131A

Adjustment Lever Knob

$6.49

$

In Stock, only 1 left!

0

20

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-04704

Compression Spring

$4.49

$

In Stock, Qty 20+

0

22

MTD 731-07797

Front Cover
(Superseded to 731-07797A)

$32.99

$

In Stock, only 1 left!

0

23

MTD 787-01793

Front Axle Clip

$4.49

$

In Stock, Qty 18

0

24

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

MTD 720-04124

Wing Knob

$4.99

$

In Stock, Qty 7

0

26

MTD 911-04150

Front Axle Assembly

$45.99

$

In Stock, only 1 left!

0

27

MTD 931-04535A

Engine Baffle
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

28

MTD 911-04144A

Rear Axle Assembly
(Superseded to 911-04144B)

$36.99

$

Usually ships in 3-6 days

0

29

MTD 917-04801

Spur Gear, 14T - RH

$9.99

$

In Stock, only 2 left!

0

29

MTD 917-04802

Spur Gear, 14T - LH

$9.49

$

In Stock, only 4 left!

0

30

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

31

MTD 918-04881A

Transmission Assembly
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

32

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 17

0

33

MTD 734-2042A

Front Wheel

$38.99

$

In Stock, Qty 12

0

34

MTD 634-04630

Rear Wheel
(Superseded to 634-05062)

$42.99

$

In Stock, only 1 left!

0

35

MTD 715-04099

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

36

MTD 753-06060

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

Usually ships in 3-6 days

0

37

MTD 749-04679-0637

Upper Handle
(Superseded to 749-04679D-0637)

$46.99

$

In Stock, only 1 left!

0

38

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

39

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

42

MTD 946-04655A

Drive Cable

$24.99

$

In Stock, only 2 left!

0

43

MTD 946-04703

Control Cable
(Superseded to 946-04703A)

Note: (5P70M0B or 5P70M0C engines)

$21.99

$

In Stock, only 3 left!

0

43

MTD 946-04661

Control Cable
(Superseded to 946-04661A)

Note: (Briggs engine)

$13.99

$

In Stock, only 4 left!

0

43

MTD 946-1130

Control Cable

Note: (2P70M engine) 40.00" Lg

$17.99

$

In Stock, Qty 7

0

44

MTD 747-05209A

Blade Control

Variations

MTD 747-05209A-0637

Operator Bail, Square - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

45

MTD 720-04127A

Wing Nut
(Superseded to 720-05067A)

$5.99

$

In Stock, Qty 14

0

46

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 15

0

47

MTD 731-07487

Water Nozzle

$4.49

$

In Stock, only 1 left!

0

48

MTD 731-07240A

Wheel Dust Cover

$6.49

$

In Stock, Qty 6

0

49

MTD 731-07355

Spring Body

$5.99

$

Usually ships in 3-6 days

0

50

MTD 738-04278

Screw., Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

51

MTD 731-07789

Lower Tray
(Superseded to 731-07789A)

$33.99

$

In Stock, only 1 left!

0

52

MTD 954-04260

V-Belt

$28.99

$

In Stock, Qty 20+

0

53

MTD 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 10

0

54

MTD 710-04744

Screw, #12-16 x 1.00

Note: If Equipped

$5.49

$

In Stock, Qty 11

0

55

MTD 931-04471

Engine Shroud, Oyster Gray

Note: If Equipped

$42.99

$

Usually ships in 3-6 days

0

56

MTD 731-07486

Side Discharge Chute

$16.99

$

In Stock, Qty 5

0

57

MTD 987-02516

Mulch Plug (Incl. 58-60)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

58

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

59

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

60

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

61

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

62

MTD 725-04329

Battery Charger
(Superseded to 725-06121B)

Note: If Equipped

$47.99

$

In Stock, Qty 11

0

63

MTD 710-0136

Screw, 1/4-20 x 1.75

Note: If Equipped

$3.99

$

In Stock, Qty 20+

0

64

MTD 710-0276

Bolt, Carr., 5/16-18 x 1.00

Note: If Equipped

$3.99

$

In Stock, Qty 20+

0

65

MTD 912-0429

Nut, Hexlk, 5/16-18
(Superseded to 712-0429)

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

66

MTD 925-0201

Key

Note: If Equipped

$9.49

$

In Stock, only 1 left!

0

67

MTD 725-04903

Battery
(Superseded to 725P04903)

Note: If Equipped

$112.99

$

Usually ships in 3-6 days

0

68

MTD 738-04431A

Screw., Sldr., 5/16-14 x .972

Note: If Equipped

$3.99

$

Usually ships in 3-6 days

0

69

MTD 725-05112

Key Switch

Note: If Equipped

$35.99

$

Usually ships in 3-6 days

0

70

MTD 726-0201

Speed Nut

Note: If Equipped

$6.99

$

In Stock, only 2 left!

0

71

MTD 731-07135

Battery Housing

Note: If Equipped

$14.99

$

Usually ships in 3-6 days

0

72

MTD 731-07154

Battery Housing Top
(Superseded to 731-07154A)

Note: If Equipped

$8.99

$

Usually ships in 3-6 days

0

73

MTD 731-07155

Electric Start Housing

Note: If Equipped

$10.99

$

In Stock, only 1 left!

0

74

MTD 735-04213A

Lid Seal
(Superseded to 735-04213C)

Note: If Equipped

$4.99

$

In Stock, only 2 left!

0

75

MTD 736-0242

Washer, Bell, .340 x .872 x .080

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

76

MTD 731-07001

Hubcap, Grey

$5.49

$

In Stock, only 2 left!

0

77

MTD 731-07875

Hubcap, 11", Grey

$10.99

$

In Stock, only 1 left!

0

78

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

MTD 725-05015

Wire Harness
(Superseded to 925-06140B)

Note: (Not Shown) If Equipped

$59.99

$

In Stock, only 2 left!

0
