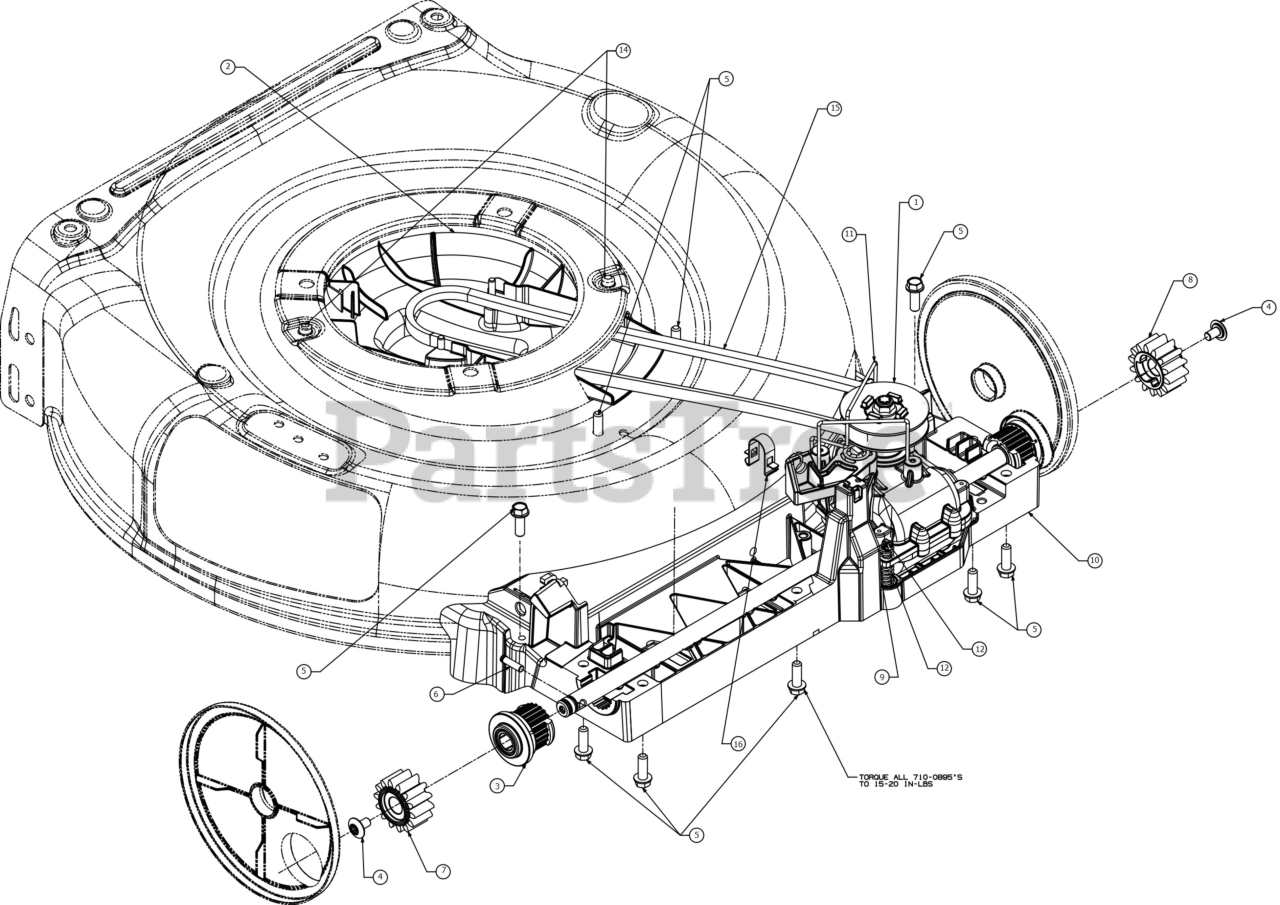

12AVB2M5345 - Yard Machines Walk-Behind Mower (2017) Drive Parts Diagram

Walk-Behind Mower

Drive Parts Diagram

  • Title

1

MTD 918-04881A

FORWARD TRANSMISSION ASSEMBLY
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

2

MTD 931-04535B

ENGINE BAFFLE ASSEMBLY
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

3

MTD 941-00019

SPHERICAL BEARING ASSEMBLY

$6.99

$

In Stock, only 2 left!

0

4

MTD 710-04531

SCREW 1/4-20 X .39

$5.49

$

In Stock, Qty 20+

0

5

MTD 710-0895

SCREW 1/4-15 X .750

$6.49

$

Usually ships in 3-6 days

0

6

MTD 715-04099

DOWEL PIN

$4.49

$

In Stock, only 2 left!

0

7

MTD 917-04801

SPUR GEAR 14T R

$9.99

$

In Stock, only 2 left!

0

8

MTD 917-04802

SPUR GEAR 14T L

$9.49

$

In Stock, only 4 left!

0

9

MTD 731-07355

SPRING COMPRESSION

$5.99

$

Usually ships in 3-6 days

0

10

MTD 731-07789

LOWER TRAY
(Superseded to 731-07789A)

$33.99

$

Usually ships in 3-6 days

0

11

MTD 732-04675A

TRANSMISSION WIRE
(Superseded to 732-04675B)

$3.99

$

In Stock, only 4 left!

0

12

MTD 732-04704

COMPRESSION SPRING

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-04502

SHOULDER SCREW 1/4-20 X .50

$4.49

$

In Stock, Qty 15

0

15

MTD 954-04260

V-BELT 3L X 34.18

$28.99

$

In Stock, Qty 20+

0

16

MTD 787-01793

FRONT AXLE CLIP

$4.49

$

In Stock, Qty 10

0
