12AVB29Q897 - Columbia 21" Walk-Behind Mower (2012) General Assembly 12AVB29Q897 Parts Diagram

21" Walk-Behind Mower

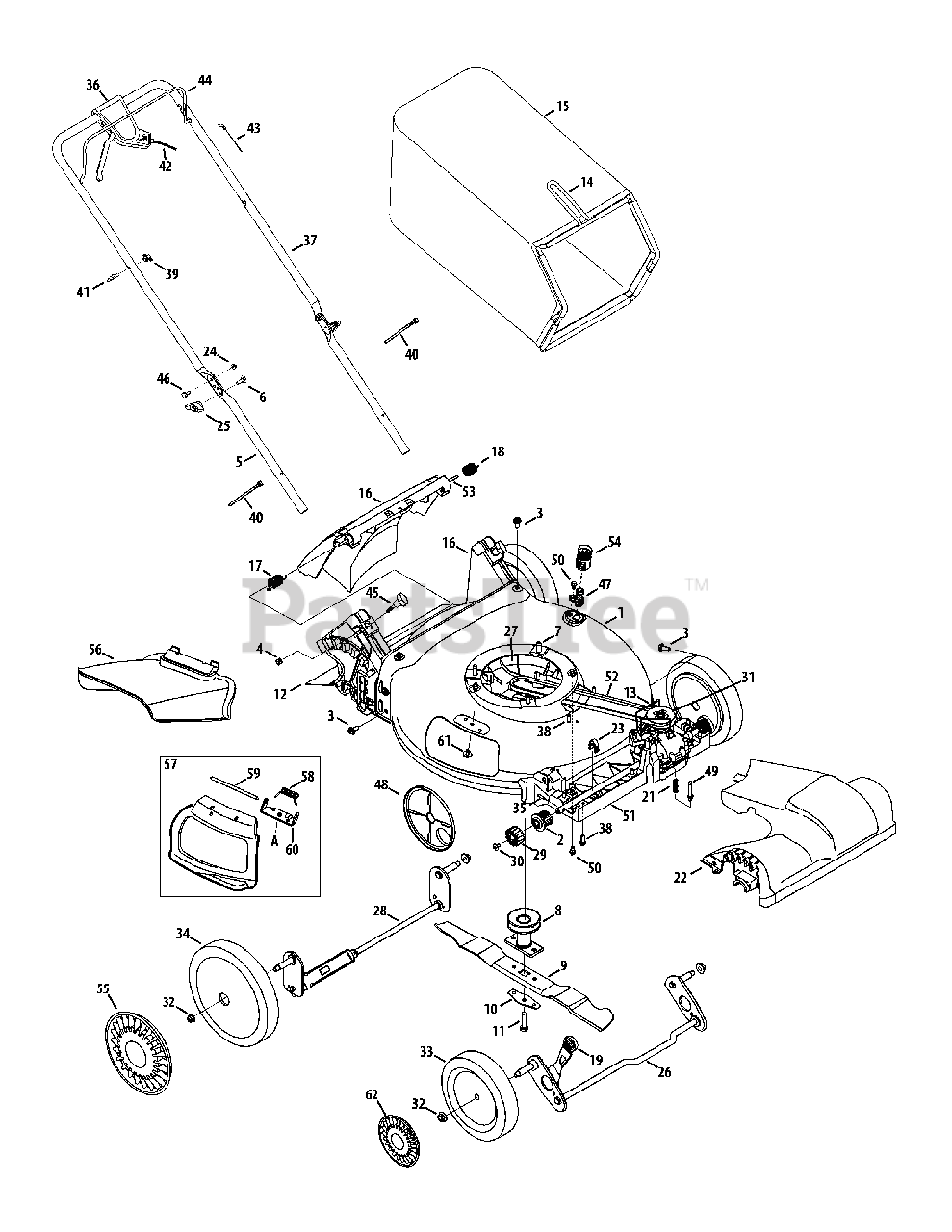

General Assembly 12AVB29Q897 Parts Diagram

  • Title

1

MTD 787-01872B-0606

21" Deck Ass’y (w/ side dis. w/nozzle)
(Superseded to 787-01872C-0606)

$143.99

$

Usually ships in 3-6 days

0

2

MTD 941-00019

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-04995A

Hex Hd. Cap Screw 5/16-14 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04222

Sq. Nut 1/4-20

$5.49

$

In Stock, only 2 left!

0

5

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 4 left!

0

6

MTD 710-04998

Car riage Bolt 5/16-18

$5.99

$

In Stock, only 2 left!

0

7

MTD 710-04683

Hex Wash HD Tap Scr 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

8

MTD 687-02528

Blade Adapter

$39.99

$

In Stock, Qty 20+

0

9

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

11

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8)

$3.99

$

In Stock, Qty 8

0

12

MTD 731-07203

Trailing Shield 4.54 x 17.37

$10.99

$

In Stock, Qty 6

0

13

MTD 732-04675A

Wire
(Superseded to 732-04675B)

$3.99

$

In Stock, Qty 20+

0

14

MTD 747-05226

Catcher Frame
(Superseded to 647-04271-0637)

Variations

MTD 747-05226-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 20+

0

$41.99

$

In Stock, Qty 20+

0

15

MTD 764-04082A

Grassbag, Black Dust Block ing
(Superseded to 764-04082D)

$46.99

$

In Stock, only 1 left!

0

16

MTD 631-04389A

Rear Baf fle Ass'y (Incl. door)

$66.99

$

Usually ships in 3-6 days

0

17

MTD 732-04673

RH Torsion Spring
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

MTD 732-04674

LH Torsion Spring
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

19

MTD 720-04130

Knob

$4.99

$

In Stock, only 1 left!

0

20

MTD 710-05073

Sems TT Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-04704

Compression Spring 1.320

$4.49

$

In Stock, Qty 20+

0

22

MTD 731-07797

Front Axle Cover
(Superseded to 731-07797A)

$32.99

$

In Stock, only 1 left!

0

23

MTD 787-01793

Axle Clip

$4.49

$

In Stock, Qty 18

0

24

MTD 712-04064

Flanged Lock Nut 1/4-20 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

25

MTD 720-04122

Wing Knob

$6.99

$

In Stock, Qty 20+

0

26

MTD 911-04150

Front Axle Ass'y - 8 " wheel

$45.99

$

In Stock, only 1 left!

0

27

MTD 931-04535A

Engine Baf fle Ass'y
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

28

MTD 911-04144A

Rear Axle Ass'y - 8" wheel
(Superseded to 911-04144B)

$36.99

$

In Stock, only 1 left!

0

29

MTD 917-04801

Spur Gear 14 T LH

$9.99

$

In Stock, only 2 left!

0

29

MTD 917-04802

Spur Gear 14 T RH

$9.49

$

In Stock, only 4 left!

0

30

MTD 710-04531

Screw 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

31

MTD 918-04881A

Transmission Ass'y
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

32

MTD 712-04217

Flange Locknut 3/8-16 Gr. F Ny lon

$4.49

$

In Stock, Qty 20+

0

33

MTD 734-2042A

Front Wheel

$38.99

$

In Stock, Qty 12

0

34

MTD 634-04630

Rear Wheel
(Superseded to 634-05062)

$42.99

$

In Stock, only 1 left!

0

35

MTD 715-04099

Dowel Pin 3/16 x 3/4

$4.49

$

In Stock, Qty 20+

0

36

MTD 753-06060

Control Lever Ass'y
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

37

MTD 749-04679-0637

Upper Handle - Black
(Superseded to 749-04679D-0637)

$46.99

$

In Stock, only 1 left!

0

38

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

39

MTD 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

42

MTD 946-04655A

Drive Cable

$24.99

$

In Stock, only 4 left!

0

43

MTD 946-04670

Control Cable
(Superseded to 946-04670A)

$26.99

$

In Stock, only 3 left!

0

44

MTD 747-05209A

Blade Control

Variations

MTD 747-05209A-0637

Operator Bail, Square - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

45

MTD 720-04123A

Knob 1/4-20 x 1.73 Black
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-04419A

Shoulder Screw .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

MTD 731-07487

Deck Water Nozzle

$4.49

$

In Stock, only 1 left!

0

48

MTD 731-07240A

Dust Cover

$6.49

$

In Stock, Qty 5

0

49

MTD 731-07355

Compression Spring Body

$5.99

$

Usually ships in 3-6 days

0

50

MTD 738-04278

Shoulder Screw 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

51

MTD 731-07789

Front SP Tray
(Superseded to 731-07789A)

$33.99

$

In Stock, only 1 left!

0

52

MTD 954-04260

V Belt

$28.99

$

In Stock, Qty 20+

0

53

MTD 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 11

0

54

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

55

MTD 731-07875

Hub Cap (11")

$10.99

$

In Stock, only 1 left!

0

56

MTD 731-07486

Chute Deflector

$16.99

$

In Stock, only 3 left!

0

57

MTD 687-02531

Mulching Plug Ass'y (Incl. ref. no. 58-60)
(Superseded to 987-05206)

$30.99

$

Usually ships in 3-6 days

0

58

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

59

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

60

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

61

MTD 710-05073

Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

62

MTD 731-07001

Hub Cap

$5.49

$

In Stock, only 2 left!

0
