12AVB29Q897 - Columbia 21" Walk-Behind Mower (2011) General Assembly 12AVB29Q Parts Diagram

21" Walk-Behind Mower

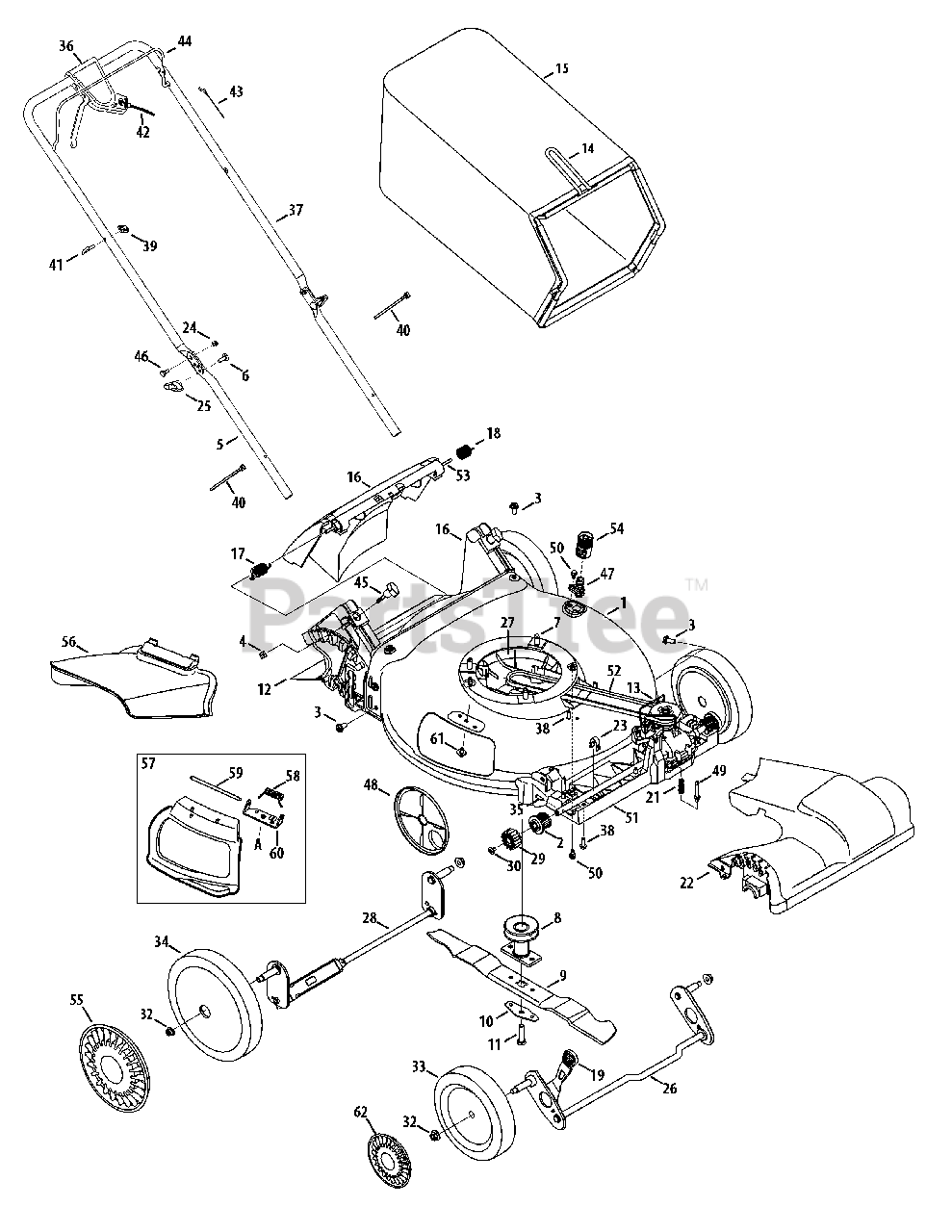

General Assembly 12AVB29Q Parts Diagram

  • Title

1

White Outdoor 787-01871

21" Deck Ass’y (w/ side discharge)
(Superseded to 787-01871A)

Variations

White Outdoor 787-01871-0638

DECK-21" 3 IN 1 - MTD/TROY-BILT RED (0638)

$127.99

$

In Stock, only 1 left!

0

White Outdoor 787-01871-0691

DECK-21" 3 IN 1 - BLACK JACK (0691)

$127.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01871-0709

DECK-21" 3 IN 1 - MASTERCRAFT GREEN (0709)

$

$

Not available

$102.99

$

Usually ships in 3-6 days

0

1

White Outdoor 787-01872A

21" Deck Ass’y (w/ side dis. w/nozzle)
(Superseded to 787-01872B)

Variations

White Outdoor 787-01872A-0638

Mower Deck, 21" 3-in-1 - MTD/TROY-BILT RED (0638)

$143.99

$

In Stock, only 1 left!

0

White Outdoor 787-01872A-0637

DECK-21" 3 IN 1 SP - POWDER BLACK (0637)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01872A-0691

DECK-21" 3 IN 1 SP - BLACK JACK (0691)

$143.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01872A-4044

DECK-21" 3 IN 1 SP - CRAFTSMAN RED (4044)

$143.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

1

White Outdoor 787-01876

21" Deck Ass’y (w/o side discharge)
(Superseded to 787-01876B)

Variations

White Outdoor 787-01876-0638

DECK-21" 2 IN 1 SP - MTD/TROY-BILT RED (0638)

$127.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01876-0709

DECK-21" SP - MASTERCRAFT GREEN (0709)

$110.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

2

White Outdoor 941-00019

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

3

White Outdoor 710-04995

Hex Hd. Cap Screw 5/16-14 x .75
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 712-04222

Sq. Nut 1/4-20

$5.49

$

Usually ships in 3-6 days

0

5

White Outdoor 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

6

White Outdoor 710-04998

Carriage Bolt 5/16-18

$5.99

$

In Stock, only 2 left!

0

7

White Outdoor 710-0654A

Hex Wash HD Tap Screw 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 687-02528

Blade Adapter

$39.99

$

In Stock, Qty 20+

0

9

White Outdoor 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

11

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8)

$3.99

$

In Stock, only 2 left!

0

12

White Outdoor 731-07203

Trailing Shield 4.54 x 17.37

$10.99

$

In Stock, only 1 left!

0

13

White Outdoor 732-04675A

Wire
(Superseded to 732-04675B)

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 747-05226-0637

Catcher Frame
(Superseded to 647-04271-0637)

$41.99

$

In Stock, Qty 20+

0

15

White Outdoor 964-04116A

Grasscatcher Bag, Black
(Superseded to 964-04116C)

$51.99

$

Usually ships in 3-6 days

0

15

White Outdoor 764-04082A

Grassbag, Black Dust Blocking
(Superseded to 764-04082D)

$46.99

$

In Stock, only 1 left!

0

16

White Outdoor 631-04389A

Rear Baffle Ass'y (Incl. door)

$66.99

$

Usually ships in 3-6 days

0

17

White Outdoor 732-04673

RH Torsion Spring
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

White Outdoor 732-04674

LH Torsion Spring
(Superseded to 732-04674A)

$4.49

$

In Stock, only 2 left!

0

19

White Outdoor 720-04130

Knob

$4.99

$

In Stock, only 1 left!

0

20

White Outdoor 710-05073

Sems TT Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 732-04704

Compression Spring 1.320

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 731-07797

Front Axle Cover
(Superseded to 731-07797A)

$32.99

$

In Stock, only 1 left!

0

23

White Outdoor 787-01793

Axle Clip

$4.49

$

In Stock, Qty 18

0

24

White Outdoor 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 720-04122

Wing Knob

$6.99

$

In Stock, Qty 20+

0

26

White Outdoor 911-04150

Front Axle Ass'y - 8 " wheel

$45.99

$

In Stock, only 1 left!

0

27

White Outdoor 931-04535A

Engine Baffle Ass'y
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

28

White Outdoor 911-04144A

Rear Axle Ass'y - 8" wheel
(Superseded to 911-04144B)

$36.99

$

Usually ships in 3-6 days

0

29

White Outdoor 917-04801

Spur Gear 14 T LH

$9.99

$

In Stock, only 2 left!

0

29

White Outdoor 917-04802

Spur Gear 14 T RH

$9.49

$

In Stock, only 4 left!

0

30

White Outdoor 710-04531

Screw 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

31

White Outdoor 918-04881A

Transmission Ass'y
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

32

White Outdoor 712-04217

Flange Locknut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 16

0

33

White Outdoor 734-2042A

Front Wheel

$38.99

$

In Stock, Qty 12

0

34

White Outdoor 634-04630

Rear Wheel
(Superseded to 634-05062)

$42.99

$

In Stock, only 1 left!

0

35

White Outdoor 715-04099

Dowel Pin 3/16 x 3/4

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 753-06060

Control Lever Ass'y
(Superseded to 753-06060A)

$27.99

$

Usually ships in 3-6 days

0

37

White Outdoor 749-04679-0637

Upper Handle - Black
(Superseded to 749-04679D-0637)

$46.99

$

In Stock, only 1 left!

0

38

White Outdoor 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

39

White Outdoor 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 946-04655A

Drive Cable

$24.99

$

In Stock, only 2 left!

0

43

White Outdoor 946-04670

Control Cable
(Superseded to 946-04670A)

$26.99

$

In Stock, only 3 left!

0

44

White Outdoor 747-05209A

Blade Control

Variations

White Outdoor 747-05209A-0637

Operator Bail, Square - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

45

White Outdoor 720-04123A

Knob 1/4-20 x 1.73 Black
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 738-04419A

Shoulder Screw .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 731-07487

Deck Water nozzle

$4.49

$

In Stock, only 1 left!

0

48

White Outdoor 731-07240A

Dust Cover

$6.49

$

In Stock, Qty 5

0

49

White Outdoor 731-07355

Compression Spring Body

$5.99

$

Usually ships in 3-6 days

0

50

White Outdoor 738-04278

Shoulder Screw 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

51

White Outdoor 731-07789

Front SP Tray
(Superseded to 731-07789A)

$33.99

$

In Stock, only 1 left!

0

52

White Outdoor 954-04260

V Belt

$28.99

$

In Stock, Qty 20+

0

53

White Outdoor 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 10

0

54

White Outdoor 921-04041

Water nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

55

White Outdoor 731-07875

Hub Cap (11")

$10.99

$

In Stock, only 1 left!

0

56

White Outdoor 731-07486

Chute Deflector

$16.99

$

In Stock, Qty 5

0

57

White Outdoor 687-02531

Mulching Plug Ass'y (Incl. ref. no. 58-60)
(Superseded to 987-05206)

$30.99

$

Usually ships in 3-6 days

0

58

White Outdoor 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

59

White Outdoor 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

61

White Outdoor 710-05073

Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 731-07001

Hub Cap

$5.49

$

In Stock, only 2 left!

0
