12AV839Q795 - MTD Pro Walk-Behind Mower (2007) General Assembly Parts Diagram

Pro Walk-Behind Mower

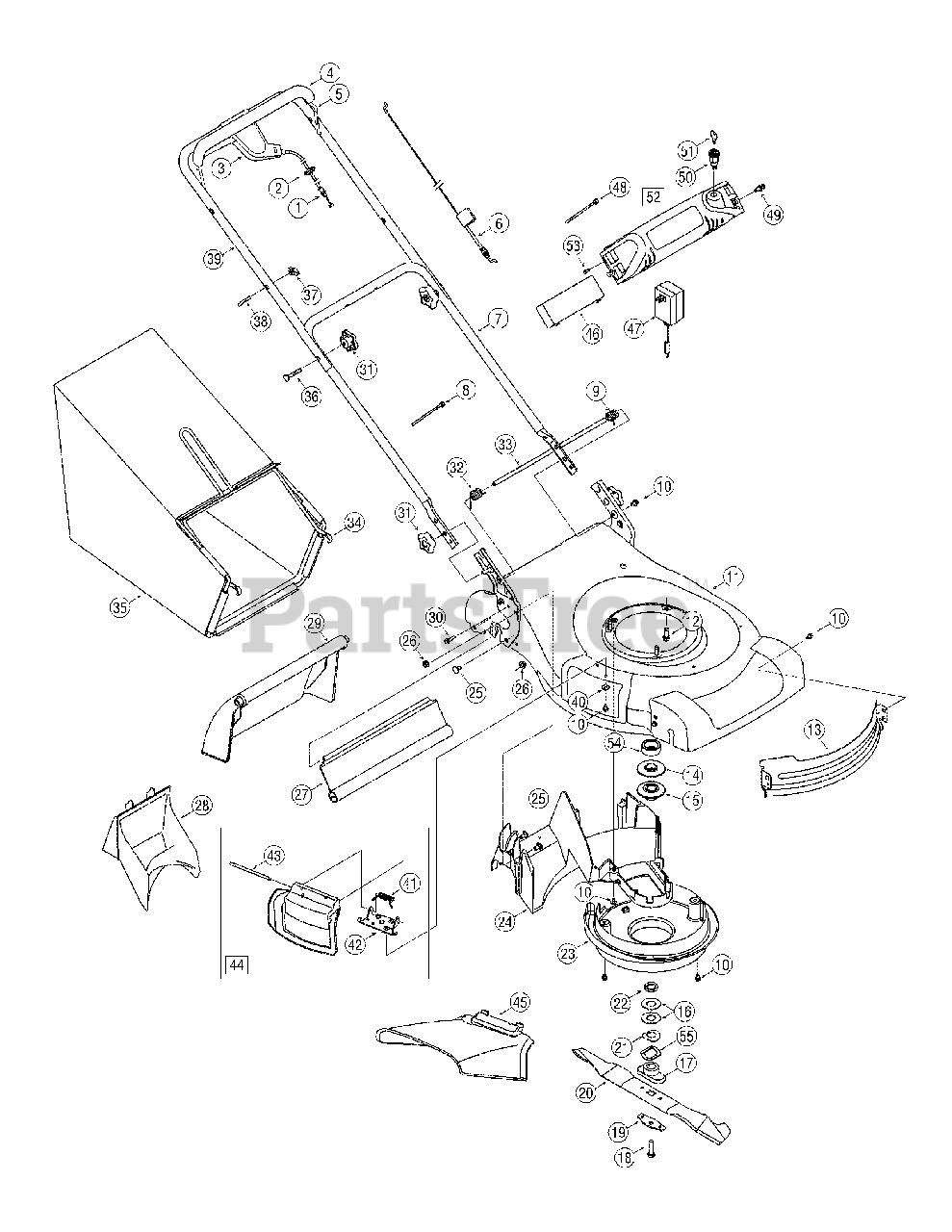

General Assembly Parts Diagram

  • Title

1

MTD 946-04265A

Drive Cable

$40.99

$

In Stock, only 1 left!

0

2

MTD 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

MTD 753-06060A

Drive Control Assembly

$27.99

$

In Stock, only 1 left!

0

4

MTD 731-04859

Bail Cover

$11.99

$

Usually ships in 3-6 days

0

5

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

6

MTD 946-04213

Control Cable

$25.99

$

In Stock, only 1 left!

0

7

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

9

MTD 732-04265

Torsion Spring, LH

$10.99

$

Usually ships in 3-6 days

0

10

MTD 710-0896

TT Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

11

MTD 787-01591

21-inch Deck

Variations

MTD 787-01591-0638

DECK-RD 21" ECON W - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01591-0650

No Longer Available DECK-RD 21 - RED METALLIC (0650)

$

$

Not available

MTD 787-01591-0691

DECK-RD 21" ECON W - BLACK JACK (0691)

$

$

Not available

$160.99

$

Usually ships in 3-6 days

0

12

MTD 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

13

MTD 987-01790

Front Deck Baffle
(Superseded to 987-01834)

$47.99

$

In Stock, only 1 left!

0

14

MTD 956-04157B

Upper Engine Pulley

$17.99

$

In Stock, only 1 left!

0

14

MTD 756-04273

Upper Engine Pulley

$

$

Not available

15

MTD 956-04156B

Lower Engine Pulley

$

$

Not available

15

MTD 756-04272

Lower Engine Pulley

$

$

Not available

16

MTD 936-0514

Flat Wash., .885 x 1.850 x .060
(Superseded to 736-0514)

$

$

Not available

17

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 5

0

17

MTD 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

18

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 7

0

19

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

20

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

21

MTD 936-0513

Sprg Washer, .890 x 1.70 x .048

$

$

Not available

22

MTD 950-1071

Sleeve Spacer, .88 x 1.13 x .12

$4.49

$

In Stock, Qty 5

0

22

MTD 750-04818

Slv. Spcr., 25mm x 1.375 x .375

$5.99

$

Usually ships in 3-6 days

0

23

MTD 731-05903

Engine Baffle

$

$

Not available

24

MTD 731-05463A

Deck Baffle

$

$

Not available

25

MTD 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-3025

Hex Cap Screw, 5/16-18 x .625 GR5

$3.99

$

In Stock, Qty 8

0

26

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 731-05462A

Trailshield

$22.99

$

In Stock, only 1 left!

0

27

MTD 710-1268

Screw, Hex Washer Hd. Tapp #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

28

MTD 731-05157

Mulch Plug

$32.99

$

In Stock, only 3 left!

0

29

MTD 931-05017A

Rear Door

$

$

Not available

30

MTD 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

31

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

32

MTD 732-04264

Torsion Spring, RH

$10.99

$

In Stock, only 1 left!

0

33

MTD 711-04374

Door Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

34

MTD 647-04051B-0637

Grass Catcher Frame

$

$

Not available

35

MTD 664-04052A

Grass Catcher - Gray

$97.99

$

Usually ships in 3-6 days

0

35

MTD 964-04046A

Grass Catcher - Black

$

$

Not available

36

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

37

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 2 left!

0

39

MTD 749-04209

Upper Handle
(Superseded to 749-04209B-0637)

Variations

MTD 749-04209-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

39

MTD 749-04206

Upper Handle

Variations

MTD 749-04206-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

41

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

42

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

43

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

44

MTD 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 8

0

45

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

46

MTD 925-04323

12 Volt Battery
(Superseded to 753-10804)

$114.99

$

In Stock, only 3 left!

0

47

MTD 725-04329

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 13

0

48

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

49

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 15

0

50

MTD 925-04347

Key Switch

$33.99

$

Usually ships in 3-6 days

0

51

MTD 925-0201

Key

$9.49

$

In Stock, only 1 left!

0

52

MTD 925-04072

Electric Starter Harness Ass’y.

$99.99

$

Usually ships in 3-6 days

0

53

MTD 710-1667A

Screw, #10-16 x .750

$4.49

$

In Stock, Qty 13

0

54

MTD 750-04825

Sleeve Spacer

$

$

Not available

55

MTD 936-0447

Washer, Wave, 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0
