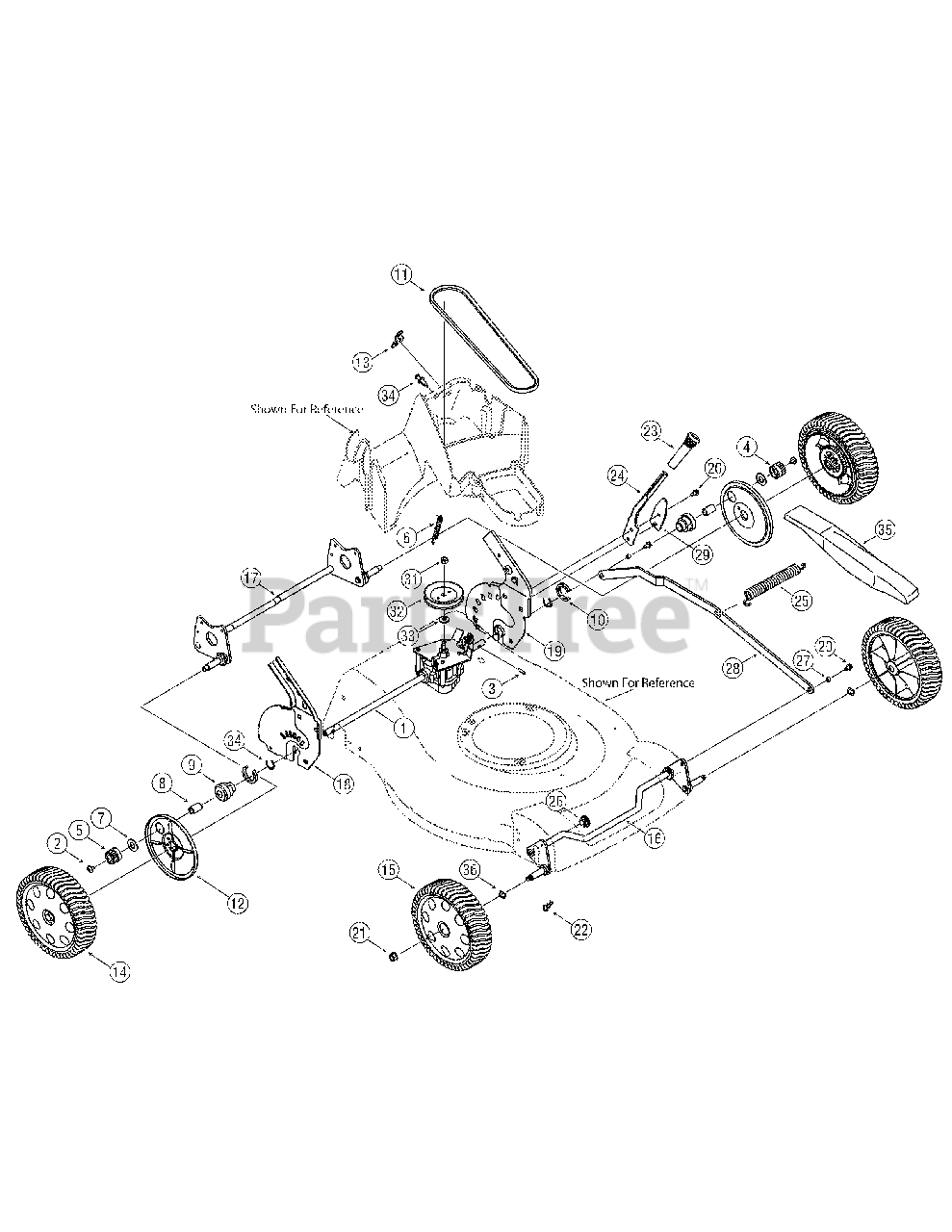

12AV839N711 - Troy-Bilt Walk-Behind Mower (2005) Drive Parts Diagram

Walk-Behind Mower

Drive Parts Diagram

  • Title

1

Troy-Bilt 618-04229A

Transmission Assembly
(Superseded to 753-05351)

$178.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04223

Screw, M6 x 1.0

$4.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

4

Troy-Bilt 717-04184A

Spur Gear, 14T - LH
(Superseded to 917-04184C)

$9.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 717-04192A

Spur Gear, 14T - RH
(Superseded to 917-04192C)

$7.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 732-0409

Extension Spring, .38 OD x 3.24
(Superseded to 932-0409)

$

$

Not available

7

Troy-Bilt 736-3084

Flat Washer, .51 x 1.120 x .062

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 741-0710

Sleeve Bearing, .502 x .627 x 1.00

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 748-04073B

Transmission Bearing Support
(Superseded to 748-04073C)

$28.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 750-04317

Clip Spacer

$4.49

$

In Stock, Qty 5

0

11

Troy-Bilt 754-04093

V-Belt
(Superseded to 954-04093)

$21.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 782-7551A

Wheel Dust Cover

$5.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 787-01262

Transmission Cable Bracket

$6.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 634-04207

Rear Wheel
(Superseded to 753-08092)

$44.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 734-04033

Front Wheel
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

16

Troy-Bilt 687-02133

Front Bracket Assembly

Variations

Troy-Bilt 687-02133-0637

Front Bracket Assembly, Black - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

Troy-Bilt 687-02133-0638

Front Bracket Assembly, Black - MTD/TROY-BILT RED (0638)

$67.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 687-02134

Rear Bracket Assembly
(Superseded to 753-05953)

Variations

Troy-Bilt 687-02134-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 687-02134-0638

KIT-REPLACEMENT (6 - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

18

Troy-Bilt 687-02148

Handle Bracket Assembly -RH
(Superseded to 987-02148)

Variations

Troy-Bilt 687-02148-0637

BRACKET ASM-HNDL R - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 687-02148-0665

BRACKET ASM-HNDL R - YARDMAN GREEN (0665)

$

$

Not available

$

$

19

Troy-Bilt 687-02149

Handle Bracket Assembly -LH
(Superseded to 987-02149)

Variations

Troy-Bilt 687-02149-0637

BRACKET ASM-HNDL L - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 687-02149-0665

BRACKET ASM-HNDL L - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

Troy-Bilt 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 714-04023

Cotter Pin

$4.49

$

In Stock, only 4 left!

0

23

Troy-Bilt 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

24

MTD 732-04261

Spring Lever

$

$

Not available

25

Troy-Bilt 732-04271

Extension Spring, .500 ID x 6.85 Lg

$

$

Not available

26

Troy-Bilt 741-04136

Split Hex Flange Bearing
(Superseded to 741-04136B)

$4.99

$

In Stock, Qty 15

0

27

Troy-Bilt 750-04305

Spacer
(Superseded to 738-04278)

$6.99

$

In Stock, Qty 7

0

28

Troy-Bilt 787-01235

Cross Bracket
(Superseded to 787-01235A)

Variations

Troy-Bilt 787-01235-0637

BRACKET:CROSS - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 787-01235-0638

BRACKET:CROSS - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

Troy-Bilt 787-01251

Stop Bracket

$

$

Not available

30

Troy-Bilt 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

31

Troy-Bilt 712-0411

Hex Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 756-04151

Pulley, 3.36 OD
(Superseded to 956-04151)

$

$

Not available

33

Troy-Bilt 736-0105

Bell Washer, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 15

0

34

Troy-Bilt 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

35

Troy-Bilt 731-05237B

Spring Bracket Cover
(Superseded to 731-05237A)

$

$

Not available

36

Troy-Bilt 736-0504

Wave Washer, .510 x .750 x.017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0
