12AV834Q766 - Troy-Bilt Walk-Behind Mower (2006) Drive and Wheels Parts Diagram

Walk-Behind Mower

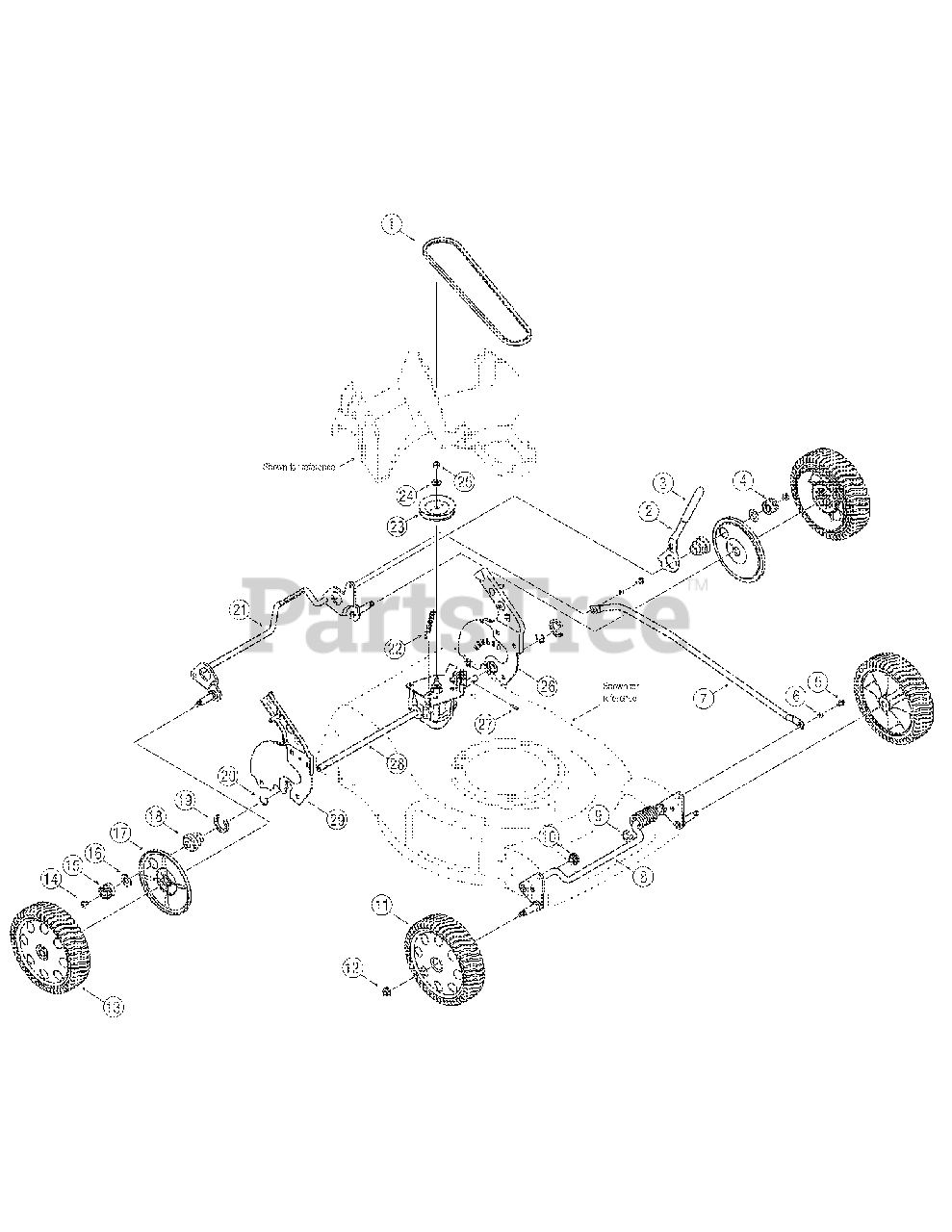

Drive and Wheels Parts Diagram

  • Title

1

Troy-Bilt 754-04093

V-Belt
(Superseded to 954-04093)

$21.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 732-04338

Spring Lever
(Superseded to 732-04338C)

$

$

Not available

3

Troy-Bilt 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 717-04184A

Spur Gear, 14T - LH
(Superseded to 917-04184C)

$9.49

$

In Stock, only 3 left!

0

5

Troy-Bilt 710-0599

TT Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 750-04305A

Spacer
(Superseded to 738-04278)

$6.99

$

In Stock, Qty 5

0

7

Troy-Bilt 749-04267

Cross Bracket
(Superseded to 749-04267A-0637)

Variations

Troy-Bilt 749-04267-0637

Cross Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

8

Troy-Bilt 687-02204

Front Bracket Assembly
(Superseded to 687-02204B)

Variations

Troy-Bilt 687-02204-0637

Front Bracket Assembly Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-05470

Clip Spacer

$4.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

12

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 634-04207C

Rear Wheel
(Superseded to 753-08092)

$44.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 717-04192A

Spur Gear, 14T - RH
(Superseded to 917-04192C)

$7.49

$

In Stock, only 3 left!

0

16

Troy-Bilt 736-3084

Flat Washer

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 782-7551A

Wheel Dust Cover

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 748-04073C

Transmission Bearing Support

$28.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 750-04317

Clip Spacer

$4.49

$

In Stock, Qty 5

0

20

Troy-Bilt 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

21

Troy-Bilt 687-02199

Rear Bracket Assembly
(Superseded to 753-05865)

Variations

Troy-Bilt 687-02199-0637

KIT-SERVICE REPLAC - POWDER BLACK (0637)

$118.99

$

In Stock, only 1 left!

0

$118.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 732-0320

Extension Spring
(Superseded to 932-0320)

$10.99

$

In Stock, Qty 6

0

23

Troy-Bilt 756-04151A

Pulley, 3.36 OD
(Superseded to 956-04151)

$

$

Not available

24

Troy-Bilt 736-0105

Bell Washer, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-0411

Hex Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 687-02205

Handle Bracket Assembly LH
(Superseded to 753-05861)

Variations

Troy-Bilt 687-02205-0637

KIT-SERVICE REPLAC - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 687-02205-0638

KIT-SERVICE REPLAC - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 618-04378

Transmission Assembly
(Superseded to 918-04378B)

$

$

Not available

29

Troy-Bilt 687-02206

Handle Bracket Assembly RH
(Superseded to 753-05862)

Variations

Troy-Bilt 687-02206-0637

BRACKET:ASM:HNDL RH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 687-02206-0638

BRACKET ASSEMBLY (RH) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
