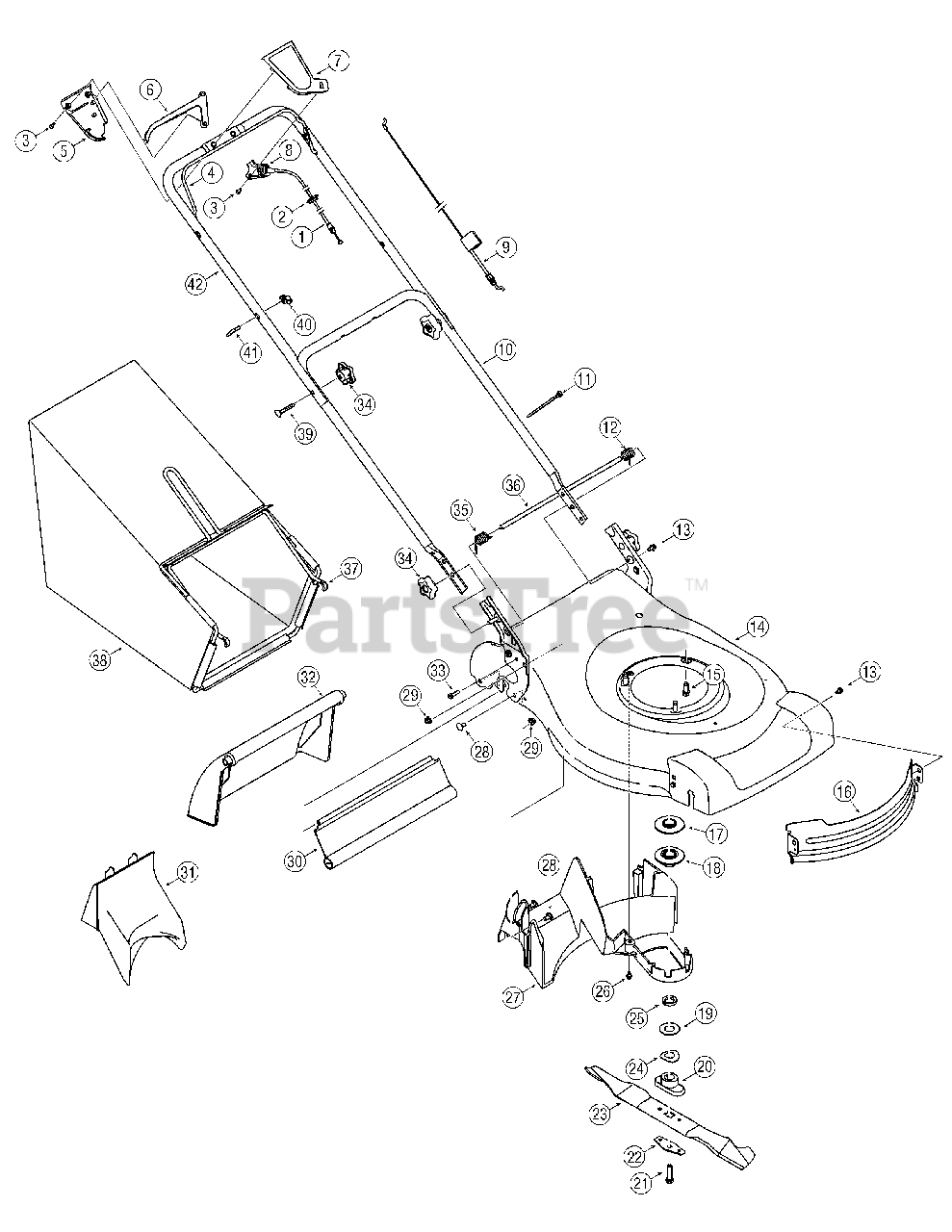

12AV829C755 - Yard-Man Walk-Behind Mower (2006) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 746-04265A

Drive Cable
(Superseded to 946-04265A)

$40.99

$

In Stock, only 1 left!

0

2

MTD 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

MTD 710-1667A

Screw, #10-16 x .750

$4.49

$

In Stock, Qty 13

0

4

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

5

MTD 731-05390

Lower Control Cover
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

6

MTD 731-05388

Drive Control Lever
(Superseded to 731-05873)

$12.99

$

Usually ships in 3-6 days

0

7

MTD 731-05389

Upper Control Cover
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

8

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

9

MTD 746-04213

Control Cable
(Superseded to 946-04213)

$25.99

$

In Stock, only 1 left!

0

10

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

12

MTD 732-04265

Torsion Spring, LH

$10.99

$

Usually ships in 3-6 days

0

13

MTD 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

14

MTD 787-01343

21-inch Deck

Variations

MTD 787-01343-0665

DECK:RD:21" 800 - YARDMAN GREEN (0665)

$

$

Not available

$

$

15

MTD 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

16

MTD 787-01346

Deck Baffle
(Superseded to 987-01834)

$47.99

$

In Stock, only 1 left!

0

17

MTD 756-04157B

Upper Engine Pulley
(Superseded to 956-04157B)

$17.99

$

In Stock, only 1 left!

0

18

MTD 756-04156B

Lower Engine Pulley
(Superseded to 956-04156B)

$

$

Not available

19

MTD 736-0514

Flat Washer, .885 x 1.850 x .060

$

$

Not available

20

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 5

0

21

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 7

0

22

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

23

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

24

MTD 736-0513

Spring Washer, .890 x 1.70 x .048
(Superseded to 936-0513)

$

$

Not available

25

MTD 750-1071

Sleeve Spacer
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

26

MTD 710-0653

TT Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

27

MTD 731-05463

Deck Baffle
(Superseded to 731-05463A)

$

$

Not available

28

MTD 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

30

MTD 731-05462

Trail shield
(Superseded to 731-05462A)

$22.99

$

In Stock, only 1 left!

0

31

MTD 731-05157

Mulch Plug

$32.99

$

In Stock, only 3 left!

0

32

MTD 731-05017A

Rear Door
(Superseded to 931-05017A)

$

$

Not available

33

MTD 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

34

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

35

MTD 732-04264

Torsion Spring, RH

$10.99

$

In Stock, only 1 left!

0

36

MTD 711-04374

Door Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

37

MTD 647-04051

Grass Catcher Frame
(Superseded to 647-04051B-0637)

Variations

MTD 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 664-04047

Grass Catcher
(Superseded to 964-04047)

$108.99

$

Usually ships in 3-6 days

0

39

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

40

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

41

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 2 left!

0

42

MTD 749-04206

Upper Handle

Variations

MTD 749-04206-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$
