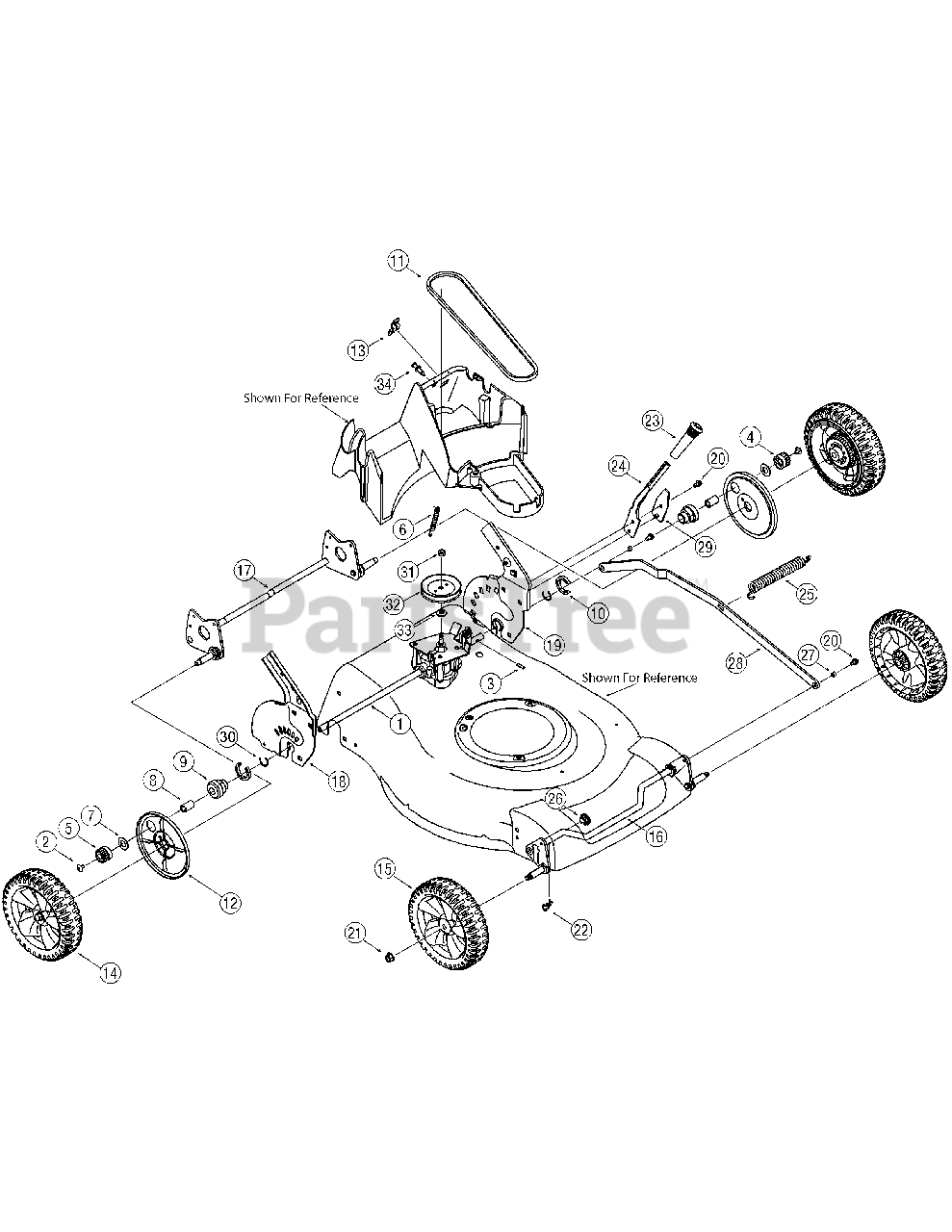

12AV829C755 - Yard-Man Walk-Behind Mower (2005) (Walmart) Drive & Wheels Parts Diagram

Walk-Behind Mower

Drive & Wheels Parts Diagram

  • Title

1

MTD 618-04229A

Transmission Assembly
(Superseded to 753-05351)

$178.99

$

Usually ships in 3-6 days

0

2

MTD 710-04223

Screw, M6 x 1.0

$4.99

$

In Stock, only 3 left!

0

3

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

4

MTD 717-04184A

Spur Gear, 14T - LH
(Superseded to 917-04184C)

$9.49

$

In Stock, only 3 left!

0

5

MTD 717-04192A

Spur Gear, 14T - RH
(Superseded to 917-04192C)

$7.49

$

In Stock, only 3 left!

0

6

MTD 732-0409

Extension Spring, .38 OD x 3.24
(Superseded to 932-0409)

$

$

Not available

7

MTD 736-3084

Flat Washer, .51 x 1.120 x .062

$4.99

$

In Stock, Qty 20+

0

8

MTD 741-0710

Sleeve Bearing, .502 x .627 x 1.00

$6.49

$

Usually ships in 3-6 days

0

9

MTD 748-04073B

Transmission Bearing Support
(Superseded to 748-04073C)

$28.99

$

In Stock, only 1 left!

0

10

MTD 750-04317

Clip Spacer

$4.49

$

In Stock, Qty 5

0

11

MTD 754-04093

V-Belt
(Superseded to 954-04093)

$21.99

$

In Stock, only 1 left!

0

12

MTD 782-7551A

Wheel Dust Cover

$5.49

$

In Stock, Qty 20+

0

13

MTD 787-01262

Transmission Cable Bracket

$6.49

$

Usually ships in 3-6 days

0

14

MTD 634-04213

Rear Wheel
(Superseded to 634-04363)

$50.99

$

Usually ships in 3-6 days

0

15

MTD 734-04087

Front Wheel

$27.99

$

In Stock, Qty 5

0

16

MTD 687-02133

Front Bracket Assembly

Variations

MTD 687-02133-0637

Front Bracket Assembly, Black - POWDER BLACK (0637)

$67.99

$

Usually ships in 3-6 days

0

MTD 687-02133-0638

Front Bracket Assembly, Black - MTD/TROY-BILT RED (0638)

$67.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

17

MTD 687-02134

Rear Bracket Assembly
(Superseded to 753-05953)

Variations

MTD 687-02134-0637

KIT-REPLACEMENT (6 - POWDER BLACK (0637)

$

$

Not available

MTD 687-02134-0638

KIT-REPLACEMENT (6 - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

18

MTD 687-02148

Handle Bracket Assembly - RH
(Superseded to 987-02148)

Variations

MTD 687-02148-0637

BRACKET ASM-HNDL R - POWDER BLACK (0637)

$

$

Not available

MTD 687-02148-0665

BRACKET ASM-HNDL R - YARDMAN GREEN (0665)

$

$

Not available

$

$

19

MTD 687-02149

Handle Bracket Assembly - LH
(Superseded to 987-02149)

Variations

MTD 687-02149-0637

BRACKET ASM-HNDL L - POWDER BLACK (0637)

$

$

Not available

MTD 687-02149-0665

BRACKET ASM-HNDL L - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

MTD 714-04023

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

23

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

24

MTD 732-04261

Spring Lever

$

$

Not available

25

MTD 732-04271

Extension Spring, .500 ID x 6.85 Lg

$

$

Not available

26

MTD 741-04136

Split Hex Flange Bearing
(Superseded to 741-04136B)

$4.99

$

In Stock, Qty 20+

0

27

MTD 750-04305

Spacer
(Superseded to 738-04278)

$6.99

$

In Stock, Qty 5

0

28

MTD 787-01235

Cross Bracket
(Superseded to 787-01235A)

Variations

MTD 787-01235-0637

BRACKET:CROSS - POWDER BLACK (0637)

$

$

Not available

MTD 787-01235-0638

BRACKET:CROSS - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

29

MTD 787-01251

Stop Bracket

$

$

Not available

30

MTD 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

31

MTD 712-0411

Hex Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

32

MTD 756-04151

Pulley, 3.36 OD
(Superseded to 956-04151)

$

$

Not available

33

MTD 736-0105

Bell Washer, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

34

MTD 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 20+

0
