12AV569R004 - MTD Gold Walk-Behind Mower (2008) (Ace Hardware) General Assembly Parts Diagram

Gold Walk-Behind Mower

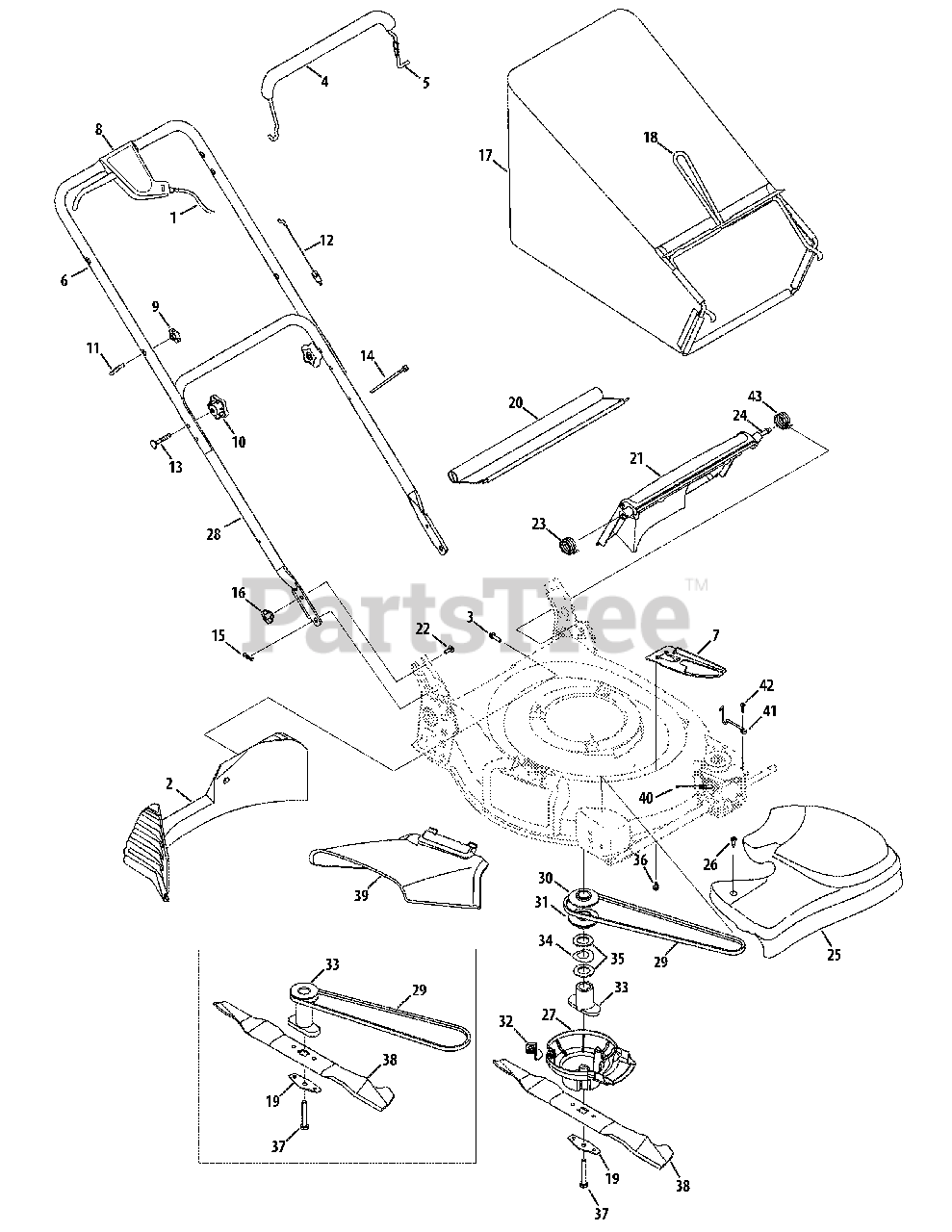

General Assembly Parts Diagram

  • Title

1

MTD 746-04206A

Variable Speed Cable
(Superseded to 946-04206A)

$27.99

$

In Stock, Qty 20+

0

2

MTD 731-04150C

Rear Baffle 22'' Rd.

$42.99

$

In Stock, only 2 left!

0

3

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

4

MTD 731-04204

Deluxe Bail Cover - Yellow

Note: (If Eqipped)

$11.99

$

In Stock, only 4 left!

0

4

MTD 731-2626

Deluxe Bail Cover - Gray

Note: (If Eqipped)

$11.99

$

In Stock, only 2 left!

0

5

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

6

MTD 749-04206A

Upper Handle
(Superseded to 749-04206B-0637)

Variations

MTD 749-04206A-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 787-01258A

Cable Mount Bracket

Variations

MTD 787-01258A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

8

MTD 753-05096A

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

9

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

10

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

11

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

12

MTD 746-1130

Control Cable - 40''
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 11

0

13

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

MTD 664-04027

Grassbag Assembly - Yardman
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

17

MTD 664-04007A

Brassbag Assembly - Black
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

18

MTD 747-04080A

Grassbag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

19

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

20

MTD 731-05642

Rear Trailing Shield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

21

MTD 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$28.99

$

Usually ships in 3-6 days

0

22

MTD 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 15

0

23

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

24

MTD 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

25

MTD 731-05021A

Transmission Cover - Yellow
(Superseded to 931-05021A)

$62.99

$

Usually ships in 3-6 days

0

25

MTD 731-05250

Transmission Cover - Gray
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

26

MTD 710-1650

Shoulder Screw, #12-24

$4.99

$

In Stock, Qty 20+

0

27

MTD 731-06029

Engine Baffle
(Superseded to 753-06116)

$16.99

$

In Stock, only 2 left!

0

28

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

29

MTD 754-04082A

V-Belt
(Superseded to 954-04082A)

$27.99

$

In Stock, Qty 7

0

30

MTD 756-04161

Upper Pulley Half, 25mm x 2.62
(Superseded to 956-04161)

Note: (Equipped with 25mm Blade Adapter)

$13.99

$

In Stock, only 1 left!

0

31

MTD 756-04160

Lower Pulley Half, 25.mm x 2.62
(Superseded to 956-04160)

Note: (Equipped with 25mm Blade Adapter)

$20.99

$

Usually ships in 3-6 days

0

32

MTD 787-01593

Baffle Bracket

$5.99

$

In Stock, Qty 5

0

33

MTD 748-04082

Blade Adapter, 25mm

$37.99

$

Usually ships in 3-6 days

0

MTD 748-04015A

Blade Adapter, One Piece
(Superseded to 948-04015A)

$65.99

$

In Stock, only 1 left!

0

34

MTD 736-0447

Spacer Washer

Note: (Equipped with 25mm Blade Adapter)

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0277

Flat Washer

Note: (Equipped with 25mm Blade Adapter)

$4.49

$

In Stock, only 1 left!

0

36

MTD 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-1257

Hex Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 2 left!

0

38

MTD 742-0741

21'' Muliching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

40

MTD 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

41

MTD 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

42

MTD 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

43

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0
