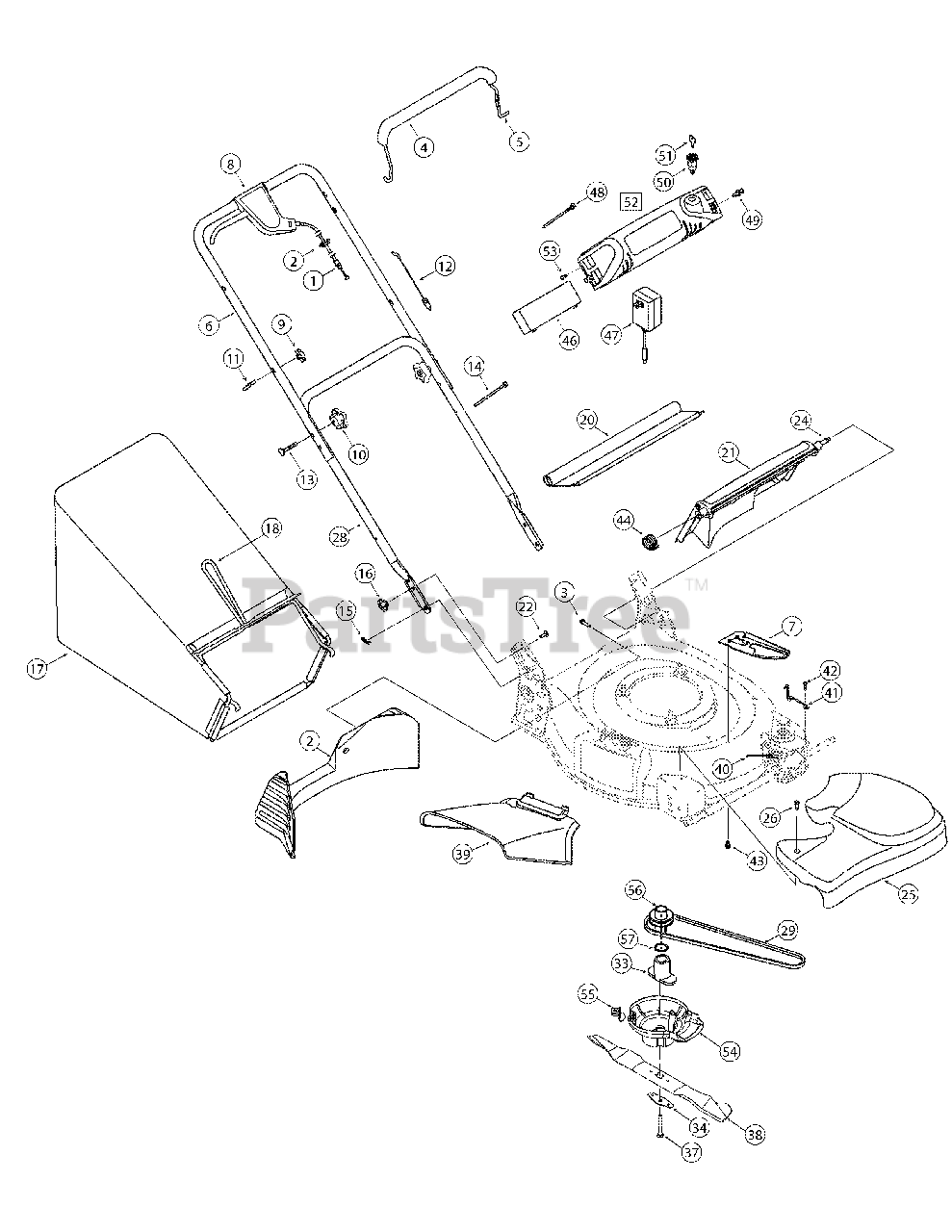

12AV569Q897 - Columbia 21" Walk-Behind Mower (2010) General Assembly Parts Diagram

21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

White Outdoor 946-04206A

Drive Cable

$27.99

$

In Stock, Qty 20+

0

2

White Outdoor 731-04150C

Rear Baffle 21" Rear Discharge

$42.99

$

In Stock, only 2 left!

0

3

White Outdoor 710-1241

Hex Lock Screw 1/4-15 x 1.0

$6.99

$

In Stock, Qty 18

0

4

White Outdoor 731-04859

Bail Cover - Grey

$11.99

$

Usually ships in 3-6 days

0

5

White Outdoor 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 1 left!

0

6

White Outdoor 749-04206B-0637

Upper Handle
(Superseded to 749-04206-0637)

$

$

Not available

7

White Outdoor 787-01258A-0637

Cable Mounting Bracket
(Superseded to 787-01258A)

$24.99

$

Usually ships in 3-6 days

0

8

White Outdoor 753-06060

Control Lever Ass'y
(Superseded to 753-06060A)

$27.99

$

Usually ships in 3-6 days

0

9

White Outdoor 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 720-04072A

Knob - Star 5/16-18

$6.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 946-0957

Control Cable 37.25" Lg.

$17.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

14

White Outdoor 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 964-04007A

Grass Bag -Generic

$130.99

$

In Stock, Qty 15

0

18

White Outdoor 747-04080A-0637

Grass Bag Frame
(Superseded to 747-04080A)

$59.99

$

In Stock, Qty 5

0

20

White Outdoor 731-05642

Trail Shield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

21

White Outdoor 731-06885

Rear Discharge Door

$

$

Not available

22

White Outdoor 710-0703

Carriage Bolt 1/4-10 x .75

$4.49

$

In Stock, Qty 15

0

24

White Outdoor 747-04588

Pivot Rod (w/12" rear wheels)

$17.99

$

Usually ships in 3-6 days

0

25

White Outdoor 931-05013A

Trans. Cover (Oyster Grey)

$52.99

$

Usually ships in 3-6 days

0

26

White Outdoor 710-1650

Shoulder Screw #12-24

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 2 left!

0

29

White Outdoor 954-04082A

V-Belt

$27.99

$

In Stock, Qty 7

0

30

White Outdoor 956-04161

Upper Pulley Half 25mm x 2.62

$13.99

$

In Stock, only 1 left!

0

31

White Outdoor 956-04160

Lower Pulley Half 25mm x 2.62

$20.99

$

Usually ships in 3-6 days

0

32

White Outdoor 750-04818

Sleeve Spacer 25 mm ID x 1.375 x .375

$5.99

$

Usually ships in 3-6 days

0

33

White Outdoor 748-04082

Blade Adapter

$37.99

$

Usually ships in 3-6 days

0

34

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

35

White Outdoor 936-0447

Space Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 736-0277

Flat Washer

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

38

White Outdoor 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

White Outdoor 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

40

White Outdoor 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

41

White Outdoor 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

43

White Outdoor 710-0896

Screw 1/4-14 x 0.625

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 732-04090A

Torsion Spring RH

$7.99

$

Usually ships in 3-6 days

0

46

White Outdoor 925-04323

12V Battery
(Superseded to 753-10804)

$114.99

$

In Stock, only 3 left!

0

47

White Outdoor 725-04329

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 11

0

48

725-0240

Cable Tie

$

$

Not available

49

White Outdoor 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 925-04347

Key Switch

$33.99

$

Usually ships in 3-6 days

0

51

White Outdoor 925-0201

Key

$9.49

$

In Stock, only 1 left!

0

52

White Outdoor 925-04072

Electric Starter Harness Ass'y

$99.99

$

Usually ships in 3-6 days

0

53

White Outdoor 710-1667A

Screw, #10-16 x .750

$4.49

$

In Stock, Qty 13

0

54

White Outdoor 753-06116

Engine Baffle

$16.99

$

Usually ships in 3-6 days

0

55

White Outdoor 787-01593

Bracket

$5.99

$

In Stock, Qty 5

0

56

White Outdoor 656-04045

Drive Pulley Ass'y
(Superseded to 656-04045A)

$25.99

$

Usually ships in 3-6 days

0

57

White Outdoor 736-04389

Wave Washer 1.35 x 1.05 x 0.015

$5.99

$

Usually ships in 3-6 days

0
