12AV569Q597 - Columbia 21" Walk-Behind Mower (2009) Drive Assembly Parts Diagram

21" Walk-Behind Mower

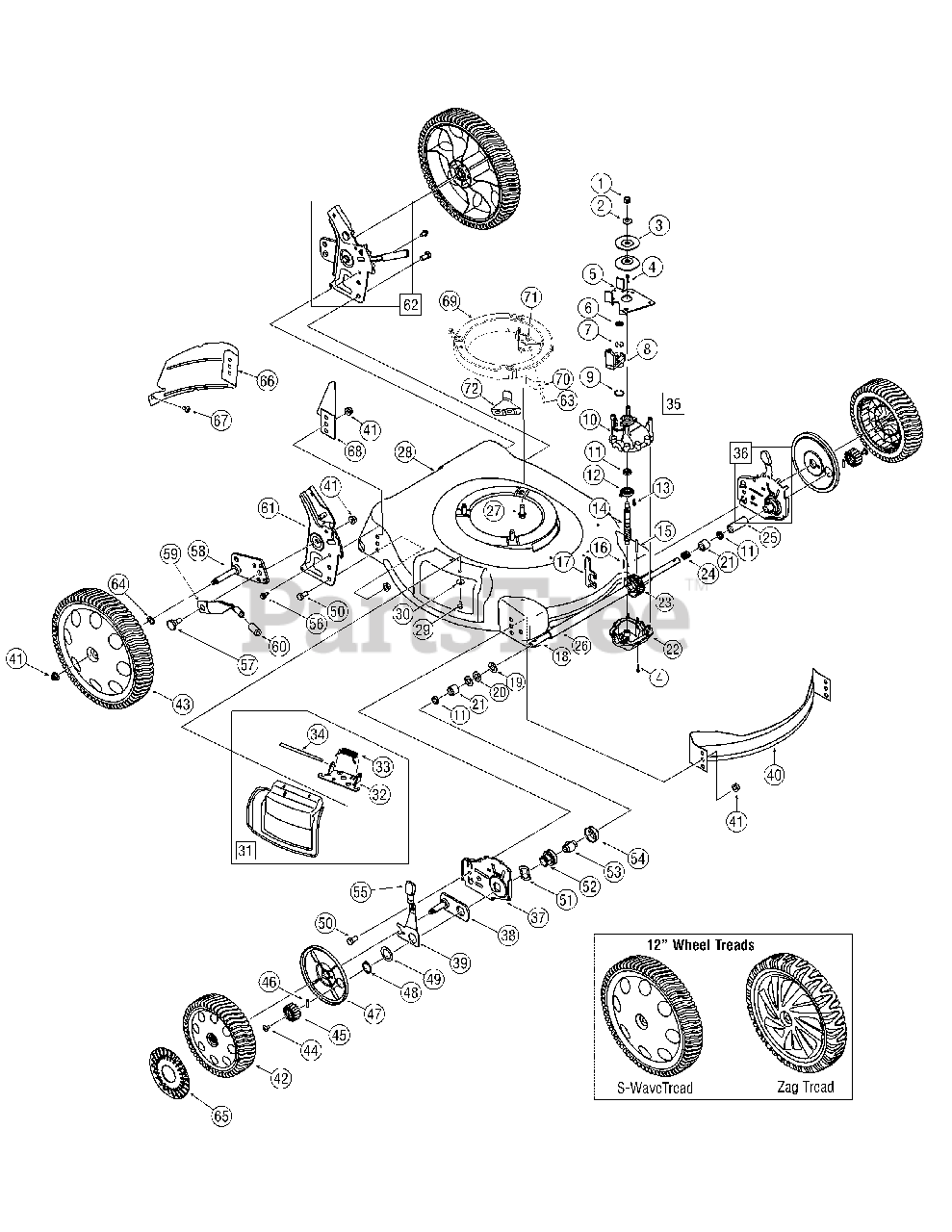

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 912-0214

Hex L-Nut 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

2

White Outdoor 736-0105

Cupped Washer

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 756-04132

Pulley, 3.82 x .313 x .68

$

$

Not available

4

White Outdoor 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

5

N/A

Transmission Bracket

$

$

Not available

6

White Outdoor 726-04043

Push Nut
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 736-04178A

Slotted Washer

$9.99

$

Usually ships in 3-6 days

0

8

White Outdoor 731-05187

Clutch Lever

$

$

Not available

9

White Outdoor 721-04110

O-ring

$

$

Not available

10

N/A

Upper Housing

$

$

Not available

11

White Outdoor 721-04107

Oil Seal
(Superseded to 721-04107A)

$4.99

$

In Stock, only 4 left!

0

12

White Outdoor 741-04116

Ball Bearing

$7.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-04374

Hex Screw

$3.99

$

In Stock, Qty 12

0

14

White Outdoor 911-04317

Pinion Shaft

$

$

Not available

15

White Outdoor 715-04030

Dowel Pin

$

$

Not available

16

White Outdoor 715-0129

Spirol Pin

$4.99

$

In Stock, only 1 left!

0

17

White Outdoor 707-04409B

Shifter Fork

$10.99

$

Usually ships in 3-6 days

0

18

White Outdoor 911-04429

Out put Shaft

$

$

Not available

19

White Outdoor 936-0272

Flat Washer
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-04224

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

21

White Outdoor 641-00000

Plastic Bushing

$

$

Not available

22

White Outdoor 731-04883

Lower Housing Ass’y

$

$

Not available

23

White Outdoor 717-04194A

28 Tooth Gear

$

$

Not available

24

White Outdoor 732-04290

Compression Spring

$

$

Not available

25

White Outdoor 750-04405

Sleeve Spacer 1.8" Lg.

$4.99

$

Usually ships in 3-6 days

0

26

White Outdoor 750-04404

Sleeve Spacer 9.10" Lg.

$6.49

$

In Stock, only 1 left!

0

27

White Outdoor 710-1008

Hex Wash TT Sems Scr 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

28

White Outdoor 787-01278-0606

21" Deck

$

$

Not available

29

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

31

White Outdoor 987-02055

Complete Mulch Plug

$27.99

$

In Stock, Qty 10

0

32

White Outdoor 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

33

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

34

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 918-04377A

Transmission Ass’y Complete
(Superseded to 918-04377B)

$224.99

$

Usually ships in 3-6 days

0

36

White Outdoor 987-02194A

RH Height Adjustment Assembly

$66.99

$

Usually ships in 3-6 days

0

36

White Outdoor 987-02193A

LH Height Adjustment Assembly

$66.99

$

Usually ships in 3-6 days

0

37

White Outdoor 787-01298

Height Adjuster Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

37

White Outdoor 787-01299

Height Adjuster Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

38

White Outdoor 687-02344

Height Adjuster Pivot Plate Ass'y

$

$

Not available

39

White Outdoor 732-0706

Spring Lever Front RH

$15.99

$

In Stock, only 4 left!

0

39

White Outdoor 732-0707

Spring Lever Front LH

$15.99

$

In Stock, only 1 left!

0

40

White Outdoor 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

41

White Outdoor 712-04065

Hex L-FlangeNut 3/8-16 Gr. F, Ny lon

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 734-2042

Wheel Ass'y 8 x 2.125 Gear Zag
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

43

White Outdoor 734-04093

Wheel Ass'y 12 x 2.125 Gear Zag

$67.99

$

In Stock, only 2 left!

0

44

White Outdoor 710-04531

Pan Scr. 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

45

White Outdoor 717-1762

Spur Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

45

White Outdoor 717-1761

Spur Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

46

White Outdoor 915-0221

Pin

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

48

White Outdoor 916-0102

Snap Ring for 1.0" shaft
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

49

White Outdoor 736-0474

Flat Washer 1.5 OD x .03

$6.99

$

In Stock, only 3 left!

0

50

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

51

White Outdoor 936-0447

Wave Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 987-02347

Bearing Support

$17.99

$

In Stock, only 3 left!

0

53

White Outdoor 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

54

White Outdoor 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

55

White Outdoor 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

56

White Outdoor 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 738-04266

Shoulder Screw .50 Dia. X .385

$6.49

$

Usually ships in 3-6 days

0

58

White Outdoor 987-02335

Pivot Arm Assembly - RH

$27.99

$

Usually ships in 3-6 days

0

58

White Outdoor 987-02336

Pivot Arm Assembly - LH

$

$

Not available

59

White Outdoor 732-0866

Rear Spring Lever

$

$

Not available

60

White Outdoor 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

61

N/A

RH Handle Bracket

Note: Order Assembly Ref No. 62

$

$

Not available

61

N/A

LH Handle Bracket

Note: Order Assembly Ref No. 62

$

$

Not available

62

White Outdoor 987-02280A

LH Handle Bracket Assembly

$53.99

$

Usually ships in 3-6 days

0

62

White Outdoor 987-02279A

RH Handle Bracket Assembly

$53.99

$

Usually ships in 3-6 days

0

63

White Outdoor 928-0173

Rivet

$4.49

$

In Stock, only 4 left!

0

64

White Outdoor 736-0182

Spring Washer .50 ID x 1.0 OD x .022

$4.49

$

In Stock, Qty 7

0

65

White Outdoor 731-0981C

Hub Cap Grey Ra dial

$10.99

$

In Stock, only 2 left!

0

66

White Outdoor 782-5003A

LH Rear Baffle

$30.99

$

Usually ships in 3-6 days

0

67

White Outdoor 710-1017

Screw AB 1/4-14 x 0.625

$8.49

$

In Stock, Qty 9

0

68

White Outdoor 782-5004B

RH Rear Baffle

$24.99

$

Usually ships in 3-6 days

0

69

White Outdoor 631-0075B

Engine Spacer

$

$

Not available

70

White Outdoor 787-01550

Belt Keeper Bracket

$

$

Not available

71

White Outdoor 736-0931

Flat Washer

$4.99

$

In Stock, only 1 left!

0

72

White Outdoor 787-01570-0637

Belt Keeper Bracket

$

$

Not available
