12AV569Q597 - Columbia 21" Walk-Behind Mower (2008) General Assembly Parts Diagram

21" Walk-Behind Mower

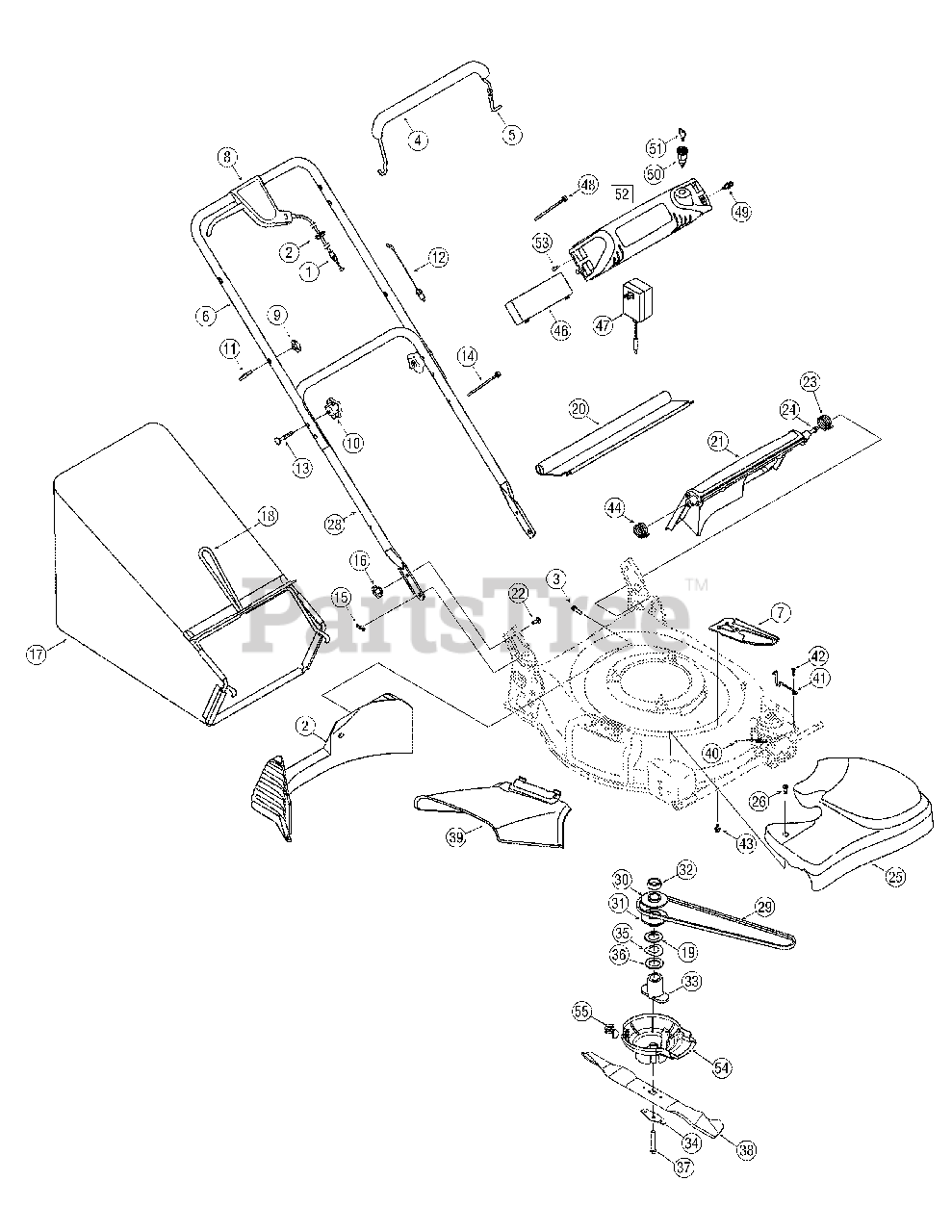

General Assembly Parts Diagram

  • Title

1

White Outdoor 746-04206A

Drive Cable
(Superseded to 946-04206A)

$27.99

$

In Stock, Qty 20+

0

2

White Outdoor 731-04150C

Rear Baffle 21" Rear Discharge

$42.99

$

In Stock, only 2 left!

0

3

White Outdoor 710-1241

Hex Lock Screw 1/4-15 x 1.0

$6.99

$

In Stock, Qty 16

0

4

White Outdoor 731-2626

Bail Cover - Black

$11.99

$

In Stock, only 2 left!

0

4

White Outdoor 731-04204

Bail Cover - Red

$11.99

$

In Stock, only 3 left!

0

5

White Outdoor 747-1161A

Blade Control Handle

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

6

White Outdoor 749-04209B

Upper Handle
(Superseded to 749-04209B-0637)

Variations

White Outdoor 749-04209B-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

7

White Outdoor 787-01258A

Cable Mounting Bracket

Variations

White Outdoor 787-01258A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

8

White Outdoor 753-0833

Control Lever Ass'y

$50.99

$

In Stock, only 2 left!

0

9

White Outdoor 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 720-04072

Knob - Star 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 746-0957

Control Cable 37.25" Lg.
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 664-04007A

Grass Bag -Generic
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

18

White Outdoor 747-04080A

Grass Bag Frame

Variations

White Outdoor 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

19

White Outdoor 736-0277

Flat Washer

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 750-04818

Sleeve Spacer 25 mm x 1.275 x .375

$5.99

$

Usually ships in 3-6 days

0

20

White Outdoor 731-05642

Trail Shield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

21

White Outdoor 731-05866

Rear Discharge Door

$

$

Not available

22

White Outdoor 710-0703

Carriage Bolt 1/4-10 x .75

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 732-04089A

Torsion Spring LH

$7.99

$

Usually ships in 3-6 days

0

24

White Outdoor 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

25

White Outdoor 731-05250

Transmission Cover (Grey)
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

25

White Outdoor 731-05013A

Transmission Cover (Black)
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

26

White Outdoor 710-1650

Shoulder Screw #12-24

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

White Outdoor 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

29

White Outdoor 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

30

White Outdoor 756-04161

Upper Pulley Half 25mm x 2.62
(Superseded to 956-04161)

$13.99

$

In Stock, only 1 left!

0

31

White Outdoor 756-04160

Lower Pulley Half 25mm x 2.62
(Superseded to 956-04160)

$20.99

$

Usually ships in 3-6 days

0

32

White Outdoor 750-04438A

Sleeve Spacer 25 mm ID x 1.375 x .620

Note: w/stainless steel decks

$4.99

$

Usually ships in 3-6 days

0

32

White Outdoor 750-04818

Sleeve Spacer 25 mm ID x 1.375 x .375

Note: w/painted steel decks

$5.99

$

Usually ships in 3-6 days

0

33

White Outdoor 748-04082

Blade Adapter

$37.99

$

In Stock, only 1 left!

0

34

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

35

White Outdoor 736-0447

Space Washer

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 736-0277

Flat Washer

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

38

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

White Outdoor 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

40

White Outdoor 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

41

White Outdoor 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-04329

Torx Screw

$4.99

$

In Stock, only 1 left!

0

43

White Outdoor 710-0896

Screw 1/4-14 x 0.625

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 732-04090A

Torsion Spring RH

$7.99

$

Usually ships in 3-6 days

0

46

White Outdoor 725-04323

12V Battery
(Superseded to 925-04323)

Note: Models w/electric start only

$114.99

$

In Stock, only 3 left!

0

47

White Outdoor 725-04329

Battery Charger
(Superseded to 725-06121B)

Note: Models w/electric start only

$47.99

$

In Stock, Qty 11

0

48

725-0240

Cable Tie

Note: Models w/electric start only

$

$

Not available

49

White Outdoor 728-0199

Rivet

Note: Models w/electric start only

$4.49

$

In Stock, Qty 20+

0

50

White Outdoor 725-04347

Key Switch
(Superseded to 925-04347)

Note: Models w/electric start only

$33.99

$

Usually ships in 3-6 days

0

51

White Outdoor 725-0201

Key
(Superseded to 925-0201)

Note: Models w/electric start only

$9.49

$

In Stock, only 1 left!

0

52

White Outdoor 625-04029

Electric Starter Harness Ass'y
(Superseded to 925-04072)

Note: Models w/electric start only

$99.99

$

Usually ships in 3-6 days

0

53

White Outdoor 710-1667A

Screw, #10-16 x .750

Note: Models w/electric start only

$4.49

$

In Stock, Qty 13

0

54

White Outdoor 731-06029

Engine Baffle
(Superseded to 753-06116)

$16.99

$

In Stock, only 1 left!

0

55

White Outdoor 787-01593

Bracket

$5.99

$

In Stock, Qty 5

0
