12AV569N766 - Troy-Bilt Walk-Behind Mower (2005) Wheels Parts Diagram

Walk-Behind Mower

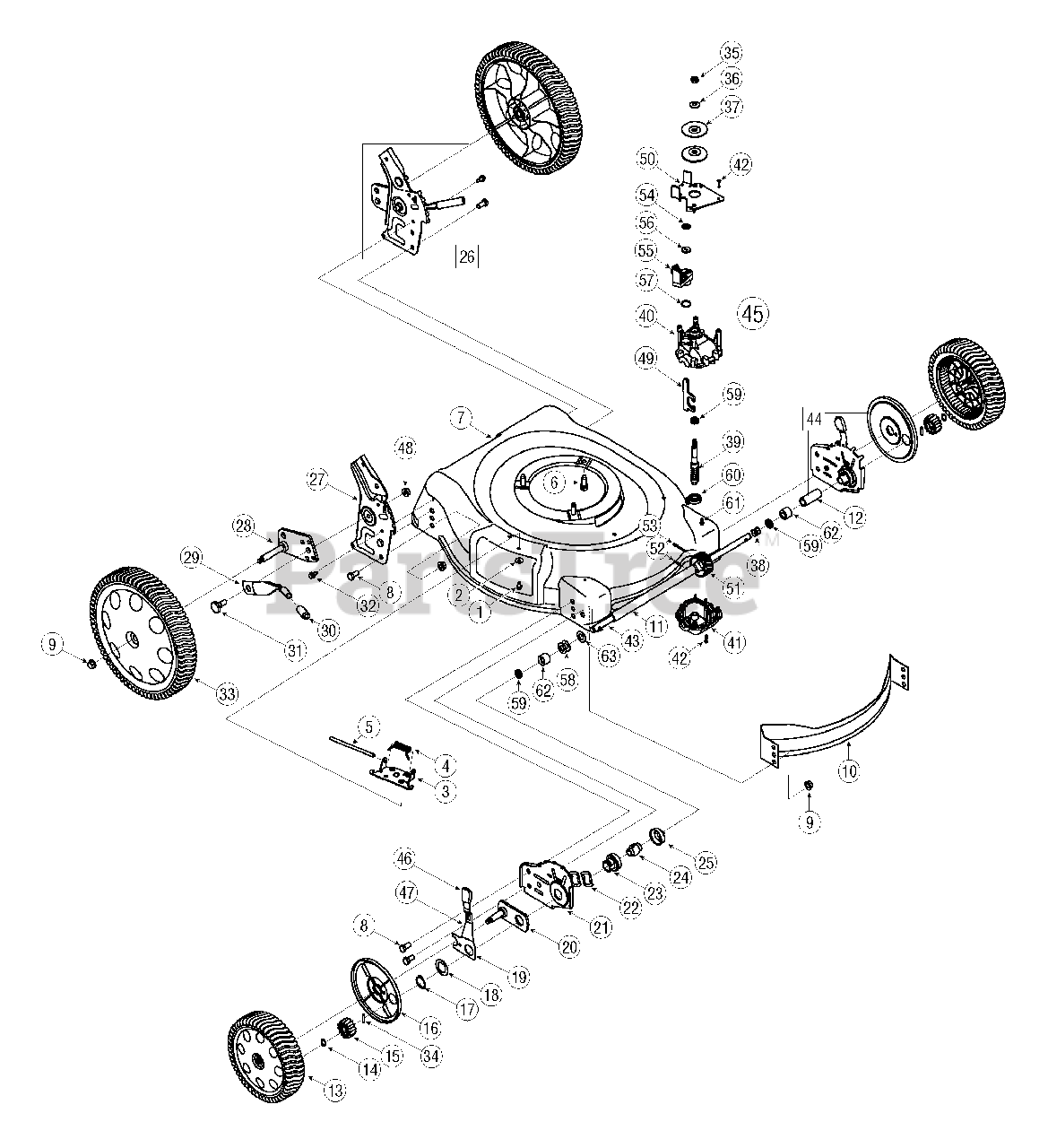

Wheels Parts Diagram

  • Title

1

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 787-01222

21" Deck
(Superseded to 753-05204)

Variations

Troy-Bilt 787-01222-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01222-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

Troy-Bilt 710-0216

Hex Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

9

Troy-Bilt 712-0431

Hex Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

11

Troy-Bilt 750-04404

Sleeve Spacer 9.10" Lg.

$6.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 750-04405

Slev. Spacer 1.5" Lg.

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 734-04018A

Wheel 8 x 2.125 Gear
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 717-1761

Gear 14T LH FWD

Note: Not Shown

$13.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 687-02018

Lever Assembly RH
(Superseded to 987-02018)

$24.99

$

Usually ships in 3-6 days

0

20

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

21

Troy-Bilt 782-0512B

Height Adjuster Plate - RH
(Superseded to 782-0512B-0637)

Variations

Troy-Bilt 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 782-0511A

Height Adjuster Plate - LH
(Superseded to 782-0511A-0637)

Note: Not Shown

Variations

Troy-Bilt 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

22

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

25

Troy-Bilt 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

26

MTD 687-02057

Handle Bracket Assembly - LH

$

$

Not available

26

MTD 687-02056

Handle Bracket Assembly - RH

Note: Not Shown

$

$

Not available

27

Troy-Bilt 687-02033

Handle Bracket - RH
(Superseded to 987-02033)

$

$

Not available

24

MTD 687-02031

Handle Bracket - LH

Note: Not Shown

$

$

Not available

28

Troy-Bilt 687-02039

Pivot Bar RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 687-02040

Pivot Bar LH
(Superseded to 987-02336)

Note: Not Shown

$

$

Not available

29

MTD 732-0866

Height Adjustment Lever

$

$

Not available

30

Troy-Bilt 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

31

Troy-Bilt 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-1652

Tt Screw 1/4-20 x.625"

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 734-04127

Wheel, 12 x 2.125
(Superseded to 734-04019)

$70.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 712-0116

Hex Jam Nut 5/16-24

$4.99

$

In Stock, Qty 6

0

36

Troy-Bilt 736-0105

Bell Washer.325 x.930 x.45

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 756-04132

Pulley, 3.82 x.313 x.68

$

$

Not available

38

N/A

Compression Spring

Note: Order 918-04299A

$

$

Not available

39

MTD 711-04317

Pinion Shaft

$

$

Not available

40

N/A

Upper Housing

Note: Order 918-04299A

$

$

Not available

41

MTD 731-04883

Lower Housing

$

$

Not available

42

Troy-Bilt 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

43

N/A

Output Shaft

Note: Order 918-04299A

$

$

Not available

44

Troy-Bilt 682-0511A

Height Adjustment Assembly LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 682-0512A

Height Adjustment Assembly RH
(Superseded to 987-02194A)

Note: Not Shown

$66.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 618-04274

Transmission Assembly Comp.
(Superseded to 918-04299A)

$

$

Not available

46

Troy-Bilt 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

47

Troy-Bilt 732-0707

Front Lever LH

Note: Not Shown

$15.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 707-04409

Shifter Fork

$

$

Currently unavailable

50

N/A

Transmission Bracket

Note: Order 918-04299A

$

$

Not available

51

Troy-Bilt 717-04194

28 Tooth Gear

$

$

Currently unavailable

52

Troy-Bilt 715-0129

Spirol Pin

$4.99

$

In Stock, only 1 left!

0

53

N/A

Dowel Pin

$

$

Not available

54

MTD 726-04043

Push Nut
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 731-05187

Clutch Lever

$

$

Not available

56

Troy-Bilt 736-04178

Slotted Washer

$

$

Currently unavailable

57

MTD 721-04110

O-ring

$

$

Not available

58

N/A

Flat Washer

Note: Order 918-04299A

$

$

Not available

59

Troy-Bilt 721-04107

Oil Seal
(Superseded to 721-04107A)

$4.99

$

In Stock, only 4 left!

0

60

Troy-Bilt 741-04116

Ball Bearing

$7.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 710-04374

Hex Screw

$3.99

$

In Stock, Qty 12

0

62

MTD 741-04106

Plastic Bushing

$

$

Not available

63

N/A

Flat Washer

Note: Order 918-04299A

$

$

Not available
