12AV566A004 - MTD Gold Walk-Behind Mower (2010) General Assembly 12AV566A Parts Diagram

Gold Walk-Behind Mower

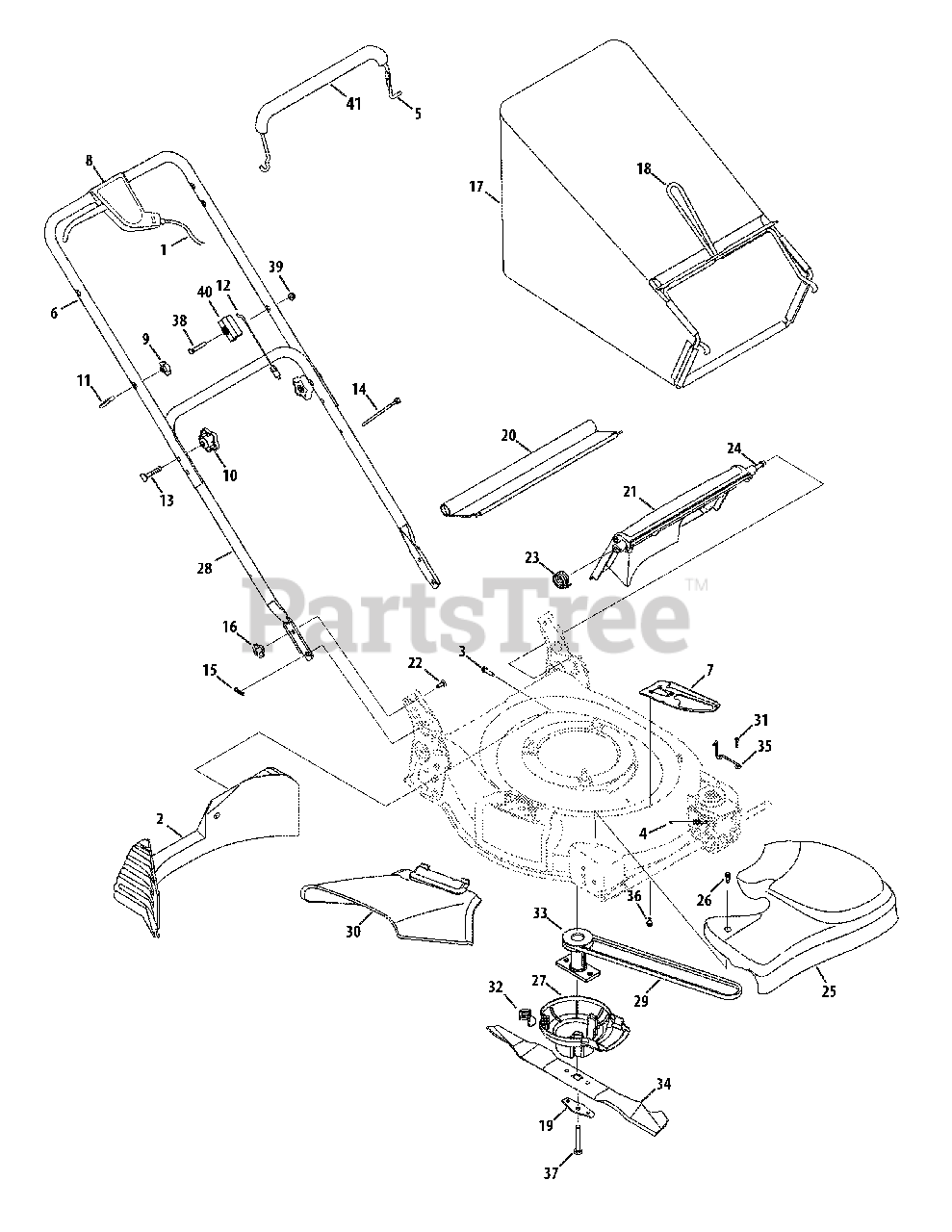

General Assembly 12AV566A Parts Diagram

  • Title

1

MTD 946-04206A

Variable Speed Cable

$27.99

$

In Stock, Qty 20+

0

2

MTD 731-04150C

Rear Baffle 21" Rd.

$42.99

$

In Stock, only 2 left!

0

3

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

4

MTD 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

5

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

6

MTD 749-04206B-0637

Upper Handle
(Superseded to 749-04206-0637)

$

$

Not available

7

MTD 787-01258A-0637

Cable Mount Bracket
(Superseded to 787-01258A)

$24.99

$

Usually ships in 3-6 days

0

8

MTD 753-06060

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

9

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

10

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

11

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

12

MTD 946-1130

Control Cable - 40"

$17.99

$

In Stock, Qty 11

0

13

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

14

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

16

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

MTD 964-04007A

Grass Bag

$130.99

$

In Stock, Qty 15

0

18

MTD 747-04080A-0637

Grass Bag Frame
(Superseded to 747-04080A)

$59.99

$

In Stock, Qty 5

0

19

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

20

MTD 731-05642A

Rear Trailing Shield

$28.99

$

In Stock, Qty 9

0

21

MTD 731-06847

Rear Discharge Door

$28.99

$

Usually ships in 3-6 days

0

22

MTD 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 15

0

23

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

24

MTD 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

25

MTD 931-05013A

Transmission Cover - Black

$52.99

$

Usually ships in 3-6 days

0

26

MTD 710-1650

Shoulder Screw, # 12 -24

$4.99

$

In Stock, Qty 20+

0

27

MTD 753-06116

Engine Baffle

$16.99

$

In Stock, only 2 left!

0

28

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 3 left!

0

29

MTD 954-04082A

V-Belt

$27.99

$

In Stock, Qty 7

0

30

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

31

MTD 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

32

MTD 787-01593

Baffle Bracket

$5.99

$

In Stock, Qty 5

0

33

MTD 687-02195A

Blade Adapter Assembly

$41.99

$

In Stock, only 1 left!

0

34

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

35

MTD 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

36

MTD 710-0896

Scr., 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-1257

Hex Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 2 left!

0

38

MTD 710-0106

Hhcs, 1/4-20 x 1.50

Note: If Equipped

$3.99

$

In Stock, only 2 left!

0

39

MTD 712-04064

Nut, Flglk, 1/4-20

Note: If Equipped

$3.99

$

In Stock, Qty 20+

0

40

MTD 731-06749

Mount, Cable

Note: If Equipped

$5.49

$

In Stock, Qty 12

0

41

MTD 731-04859

Bail Cover

Note: If Equipped

$11.99

$

Usually ships in 3-6 days

0
