12AV566A004 - MTD Gold Walk-Behind Mower (2010) Drive Assembly 12AV566A Parts Diagram

Gold Walk-Behind Mower

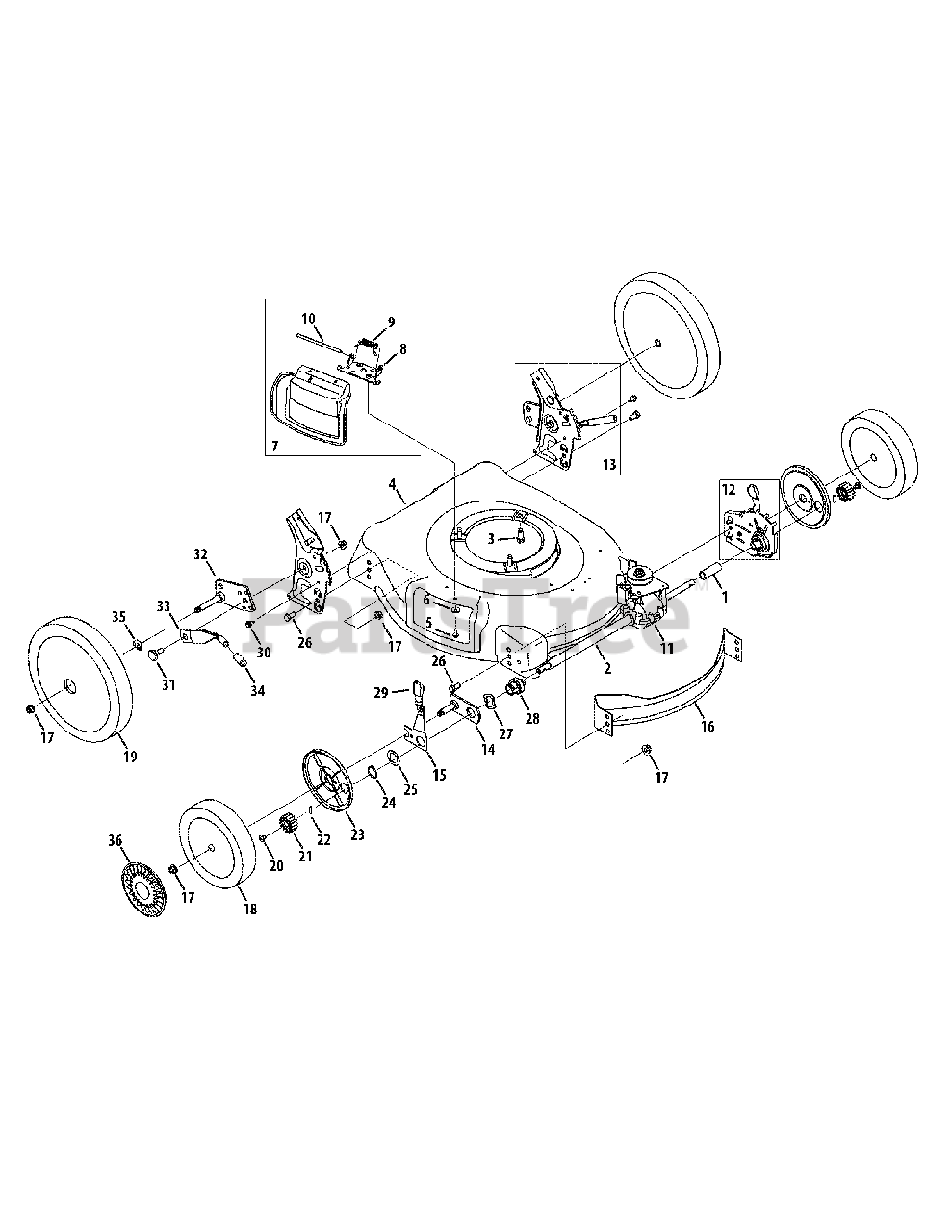

Drive Assembly 12AV566A Parts Diagram

  • Title

1

MTD 750-04405

Sleeve Spacer, 1.8" Lg.

$4.99

$

Usually ships in 3-6 days

0

2

MTD 750-04404

Sleeve Spacer, 9.10" Lg.

$6.49

$

In Stock, only 1 left!

0

3

MTD 710-0654A

TT Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 787-01278-0691

21" Deck

Note: Black

$

$

Not available

5

MTD 710-0599

TT Screw, 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

7

MTD 987-02055

Hinged Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0

8

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

9

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

10

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

11

MTD 918-04377B

Transmission Assembly

$224.99

$

Usually ships in 3-6 days

0

12

MTD 987-02193A

Height Adj. Assembly - LH

$66.99

$

Usually ships in 3-6 days

0

12

MTD 987-02194A

Height Adj. Assembly - RH

$66.99

$

Usually ships in 3-6 days

0

13

MTD 987-02280A

Handle Bracket Assembly - LH

$53.99

$

Usually ships in 3-6 days

0

13

MTD 987-02279A

Handle Bracket Assembly - RH

$53.99

$

Usually ships in 3-6 days

0

14

MTD 987-02334

Pivot Plate Assembly

$9.99

$

In Stock, Qty 5

0

15

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

15

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

16

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

17

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

MTD 734-2042A

Front Wheel, 8 x 2.125

$38.99

$

In Stock, Qty 12

0

19

MTD 734-04093

Rear Wheel, 12 x 2.125, Gray

$67.99

$

In Stock, only 2 left!

0

20

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

21

MTD 717-1762

Gear 14T FWD - RH

$13.99

$

In Stock, only 3 left!

0

21

MTD 717-1761

Gear 14T FWD - LH

$13.99

$

In Stock, only 4 left!

0

22

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

23

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

24

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

25

MTD 736-0474

Flat Washer

$6.99

$

In Stock, only 3 left!

0

26

MTD 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

27

MTD 936-0447

Wave Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

28

MTD 987-02347

Bearing Assembly

$17.99

$

In Stock, only 3 left!

0

29

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

30

MTD 710-1652

TT Screw w/washer, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-04266

Shoulder Screw, .500 Dia. x .385

$6.49

$

Usually ships in 3-6 days

0

32

MTD 987-02335

Pivot Arm Assembly - RH

$27.99

$

Usually ships in 3-6 days

0

32

MTD 987-02336

Pivot Arm Assembly - LH

$

$

Not available

33

MTD 732-0866

Rear Spring Lever

$

$

Not available

34

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

35

MTD 736-0182

Washer, Spring, .500 x 1.00 x .022

$4.49

$

In Stock, Qty 7

0

36

MTD 731-07001

Hubcap

Note: If equipped

$5.49

$

In Stock, only 2 left!

0
