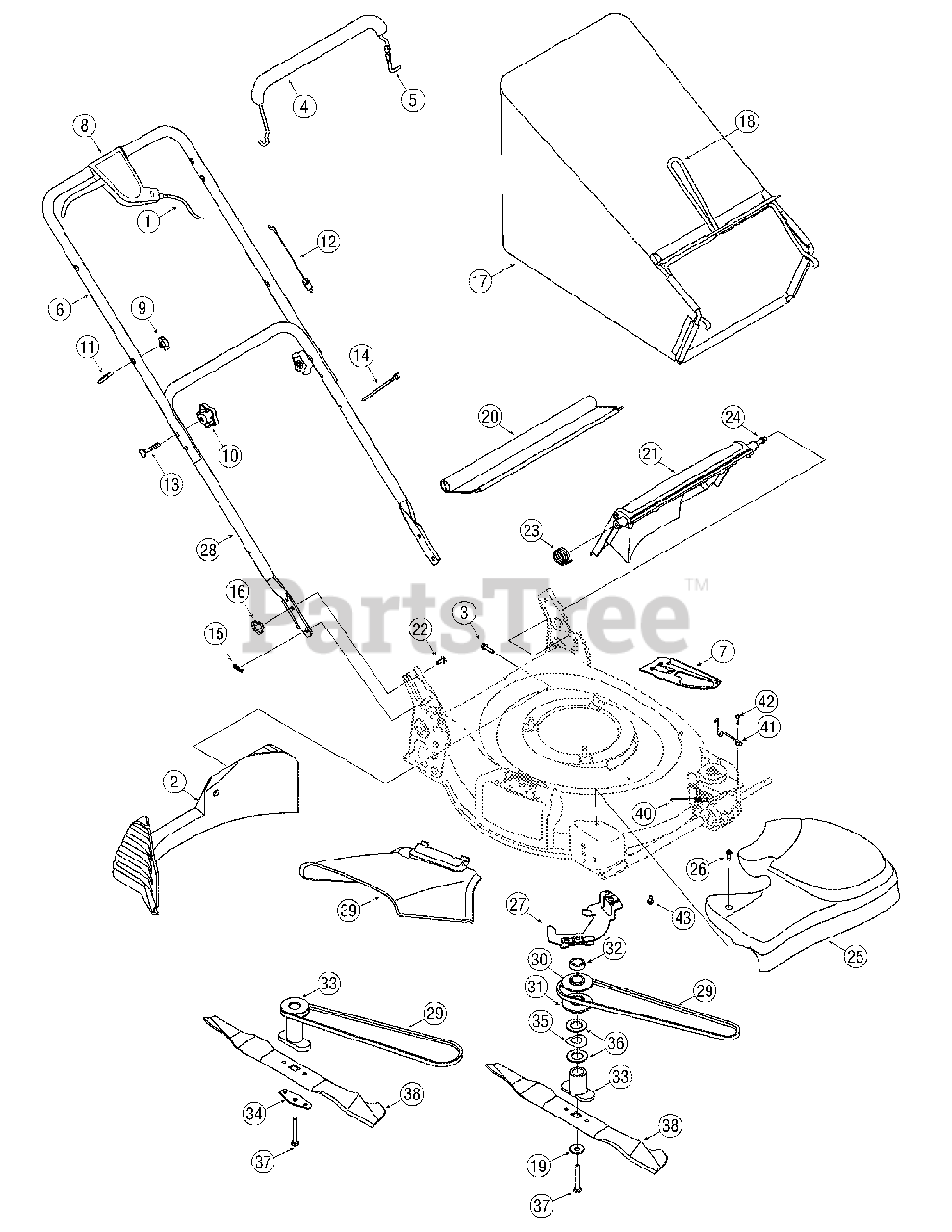

12AV565Q711 - Troy-Bilt Walk-Behind Mower (2007) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 746-04206A

Variable Speed Cable
(Superseded to 946-04206A)

$27.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 731-04150C

Rear Baffle 21" Rd.

$42.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-1241

Screw 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

4

Troy-Bilt 731-04204

Deluxe Bail Cover

Note: If Equipped

$11.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 747-1161A

Blade Control

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 749-04206

Upper Handle

Variations

Troy-Bilt 749-04206-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

7

Troy-Bilt 787-01258A

Cable Mount Bracket

Variations

Troy-Bilt 787-01258A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 753-05096A

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 746-0957

Control Cable - 37.25"
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 746-1113

Control Cable - 37.75"
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 746-1130

Control Cable - 40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 11

0

12

Troy-Bilt 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 5

0

13

Troy-Bilt 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 664-04011

Grassbag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

18

Troy-Bilt 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

Troy-Bilt 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

19

Troy-Bilt 736-0452

Wash., Bell, .396 x 1.140 x .095

Note: Honda Engine

$4.99

$

In Stock, Qty 7

0

20

Troy-Bilt 731-05642

Rear Trailing Shield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

21

Troy-Bilt 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

23

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 731-05020A

Transmission Cover (Black)
(Superseded to 931-05020A)

$70.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 787-01265A

Belt Keeper Bracket
(Superseded to 787-01265A-0637)

Variations

Troy-Bilt 787-01265A-0637

BRACKET:BELT KEEPE - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 754-04082A

V-Belt
(Superseded to 954-04082A)

$27.99

$

In Stock, Qty 7

0

30

Troy-Bilt 756-04161

Upper Pulley Half 25mm x 2.62
(Superseded to 956-04161)

Note: Honda Engine

$13.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 756-04160

Lower Pulley Half 25mm x 2.62
(Superseded to 956-04160)

Note: Honda Engine

$20.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 750-04438A

Slv Spacer 25mm x 1.375 x .62

Note: Honda Engine

$4.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 748-04082

Blade Adapter

Note: Honda Engine

$37.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 748-04015A

One Piece Blade Adapter
(Superseded to 948-04015A)

Note: Briggs & Stratton Engine

$65.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

Note: Briggs & Stratton Engine

$5.99

$

In Stock, Qty 17

0

35

Troy-Bilt 736-0447

Space Washer

Note: Honda Engine

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 736-0277

Flat Washer

Note: Honda Engine

$4.49

$

In Stock, only 1 left!

0

37

Troy-Bilt 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 710-0896

Scr., 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0
