12AV565Q711 - Troy-Bilt Walk-Behind Mower (2006) Drive and Wheels Parts Diagram

Walk-Behind Mower

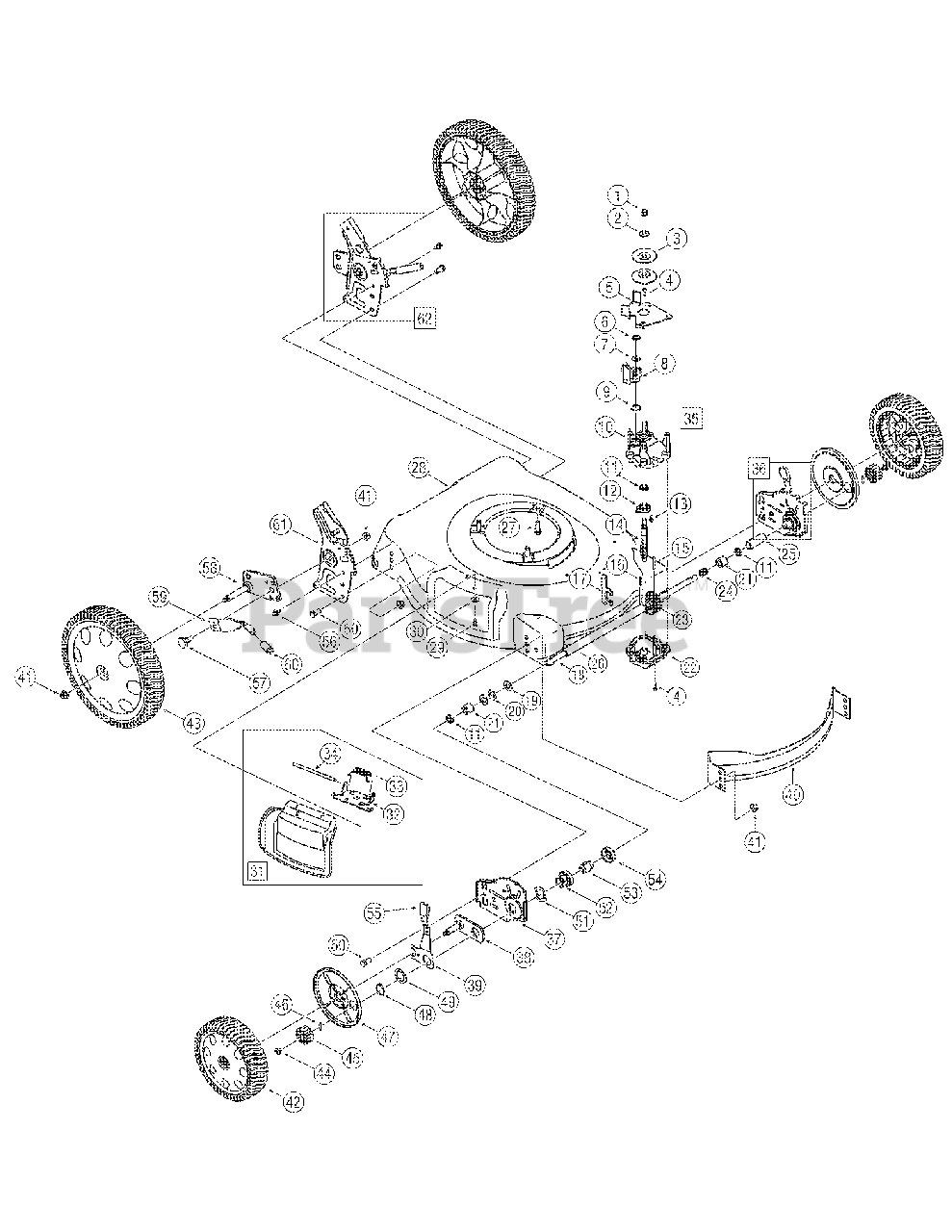

Drive and Wheels Parts Diagram

  • Title

1

Troy-Bilt 712-0214

Hex Lock Nut, 3/8-24

$6.49

$

In Stock, only 3 left!

0

2

Troy-Bilt 736-0105

Bell Washer.325 x.930 x.45

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 756-04132

Pulley, 3.82 x.313 x.68

$

$

Not available

4

Troy-Bilt 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 707-04567A

Transmission Bracket

$

$

Currently unavailable

6

MTD 726-04043

Push Nut
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 736-04178A

Slotted Washer

$9.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-05187

Clutch Lever

$

$

Not available

9

MTD 721-04110

O-ring

$

$

Not available

10

Troy-Bilt 731-05099A

Upper Housing

$

$

Currently unavailable

11

Troy-Bilt 721-04107

Oil Seal
(Superseded to 721-04107A)

$4.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 741-04116

Ball Bearing

$7.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-04374

Hex Screw

$3.99

$

In Stock, Qty 12

0

14

MTD 711-04317

Pinion Shaft

$

$

Not available

15

MTD 715-04030

Dowel Pin

$

$

Not available

16

Troy-Bilt 715-0129

Spirol Pin

$4.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 707-04409A

Shifter Fork

$

$

Currently unavailable

18

MTD 711-04429

Output Shaft

$

$

Not available

19

Troy-Bilt 736-0572

Flat Washer
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 736-04224

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

21

MTD 741-04106

Plastic Bushing

$

$

Not available

22

MTD 731-04883

Lower Housing

$

$

Not available

23

Troy-Bilt 717-04194

28 Tooth Gear

$

$

Currently unavailable

24

MTD 732-04290

Compression Spring

$

$

Not available

25

Troy-Bilt 750-04405

Slev. Spacer 1.8" Lg.

$4.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 750-04404

Sleeve Spacer 9.10" Lg.

$6.49

$

In Stock, only 1 left!

0

27

Troy-Bilt 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 787-01278

21" Deck 3 in 1 SP

Variations

Troy-Bilt 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

Troy-Bilt 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 687-02055

Hinged Mulch Plug Assembly
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

32

Troy-Bilt 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 731-04161

Mulch Plug
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

34

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 618-04377

Transmission Assembly
(Superseded to 918-04377B)

$224.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 687-02193

Height Adj. Assembly - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 687-02194

Height Adj. Assembly - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 787-01298

Front Height Adj. Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 787-01299

Front Height Adj. Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

38

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

39

Troy-Bilt 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

39

Troy-Bilt 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

41

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 734-04018A

Front Wheel 8 x 2.125
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 734-04127

Rear Wheel, 12 x 2.125
(Superseded to 734-04019)

$70.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 710-04531

Screw 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 717-1762

Gear 14T RH FWD RH

$13.99

$

In Stock, only 3 left!

0

45

Troy-Bilt 717-1761

Gear 14T LH FWD LH

$13.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 736-0474

Flat Washer

$6.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

51

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

53

Troy-Bilt 741-0604A

Sleeve Bearing

$12.99

$

In Stock, Qty 12

0

54

Troy-Bilt 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 687-02039A

Pivot Arm Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 687-02040A

Pivot Arm Assembly - LH
(Superseded to 987-02336)

$

$

Not available

59

MTD 732-0866

Rear Spring Lever

$

$

Not available

60

Troy-Bilt 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

61

MTD 687-02192

Handle Bracket - RH

$

$

Not available

61

MTD 687-02191

Handle Bracket - LH

$

$

Not available

62

MTD 687-02057

Handle Bracket Assembly - LH

$

$

Not available

62

MTD 687-02056

Handle Bracket Assembly - RH

$

$

Not available
