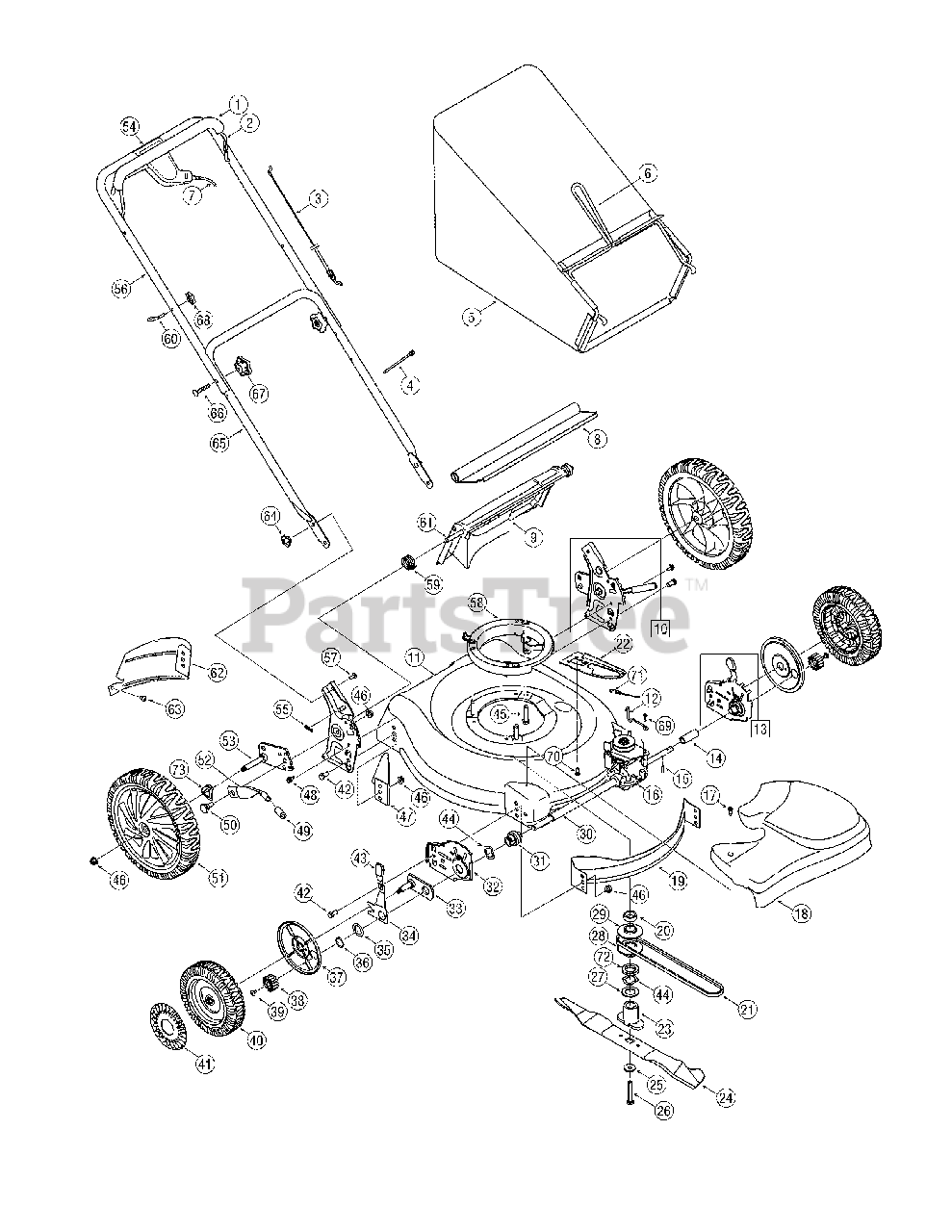

12AV55DQ713 - MTD Pro Walk-Behind Mower (2007) General Assembly Parts Diagram

Pro Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 731-2626

Bail Cover

$11.99

$

In Stock, only 2 left!

0

2

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

3

MTD 946-0957

Control Cable 37.25-inch

$17.99

$

In Stock, Qty 20+

0

4

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

MTD 964-04065

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

6

MTD 747-04080A

Grass Bag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

7

MTD 946-04206A

Variable Speed Cable

$27.99

$

In Stock, Qty 20+

0

8

MTD 731-05642A

Trailshield

$28.99

$

In Stock, Qty 9

0

9

MTD 631-04225

Rear Door

Note: NLA

$

$

Currently unavailable

10

MTD 987-02280A

Height Adj. Bracket Assy - LH

$53.99

$

Usually ships in 3-6 days

0

10

MTD 987-02279A

Height Adj. Bracket Assy - RH

$53.99

$

Usually ships in 3-6 days

0

11

MTD 987-01537

21-inch Deck

$

$

Not available

12

MTD 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

13

MTD 987-02193

Front Height Adj. Assy - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

13

MTD 987-02194A

Front Height Adj. Assy - RH

$66.99

$

Usually ships in 3-6 days

0

14

MTD 750-04405

Sleeve Spacer .52 ID x 1.8 Lg

$4.99

$

Usually ships in 3-6 days

0

15

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

16

MTD 918-04377B

Transmission

$224.99

$

Usually ships in 3-6 days

0

17

MTD 710-1650

Shoulder Screw

$4.99

$

In Stock, Qty 20+

0

18

MTD 931-05013A

Deck Cover

$52.99

$

Usually ships in 3-6 days

0

19

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

20

MTD 950-04164A

Spacer

$

$

Not available

21

MTD 954-04082A

V-Type Belt

$27.99

$

In Stock, Qty 6

0

22

MTD 787-01258A-0637

Cable Mount Bracket
(Superseded to 787-01258A)

$24.99

$

Usually ships in 3-6 days

0

23

MTD 748-04082

Blade Adapter

$37.99

$

In Stock, only 1 left!

0

24

MTD 942-0741A

21-inch Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

26

MTD 710-1257

Screw 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

27

MTD 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

28

MTD 956-04160

Key Half Pulley

$20.99

$

Usually ships in 3-6 days

0

29

MTD 956-04161

Upper Half Pulley

$13.99

$

In Stock, only 1 left!

0

30

MTD 750-04404

Sleeve Spacer, .52 Lg x 9.10

$6.49

$

In Stock, only 1 left!

0

31

MTD 982-0015

Front Bearing Assembly

$31.99

$

Usually ships in 3-6 days

0

32

MTD 787-01298A-0637

Adjustment Plate RH

$19.99

$

Usually ships in 3-6 days

0

32

MTD 787-01299A-0637

Adjustment Plate LH

$15.99

$

In Stock, only 1 left!

0

33

MTD 987-02044

Pivot Plate Assembly

$

$

Not available

34

MTD 732-0706

Spring Lever RH

$15.99

$

In Stock, only 4 left!

0

34

MTD 732-0707

Spring Lever LH

$15.99

$

In Stock, only 1 left!

0

35

MTD 736-0474

Flat Washer 1.01 x 1.5 x .035

$6.99

$

In Stock, only 3 left!

0

36

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

37

MTD 782-7551A

Wheel Cover

$5.49

$

In Stock, Qty 20+

0

38

MTD 717-1762

Spur Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

38

MTD 717-1761

Spur Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

39

MTD 710-04531

Screw 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

40

MTD 734-2042A

Front Wheel 8 x 2.125 Zag

$38.99

$

In Stock, Qty 12

0

41

MTD 731-0981C

Hubcap

$10.99

$

In Stock, only 2 left!

0

42

MTD 710-0216

Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

43

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

44

MTD 936-0447

Wave Washer 1.5 x 1 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-1008

Screw TT 3/8-16 x 1.875

$5.49

$

In Stock, Qty 7

0

46

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

47

MTD 782-5004B

Rear RH Baffle

$24.99

$

Usually ships in 3-6 days

0

48

MTD 710-1652

Screw TT 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

49

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

50

MTD 938-0507B

Shoulder Screw
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

51

MTD 734-04093

Rear Wheel 12 x 2.125 Idle Zag

$67.99

$

In Stock, only 2 left!

0

52

MTD 732-0866

Spring Lever

$

$

Not available

53

MTD 987-02335

Pivot Arm Assembly RH

$27.99

$

Usually ships in 3-6 days

0

53

MTD 987-02336

Pivot Arm Assembly LH

$

$

Not available

54

MTD 753-06060A

Speed Control Assembly

$27.99

$

In Stock, only 1 left!

0

55

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

56

MTD 749-04206

Upper Handle

Variations

MTD 749-04206-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 710-0703

Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

58

MTD 631-0075B

Engine Spacer

$

$

Not available

59

MTD 732-04090A

Torsion Spring RH

$7.99

$

Usually ships in 3-6 days

0

60

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

61

MTD 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

62

MTD 782-5003A

Rear Baffle LH

$30.99

$

Usually ships in 3-6 days

0

63

MTD 710-1017

Screw AB 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

64

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

65

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 2 left!

0

66

MTD 710-1174

Carriage Bolt 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

67

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

68

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-04329

Torx Screw

$4.99

$

In Stock, only 1 left!

0

70

MTD 710-0896

Screw, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

71

MTD 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

72

MTD 950-04020

Spacer, 1.004 x 1.375 x .25

$12.99

$

In Stock, only 1 left!

0

73

MTD 736-0182

Spring Washer, .500 x 1.00 x .022

$4.49

$

In Stock, Qty 7

0
