12AV556D766 - Troy-Bilt Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

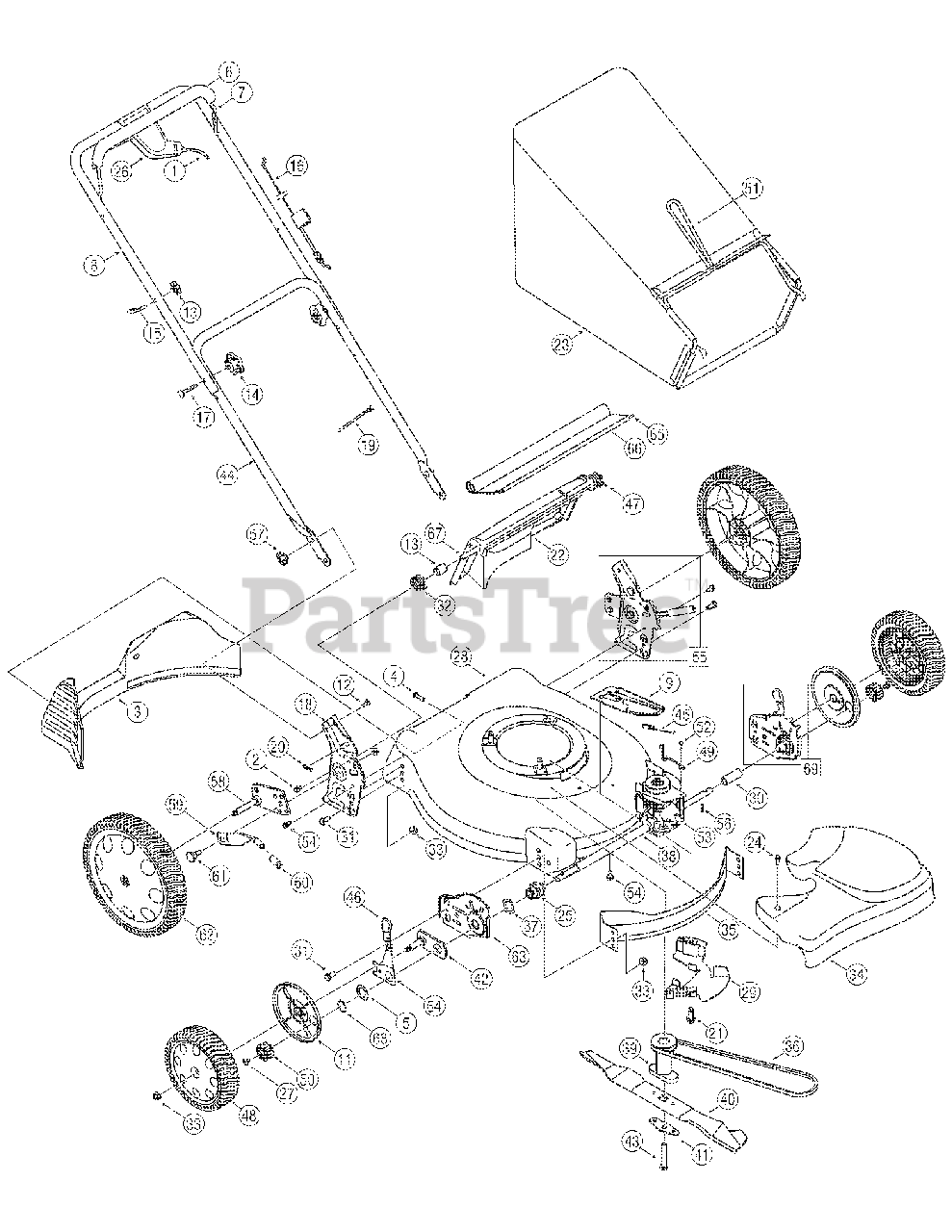

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 746-04206

Variable Speed Cable
(Superseded to 946-04206A)

$27.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 731-04150C

Rear Baffle 21" Rd.

$42.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-04371

Screw 1/4-15

$6.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 736-0474

Flat Washer

$6.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 731-04204

Deluxe Bail Cover

$11.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 747-1161A

Blade Control

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 749-04206

Upper Handle

Variations

Troy-Bilt 749-04206-0637

Upper Squeeze Handle - POWDER BLACK (0637)

$

$

Not available

$

$

9

Troy-Bilt 787-01258A

Cable Mount Bracket

Variations

Troy-Bilt 787-01258A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-1059

Cable Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 750-04162

Spacer.375 x.50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

14

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 746-0957

Control Cable - 37.25"
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 687-02192

Handle Bracket - RH

$

$

Not available

18

MTD 687-02191

Handle Bracket - LH

$

$

Not available

19

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 664-04011

Grassbag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

Troy-Bilt 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 682-0015

Front Bearing Assembly
(Superseded to 982-0015)

$31.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 753-0833

Speed Control Assembly

$50.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 710-04531

Screw 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 787-01277

21" Deck SS SP

Variations

Troy-Bilt 787-01277-0665

DECK-21" - YARDMAN GREEN (0665)

$319.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01277-0638

DECK-21" - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01277-0691

DECK-21" - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 787-01277-0729

DECK-21" - STORM GRAY (0729)

$

$

Not available

$258.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 787-01265

Belt Keeper Bracket
(Superseded to 787-01265A-0637)

$25.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 750-04405

Slev. Spacer 1.8" Lg.

$4.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

32

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 731-05020A

Transmission Cover (Black)
(Superseded to 931-05020A)

$70.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

36

Troy-Bilt 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 750-04404

Sleeve Spacer 9.10" Lg.

$6.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 748-04015A

Blade Adapter w/ Pulley
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

42

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

43

Troy-Bilt 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 732-04317

Extension Spring

$4.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

47

Troy-Bilt 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 734-04018A

Front Wheel 8 x 2.125
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 732-04294

Belt Keeper Wire

$4.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

51

Troy-Bilt 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

Troy-Bilt 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

52

Troy-Bilt 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

53

Troy-Bilt 618-04377

Transmission Assembly
(Superseded to 918-04377B)

$224.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

55

MTD 687-02057

Handle Bracket Assembly - LH

$

$

Not available

55

MTD 687-02056

Handle Bracket Assembly - RH

$

$

Not available

56

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 687-02039A

Pivot Arm Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 687-02040A

Pivot Arm Assembly - LH
(Superseded to 987-02336)

$

$

Not available

59

MTD 732-0866

Rear Spring Lever

$

$

Not available

60

Troy-Bilt 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

61

Troy-Bilt 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 734-04127

Rear Wheel, 12 x 2.125
(Superseded to 734-04019)

$70.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 787-01298

Front Height Adj. Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 787-01299

Front Height Adj. Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

64

Troy-Bilt 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

65

Troy-Bilt 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

66

Troy-Bilt 731-04998

Rear Trailing Shield

$31.99

$

In Stock, Qty 7

0

67

Troy-Bilt 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 687-02193

Height Adj. Assembly - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 687-02194

Height Adj. Assembly - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0
