12AS569T401 - Yard-Man Walk-Behind Mower (2003) General Assembly (Steel Rear Door) Parts Diagram

Walk-Behind Mower

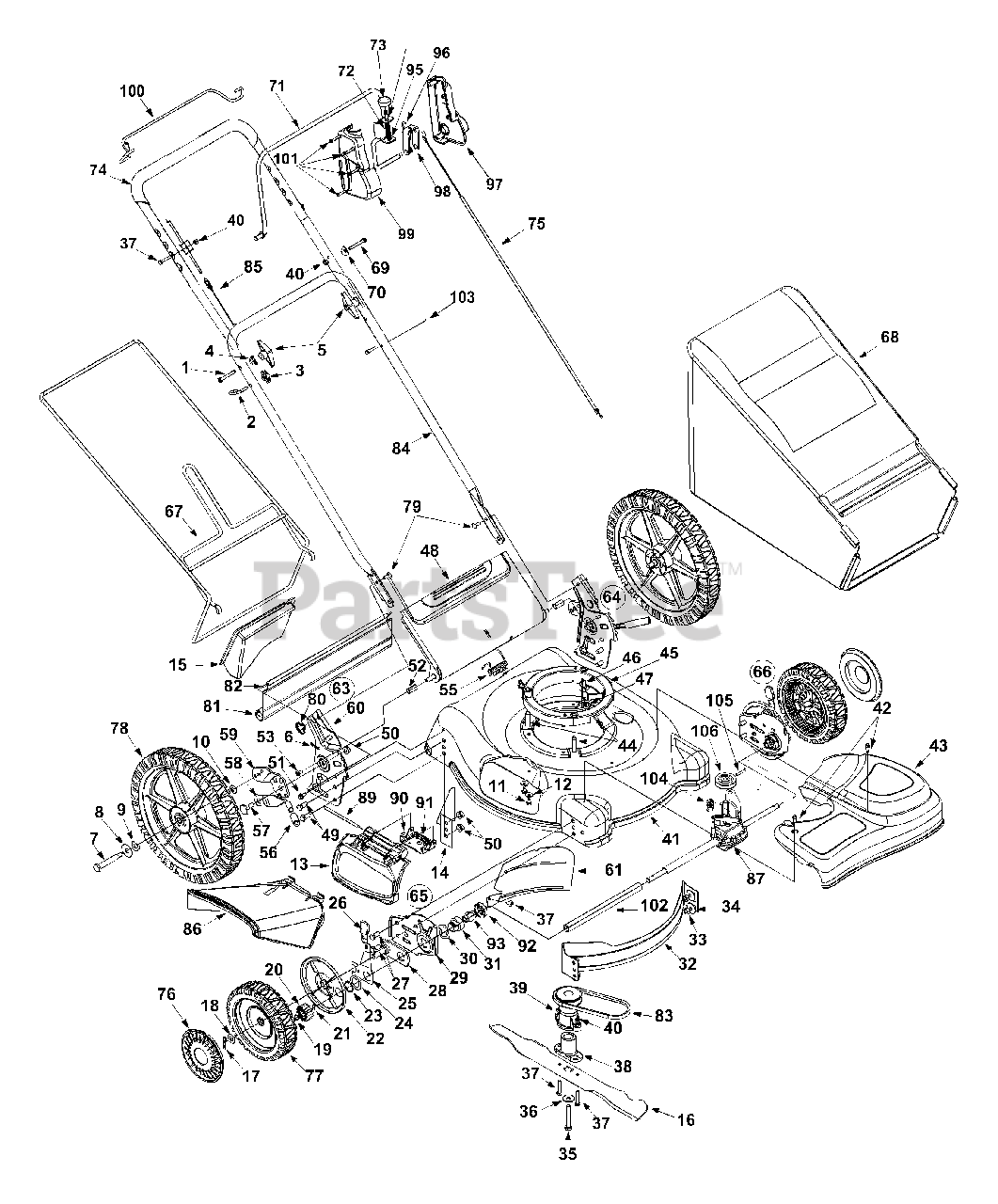

General Assembly (Steel Rear Door) Parts Diagram

  • Title

1

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

5

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

6

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

7

MTD 738-0481A

Shoulder Screw
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

8

MTD 736-0456

Flat Washer .510 I.D. x 1.373 O.D.
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

9

MTD 736-0182

Spring Wash. .500 I.D. x 1.00 O.D.

$4.49

$

In Stock, Qty 7

0

10

MTD 736-0105

Bell Washer .375 I.D. x .870 O.D.

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0599

Tapp Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0270

Bell Wash. .265 I.D. x .75 O.D.

$3.99

$

In Stock, Qty 20+

0

13

MTD 682-7000

Mulching Plug (Hinged)

$

$

Not available

14

MTD 782-5004

Rear Baffle RH
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

15

MTD 782-5007A

Mulching Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

16

MTD 742-0741

Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 742-0641

Standard Blade
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

17

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

18

MTD 736-3013

Flat Washer

$4.49

$

In Stock, only 3 left!

0

19

MTD 736-0865

Snap Ring

$

$

Not available

20

MTD 717-1762

Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear 14T LH

Note: Not shown

$13.99

$

In Stock, only 4 left!

0

21

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

22

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

23

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

24

MTD 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

25

MTD 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever LH

Note: Not shown

$15.99

$

In Stock, only 1 left!

0

26

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

27

MTD 710-0216

Hex Screw

$4.49

$

In Stock, Qty 15

0

28

MTD 682-0509

Pivot Plate Assembly

$

$

Not available

29

MTD 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Note: Not shown

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

30

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

31

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

32

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 712-0798

Hex Nut

$4.49

$

In Stock, Qty 12

0

34

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

35

MTD 710-1257

Hex Bolt

$7.99

$

In Stock, only 1 left!

0

36

MTD 736-0452

Bell Washer

$4.99

$

In Stock, Qty 5

0

37

MTD 710-0606

Hex Screw 1/4-20 x 1.5"

$5.49

$

In Stock, Qty 10

0

38

MTD 748-0411

Blade Adapter
(Superseded to 753-05151)

$67.99

$

Usually ships in 3-6 days

0

39

MTD 756-1146A

Drive Pulley

$57.99

$

Usually ships in 3-6 days

0

40

MTD 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

41

MTD 782-0082A

Rear Dischage Deck 21"

Variations

MTD 782-0082A-0638

No Longer Available DECK 21 RD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0082A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 782-0082A-0650

No Longer Available DECK 21 RD - RED METALLIC (0650)

$

$

Not available

MTD 782-0082A-0662

No Longer Available DECK 21 RD - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0082A-0665

No Longer Available DECK 21 RD - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0082A-0667

No Longer Available DECK 21 RD - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 782-0082A-0689

No Longer Available DECK 21 RD - POLO GREEN (0689)

$

$

Not available

MTD 782-0082A-0691

No Longer Available DECK 21 RD - BLACK JACK (0691)

$

$

Not available

MTD 782-0082A-0698

No Longer Available - HUNTER GREEN (0698)

$

$

Not available

MTD 782-0082A-0709

"No Longer Available DECK 21""RD" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

42

MTD 710-1650

Shld. Screw

$4.99

$

In Stock, Qty 20+

0

43

MTD 731-2600

Transmission Cover
(Superseded to 931-04580)

$

$

Not available

44

MTD 710-1008

TT Screw

$5.49

$

In Stock, Qty 8

0

45

MTD 631-0075B

Engine Spacer Assembly

$

$

Not available

46

MTD 711-1293

Belt Keeper Pin

$4.99

$

Usually ships in 3-6 days

0

47

MTD 712-0271

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

48

MTD 782-7599A

Grassbag Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 710-0216

Hex Hd. Cap Scr. 3/8-16

$4.49

$

In Stock, Qty 15

0

50

MTD 712-0431

Flange L-Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

51

MTD 710-0896

AB Tap Screw 1/4-14 x .625"

$4.49

$

In Stock, Qty 20+

0

52

MTD 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

53

MTD 710-0286

Pan Hd. Screw 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

?54

MTD 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

55

MTD 732-0809

Torsion Spring
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

56

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

57

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

58

MTD 732-0866

Spring Lever

$

$

Not available

59

MTD 17489A

Pivot Bar LH

Note: Not shown

$15.99

$

In Stock, only 1 left!

0

MTD 17488A

Pivot Bar RH

$15.99

$

In Stock, only 3 left!

0

60

MTD 682-3058

Handle Bracket Assembly RH
(Superseded to 753-05922)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3059

Handle Bracket Assembly LH
(Superseded to 753-05922)

Note: Not shown

$114.99

$

Usually ships in 3-6 days

0

61

MTD 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Note: Not shown

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

?62

MTD 710-1017

Scr. AB 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

63

MTD 682-3056A

Handle Brkt. Ass'y Comp. RH

Variations

MTD 682-3056A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

64

MTD 682-3057A

Handlr Brkt. Ass'y Comp. LH
(Superseded to 753-05922)

Variations

MTD 682-3057A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

65

MTD 682-0512A

Height Adjuster Ass'y Comp. RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

66

MTD 682-0511A

Height Adjuster Ass'y Comp. LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

67

MTD 747-0995A

Grassbag Frame
(Superseded to 747-0995A-0637)

Variations

MTD 747-0995A-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

68

MTD 664-0123

Grass Bag w/Half Sail
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

69

MTD 710-0501

Hex Hd. Cap Screw

$7.49

$

Usually ships in 3-6 days

0

70

MTD 710-0451

Saddle Washer

$4.49

$

In Stock, Qty 20+

0

71

MTD 647-0070

Control Handle

Variations

MTD 647-0070-0637

No Longer Available BAIL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 731-2623

Bail Cover

Note: Not shown

$9.49

$

Usually ships in 3-6 days

0

72

MTD 732-1171

Compression Spring

$

$

Not available

73

MTD 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

74

MTD 749-1405A

Upper Handle
(Superseded to 749-1405A-0637)

Variations

MTD 749-1405A-0637

HANDLE-UPR SHORT - POWDER BLACK (0637)

$

$

Not available

$

$

75

MTD 746-1141

Control Cable
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

76

MTD 731-1426

Hub Cap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

77

MTD 734-2042

Wheel 8 x 2
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

78

MTD 734-2043

Wheel 14 x 2

$

$

Not available

79

MTD 710-0703

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

80

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

81

MTD 731-1236

Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

82

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

83

MTD 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

84

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

85

MTD 746-1146

Drive Cable
(Superseded to 946-04026)

$53.99

$

In Stock, Qty 7

0

86

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

87

MTD 618-0657

Transmission Assembly Comp.
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

89

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

90

MTD 782-7006

Hinge Mtg. Brkt.

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

91

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

92

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

93

MTD 741-0604A

Bearing Sleeve .50 I.D.

$12.99

$

In Stock, Qty 12

0

?94

MTD 715-0168

Pin

$

$

Not available

95

MTD 716-0209

Retention Spring

$

$

Not available

96

MTD 732-1172

Torsion Spring

$

$

Not available

97

MTD 731-2532

Control Cover LH

$

$

Not available

98

MTD 782-0156

Lever

$

$

Not available

99

MTD 731-2533

Control Cover RH

$

$

Not available

100

MTD 747-2136

Lower Bail Handle
(Superseded to 747-2136-0637)

Variations

MTD 747-2136-0637

BAIL-DRIVE 21" UND - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

101

MTD 710-1256

Hi-Low Screw

$5.99

$

In Stock, only 2 left!

0

102

MTD 750-1166

Sleeve Spacer LH

Note: Not shown

$4.99

$

Usually ships in 3-6 days

0

MTD 750-1346

Sleeve Spacer RH

$

$

Currently unavailable

103

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

104

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

105

MTD 715-0169

Roll Pin

$

$

Not available

106

MTD 756-1231

Input Pulley

$

$

Not available
