12AS569O063 - Troy-Bilt Tuff-Cut 230 Walk-Behind Mower, Plastic Door (2003) General Assembly Plastic Parts Diagram

Tuff-Cut 230 Walk-Behind Mower, Plastic Door

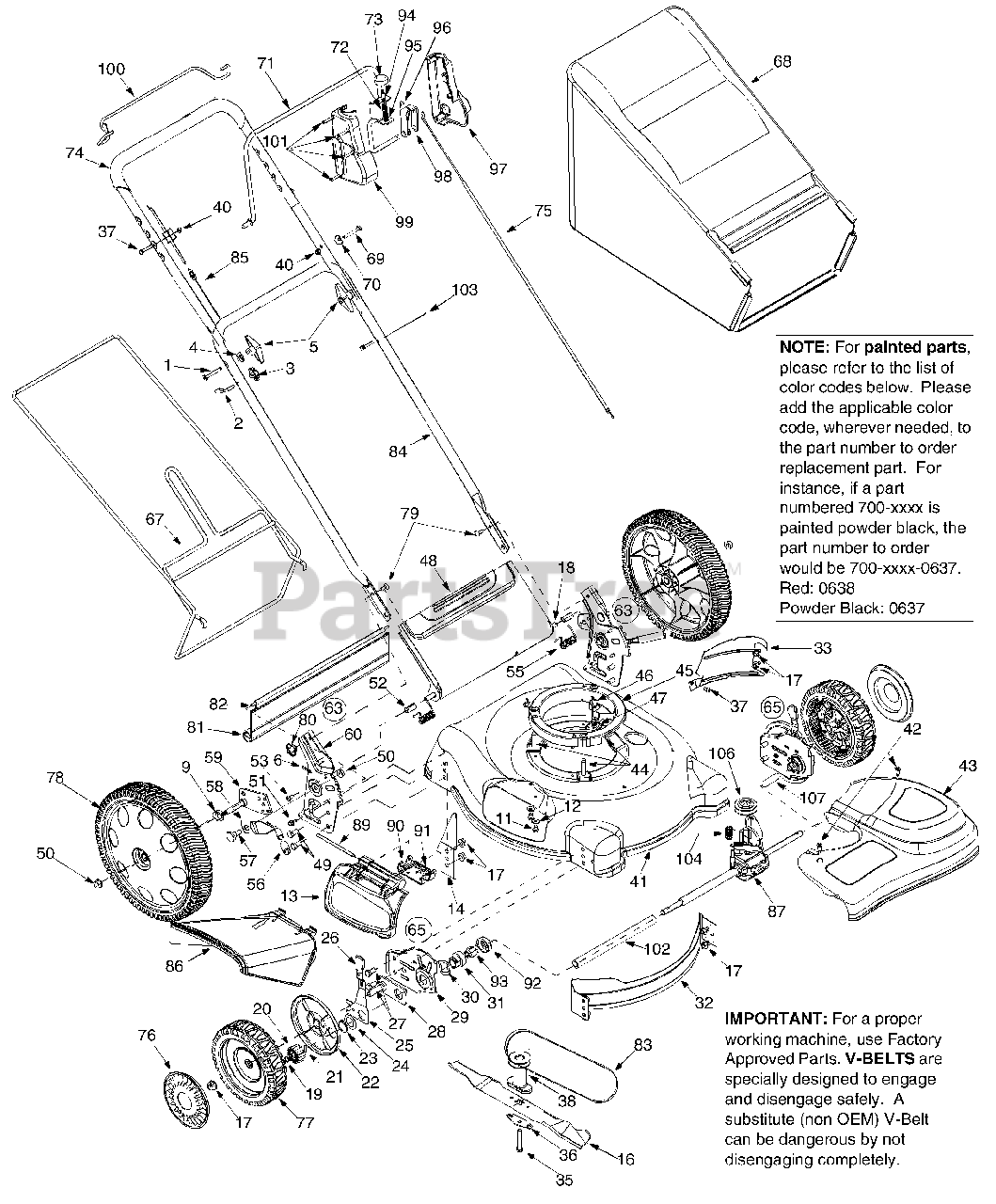

General Assembly Plastic Parts Diagram

  • Title

1

Troy-Bilt 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

5

Troy-Bilt 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-0182

Spring Wash. .500 I.D. x 1.00 O.D.

$4.49

$

In Stock, Qty 7

0

10

Troy-Bilt 736-0105

Bell Washer .375 I.D. x .870 O.D.

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0599

TT Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 736-0270

Bell Wash. .265 I.D. x .75 O.D.

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 687-02055

Mulching Plug (Hinged)
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

14

Troy-Bilt 782-5004

Rear Baffle RH
(Superseded to 782-5004B)

Variations

Troy-Bilt 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 782-5007A

Mulching Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 742-0741

Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0431

Flanged Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 747-0996

Pivot Rod: Chute Door

$32.99

$

Usually ships in 3-6 days

0

19

MTD 736-0865

Snap Ring

$

$

Not available

20

Troy-Bilt 717-1762

Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 717-1761

Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 687-02017

Adj. Lever Assembly LH: Front
(Superseded to 987-02017)

$

$

Not available

25

Troy-Bilt 687-02018

Adj. Lever Assembly RH: Front
(Superseded to 987-02018)

$24.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 710-0216

Hex Screw

$4.49

$

In Stock, Qty 15

0

28

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

29

Troy-Bilt 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Variations

Troy-Bilt 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

29

Troy-Bilt 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

Troy-Bilt 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

32

Troy-Bilt 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

Troy-Bilt 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

33

Troy-Bilt 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

Troy-Bilt 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-1257

Hex Bolt

$7.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 710-0606

Hex Screw 1/4-20 x 1.5"

$5.49

$

In Stock, Qty 10

0

38

Troy-Bilt 748-04015

Blade Adapter/Pulley
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

41

Troy-Bilt 787-01006-0638

Rear Dischage Deck 21"
(Superseded to 753-05203-0638)

$

$

Not available

42

Troy-Bilt 710-1650

Shld. Screw

$4.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 731-2601

Transmission Cover
(Superseded to 931-05132A)

$47.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-1008

TT Sems Screw

$5.49

$

In Stock, Qty 8

0

45

Troy-Bilt 631-0075B

Engine Spacer Assembly

$

$

Not available

46

Troy-Bilt 711-1293

Belt Keeper Pin

$4.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 712-0271

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 731-04134

Grassbag Door - Plastic
(Superseded to 931-04134)

$

$

Not available

49

Troy-Bilt 710-0216

Hex Hd. Cap Scr. 3/8-16

$4.49

$

In Stock, Qty 15

0

50

Troy-Bilt 712-3005

Flange L-Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 710-0896

AB Tap Screw 1/4-14 x .625"

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

53

Troy-Bilt 710-0286

Pan Hd. Screw 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 732-04089

Torsion Spring RH
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 732-04090

Torsion Spring LH
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

57

Troy-Bilt 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

58

MTD 732-0866

Spring Lever

$

$

Not available

59

Troy-Bilt 687-02039

Pivot Bar Assembly LH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 687-02040

Pivot Bar Assembly RH
(Superseded to 987-02336)

$

$

Not available

60

Troy-Bilt 687-02033

Handle Bracket Assembly RH
(Superseded to 987-02033)

$

$

Not available

60

MTD 687-02031

Handle Bracket Assembly LH

$

$

Not available

61

Troy-Bilt 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

Troy-Bilt 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-1017

AB Screw 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

63

MTD 687-02056

Handle Brkt. Ass'y Comp. RH

$

$

Not available

63

MTD 687-02057

Handle Brkt. Ass'y Comp. LH

$

$

Not available

65

Troy-Bilt 682-0512A

Height Adjuster Ass'y Comp. RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 682-0511A

Height Adjuster Ass'y Comp. LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 747-04080

Grassbag Frame
(Superseded to 747-04080A)

Variations

Troy-Bilt 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

68

Troy-Bilt 664-04007

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

69

Troy-Bilt 710-0501

Hex Hd. Cap Screw

$7.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

71

MTD 647-0070

Control Handle: Smart Touch (TM)

Variations

Troy-Bilt 647-0070-0637

BAIL ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

71

Troy-Bilt 731-04203

Bail Cover

$

$

Currently unavailable

72

Troy-Bilt 732-1171

Compression Spring

$

$

Not available

73

Troy-Bilt 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

74

MTD 749-1498

Upper Handle

Variations

Troy-Bilt 749-1498-0637

UPPER HANDLE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

75

Troy-Bilt 746-1141

Control Cable
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

76

Troy-Bilt 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

77

Troy-Bilt 734-04018

Wheel 8 x 2.125
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

78

Troy-Bilt 734-04019

Wheel 14 x 2.125

$70.99

$

In Stock, Qty 20+

0

79

Troy-Bilt 710-0703

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

80

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

81

Troy-Bilt 731-1236

Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

82

Troy-Bilt 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

83

Troy-Bilt 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

84

Troy-Bilt 749-0907B

Lower Handle

Variations

Troy-Bilt 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

85

Troy-Bilt 746-04026

Drive Cable
(Superseded to 946-04026)

$53.99

$

In Stock, Qty 7

0

86

Troy-Bilt 731-04177

SD Chute Deflector

$19.99

$

In Stock, Qty 20+

0

87

Troy-Bilt 753-05465

Transmission Assembly Comp.

Note: Replaces 618-0657

$245.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

90

Troy-Bilt 782-7006

Hinge Mtg. Brkt.

Variations

Troy-Bilt 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

91

Troy-Bilt 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

93

Troy-Bilt 741-0604A

Bearing Sleeve .50 I.D.

$12.99

$

In Stock, Qty 12

0

94

Troy-Bilt 715-0168

Pin

$

$

Not available

95

Troy-Bilt 716-0209

Retention Ring

$

$

Not available

96

Troy-Bilt 732-1172

Torsion Spring

$

$

Not available

97

Troy-Bilt 731-2532

Control Cover LH

$

$

Not available

98

Troy-Bilt 782-0156

Lever

$

$

Not available

99

MTD 731-2533

Control Cover RH

$

$

Not available

100

Troy-Bilt 747-2136

Lower Bail Handle
(Superseded to 747-2136-0637)

Variations

Troy-Bilt 747-2136-0637

BAIL-DRIVE 21" UND - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 710-1256

Hi-Low Screw

$5.99

$

In Stock, only 2 left!

0

102

Troy-Bilt 750-1165

Sleeve Spacer 10.1" Lg.
(Superseded to 750-1210)

$

$

Not available

103

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

104

Troy-Bilt 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

105

Troy-Bilt 751B282611

Engine Shroud
(Superseded to BS-790037)

$

$

Not available

106

Troy-Bilt 756-1231

Input Pulley

$

$

Not available

107

Troy-Bilt 750-1166

Sleeve Spacer 2.1" Lg.

$4.99

$

Usually ships in 3-6 days

0
