12AKD3KH095 - MTD Pro Walk-Behind Mower (2016) Deck Assembly Parts Diagram

Pro Walk-Behind Mower

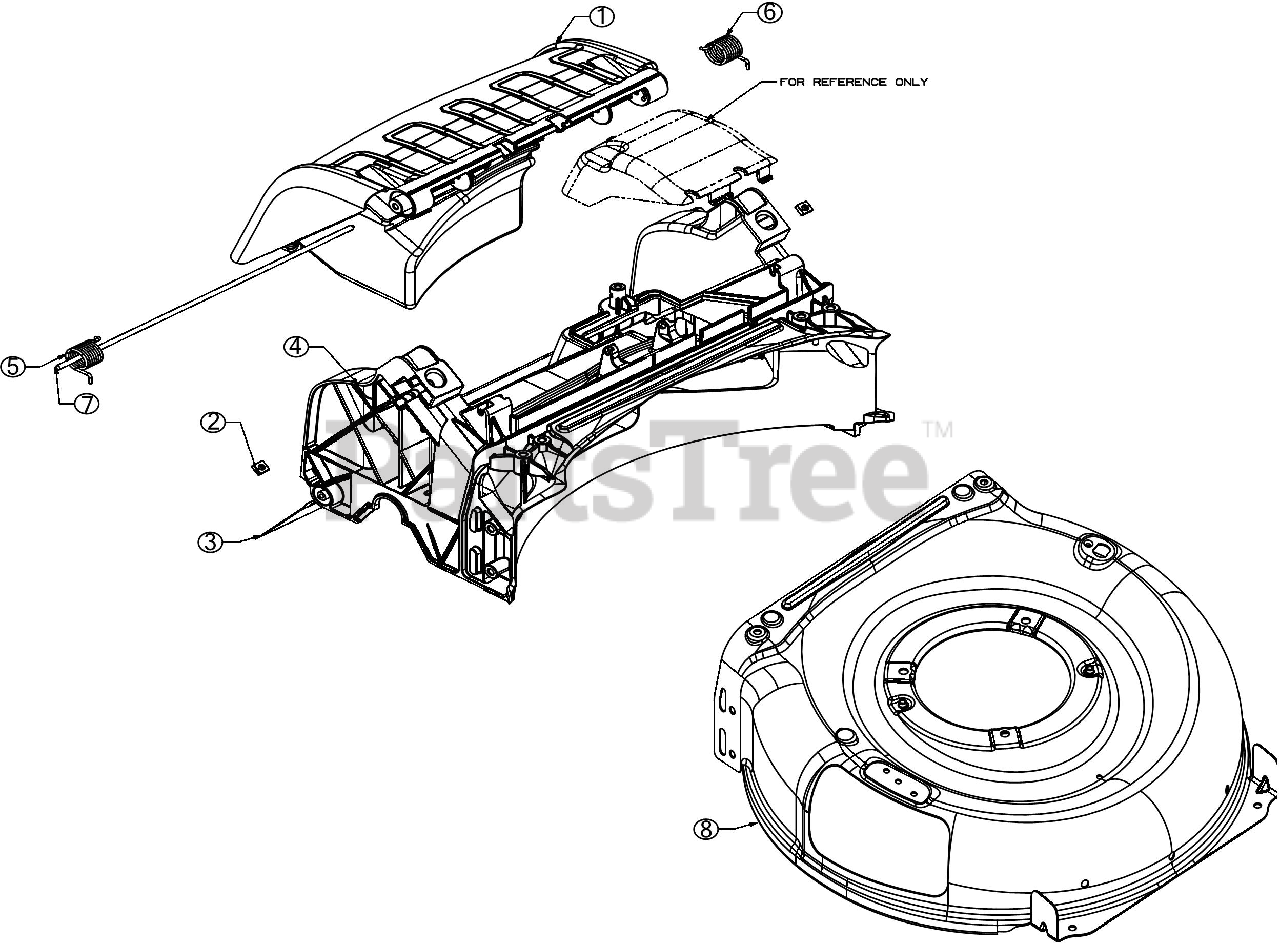

Deck Assembly Parts Diagram

  • Title
1

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04553A)

$

$

Not available

2

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

3

MTD 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 1 left!

0

4

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04553A)

$

$

Not available

5

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

MTD 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

MTD 747-05183

REAR DOOR PIVOT ROD

$3.99

$

Usually ships in 3-6 days

0

8

MTD 787-02002B-0691

21" DECK (3N1)

$143.99

$

Usually ships in 3-6 days

0
