12AJ836L597 - Columbia 21" Walk-Behind Mower (2009) General Assembly Parts Diagram

21" Walk-Behind Mower

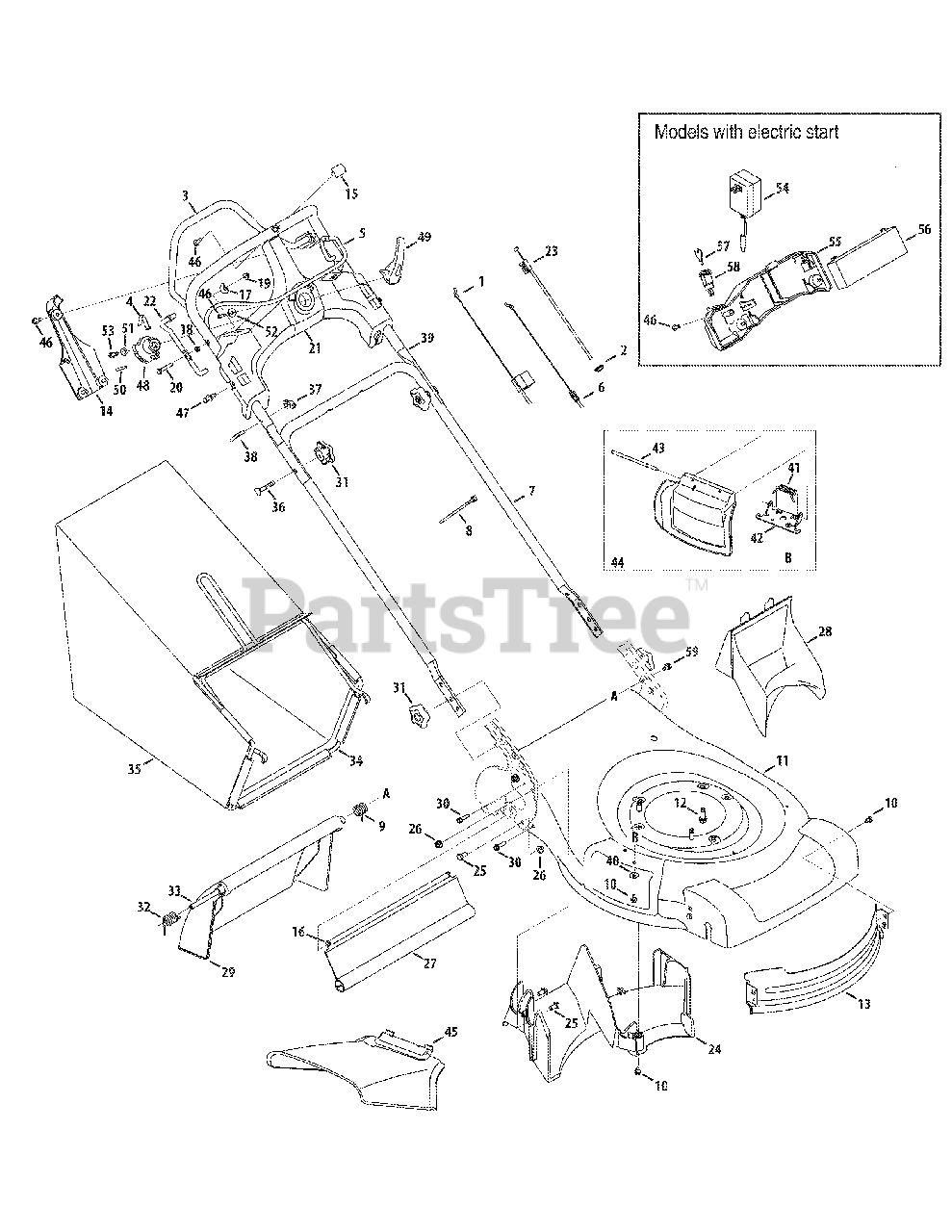

General Assembly Parts Diagram

  • Title

1

White Outdoor 746-04440

Drive Cable
(Superseded to 946-04440)

$20.99

$

In Stock, only 1 left!

0

2

White Outdoor 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

White Outdoor 747-04994

Drive Control Ass'y
(Superseded to 747-05548)

$31.99

$

Usually ships in 3-6 days

0

4

White Outdoor 732-04516

Shift Spring

$8.49

$

Usually ships in 3-6 days

0

5

White Outdoor 747-04995

Blade Control Handle

$28.99

$

Usually ships in 3-6 days

0

6

White Outdoor 746-04438

Control Cable Snap-in 48.9" Lg.
(Superseded to 946-04438)

$22.99

$

Usually ships in 3-6 days

0

7

White Outdoor 749-04555

Lower Handle

$47.99

$

Usually ships in 3-6 days

0

8

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 732-04535

Torsionl Spring LH

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 787-01618-0606

21" Deck

$

$

Not available

12

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 753-06213

Deck Baffle Kit
(Superseded to 753-06213B)

Note: Replaces 787-01346

$

$

Not available

14

White Outdoor 731-06304

Variable Speed Contol Panel Cover

$

$

Not available

15

White Outdoor 731-06305

Variable Speed Contol Panel Cover

$

$

Not available

16

White Outdoor 710-0779A

Screw, #10-16 x .50

$4.49

$

In Stock, Qty 12

0

17

White Outdoor 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

18

White Outdoor 936-0329

L-Wash 1/4 ID

$4.49

$

In Stock, Qty 11

0

19

White Outdoor 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 710-0606

Hex Cap Screw1/4-20 x 1.5" Lg.

$5.49

$

In Stock, Qty 10

0

21

White Outdoor 631-04323

Control Panel

Note: (w/o Electric Start)

$32.99

$

Usually ships in 3-6 days

0

21

White Outdoor 631-04325

Control Panel

Note: (with Electric Start)

$

$

Not available

22

White Outdoor 747-04718A

Bail Pivot Rod - RH

$24.99

$

Usually ships in 3-6 days

0

22

White Outdoor 747-04719A

Bail Pivot Rod LH

$

$

Not available

23

White Outdoor 746-04439

Variable Speed Cable
(Superseded to 946-04439A)

$42.99

$

In Stock, only 3 left!

0

24

White Outdoor 731-06173

Rear Baffle

$49.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

26

White Outdoor 712-04063

Hex Flange L-Nut 5/16-18 Gr. F

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 731-05462A

Trail Shield

$22.99

$

In Stock, only 1 left!

0

28

White Outdoor 731-05157

Rear Mulching Plug

$32.99

$

In Stock, only 3 left!

0

29

White Outdoor 731-05702

Rear Discharge Door
(Superseded to 731-05702A)

$

$

Not available

30

White Outdoor 710-1241

Hex Lock Screw 1/4-15 x 1.0

$6.99

$

In Stock, Qty 18

0

31

White Outdoor 720-04072

Knob - Star 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

32

White Outdoor 732-04534

Torsionl Spring RH

$4.99

$

Usually ships in 3-6 days

0

33

White Outdoor 747-05034

Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

34

White Outdoor 647-04051-0637

Grass Bag Frame
(Superseded to 647-04051B-0637)

$

$

Not available

35

White Outdoor 964-04046A

Grass Bag - Black

$

$

Not available

36

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

37

White Outdoor 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 749-04504

Upper Handle

$54.99

$

Usually ships in 3-6 days

0

40

White Outdoor 736-0270

Cup. Wash. .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 732-1014

Torsionl Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

42

White Outdoor 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

43

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 987-02055

Complete Mulch Plug

$27.99

$

In Stock, Qty 10

0

45

White Outdoor 731-04177

Side Chute Deflector

$19.99

$

In Stock, Qty 20+

0

46

White Outdoor 710-0642

Screw, 1/4-20 x .75

Note: If equipped

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 728-0199

Rivet, plastic

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 731-06189

4 Speed Actuator

$

$

Not available

49

White Outdoor 731-06193

Speed Selector Level
(Superseded to 731-06193A)

$7.99

$

Usually ships in 3-6 days

0

50

White Outdoor 715-04073

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

51

White Outdoor 936-0275

Washer
(Superseded to 736-0275)

$

$

Not available

52

White Outdoor 736-3000

Flat Washer .250 x .750 x .119
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

53

White Outdoor 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

54

White Outdoor 725-04329

Battery Charger
(Superseded to 725-06121B)

Note: If equipped

$47.99

$

In Stock, Qty 11

0

55

White Outdoor 625-04050

Harness Assembly
(Superseded to 625-04050A)

Note: If equipped

$

$

Not available

56

White Outdoor 925-04323

Battery, 12V
(Superseded to 753-10804)

Note: If equipped

$114.99

$

In Stock, only 3 left!

0

57

White Outdoor 925-0201

Ignition Key

Note: If equipped

$9.49

$

In Stock, only 1 left!

0

58

White Outdoor 925-04347

Key Switch

Note: If equipped

$33.99

$

Usually ships in 3-6 days

0

59

White Outdoor 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0
