12AJ836L597 - Columbia 21" Walk-Behind Mower (2008) General Assembly Parts Diagram

21" Walk-Behind Mower

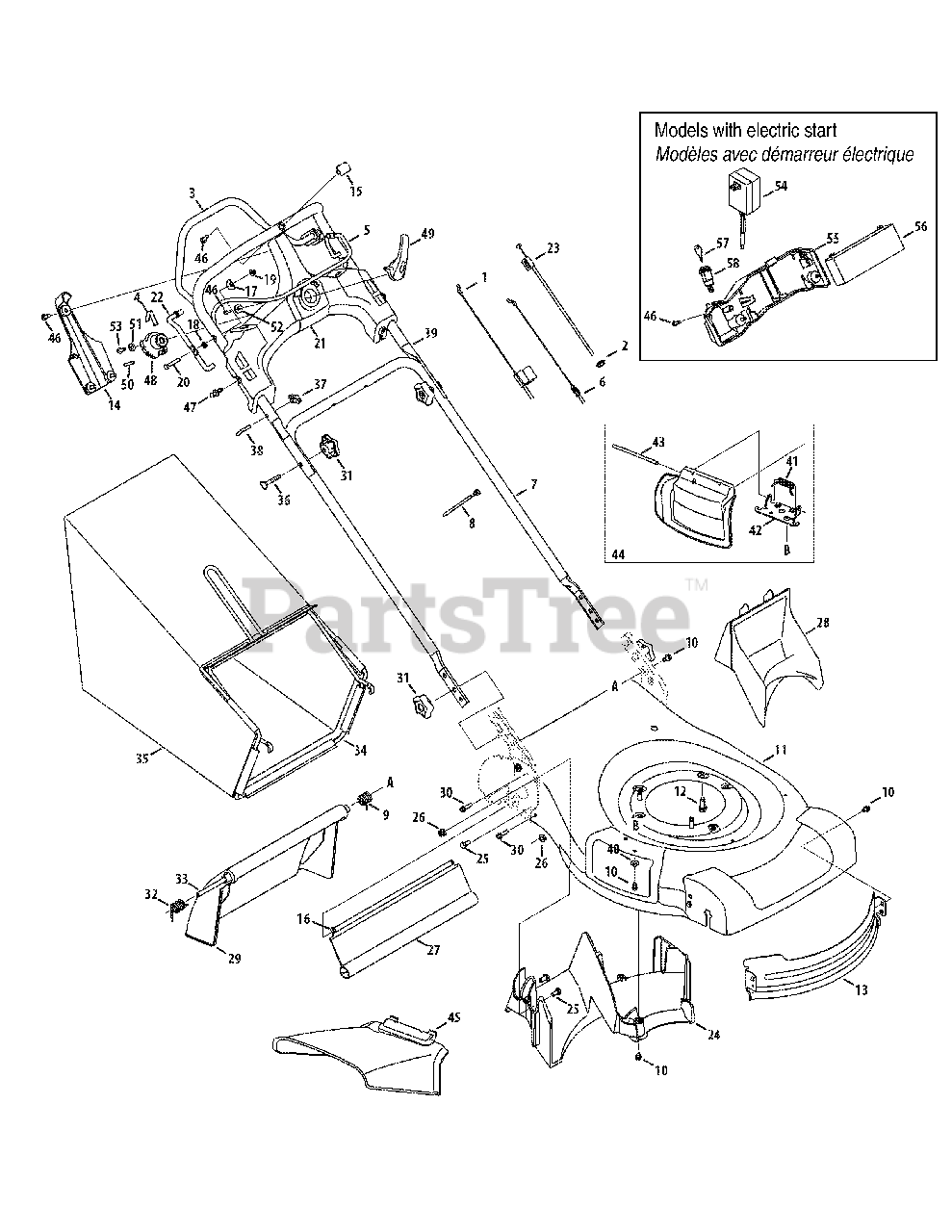

General Assembly Parts Diagram

  • Title

1

White Outdoor 746-04515

Drive Cable
(Superseded to 946-04515)

$32.99

$

Usually ships in 3-6 days

0

2

White Outdoor 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

White Outdoor 687-02416

Drive Control Ass'y
(Superseded to 987-02416)

$

$

Not available

4

White Outdoor 732-04516

Shift Spring

$8.49

$

Usually ships in 3-6 days

0

5

White Outdoor 747-04911A

Blade Control Handle

$

$

Not available

6

White Outdoor 746-04465

Control Cable
(Superseded to 946-04465A)

$25.99

$

Usually ships in 3-6 days

0

7

White Outdoor 749-04037

Lower Handle

Variations

White Outdoor 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

8

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

9

White Outdoor 732-04535

Torsion Spring LH

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 787-01618

21" Deck

Variations

White Outdoor 787-01618-0606

DECK-RD 21" HI WHEEL - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 787-01618-4033

DECK-RD 21" HI WHEEL - FLINT MICA (4033)

$

$

Not available

White Outdoor 787-01618-0638

DECK-RD 21" HI WHEEL - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 787-01618-0665

DECK-RD 21" HI WHEEL - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 787-01618-0689

DECK-RD 21" HI WHEEL - POLO GREEN (0689)

$

$

Not available

White Outdoor 787-01618-0709

DECK-RD 21" HI WHEEL - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

12

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

13

White Outdoor 753-06213

Deck Baffle Kit
(Superseded to 753-06213B)

Note: Replaces 787-01346

$

$

Not available

14

White Outdoor 731-06304

Variabale Speed Contol Panel Cover

$

$

Not available

15

White Outdoor 731-06305

Variabale Speed Contol Panel Cover

$

$

Not available

16

White Outdoor 710-0779A

Screw, #10-16 x .50

$4.49

$

In Stock, Qty 12

0

17

White Outdoor 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

White Outdoor 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 710-0606

Hex Cap Screw1/4-20 x 1.5" Lg.

$5.49

$

In Stock, Qty 9

0

21

White Outdoor 631-04277

Control Panel (w/o Electric Start)
(Superseded to 631-04323)

$32.99

$

Usually ships in 3-6 days

0

21

White Outdoor 631-04276

Control Panel (w/Electric Start)
(Superseded to 631-04325)

$

$

Not available

22

White Outdoor 747-04718

Bail Pivot Rod - RH
(Superseded to 747-04718A)

$24.99

$

Usually ships in 3-6 days

0

22

White Outdoor 747-04719

Bail Pivot Rod LH
(Superseded to 747-04719A)

$

$

Not available

23

White Outdoor 746-04439

Variable Speed Cable
(Superseded to 946-04439A)

$42.99

$

In Stock, only 1 left!

0

24

White Outdoor 731-06173

Rear Baffle

$49.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

26

White Outdoor 712-04063

Hex Flange L-Nut 5/16-18 Gr. F

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 731-05462A

Trail Shield

$22.99

$

In Stock, only 1 left!

0

28

White Outdoor 731-05157

Rear Mulching Plug

$32.99

$

In Stock, only 3 left!

0

29

White Outdoor 731-05017A

Rear Discharge Door
(Superseded to 931-05017A)

$

$

Not available

30

White Outdoor 710-1241

Hex Lock Screw 1/4-15 x 1.0

$6.99

$

In Stock, Qty 19

0

31

White Outdoor 720-04072

Knob - Star 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

32

White Outdoor 732-04534

Torsion Spring RH

$4.99

$

Usually ships in 3-6 days

0

33

White Outdoor 711-04374

Door Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

34

White Outdoor 647-04051

Grass Bag Frame
(Superseded to 647-04051B-0637)

Variations

White Outdoor 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 664-04047

Grass Bag -Generic
(Superseded to 964-04047)

$108.99

$

Usually ships in 3-6 days

0

35

White Outdoor 664-04052A

Grass Bag - WOP Grey

$97.99

$

Usually ships in 3-6 days

0

36

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

37

White Outdoor 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

38

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, only 1 left!

0

39

White Outdoor 749-04436

Upper Handle
(Superseded to 749-04436-0637)

Variations

White Outdoor 749-04436-0637

Upper Handle, 800/1 - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

40

White Outdoor 736-0270

Cup. Wash. .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

42

White Outdoor 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

43

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 687-02055

Complete Mulch Plug
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 8

0

45

White Outdoor 731-04177

Side Chute Deflector

$19.99

$

In Stock, Qty 20+

0

46

White Outdoor 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

47

White Outdoor 728-0199

Rivet, plastic

$4.49

$

In Stock, Qty 15

0

48

White Outdoor 731-06189

4 Speed Actuator

$

$

Not available

49

White Outdoor 731-06193

Speed Selector Level
(Superseded to 731-06193A)

$7.99

$

Usually ships in 3-6 days

0

50

White Outdoor 715-04073

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

51

White Outdoor 736-0275

Washer

$6.99

$

Usually ships in 3-6 days

0

52

White Outdoor 736-3000

Flat Washer .250 x .750 x .119
(Superseded to 936-0176)

$4.99

$

In Stock, Qty 6

0

53

White Outdoor 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

54

White Outdoor 725-04329

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 13

0

55

White Outdoor 625-04050

Har ness Assembly
(Superseded to 625-04050A)

$

$

Not available

56

White Outdoor 725-04323

Battery, 12V
(Superseded to 925-04323)

$114.99

$

In Stock, only 3 left!

0

57

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

58

White Outdoor 725-04347

Key Switch
(Superseded to 925-04347)

$33.99

$

Usually ships in 3-6 days

0
