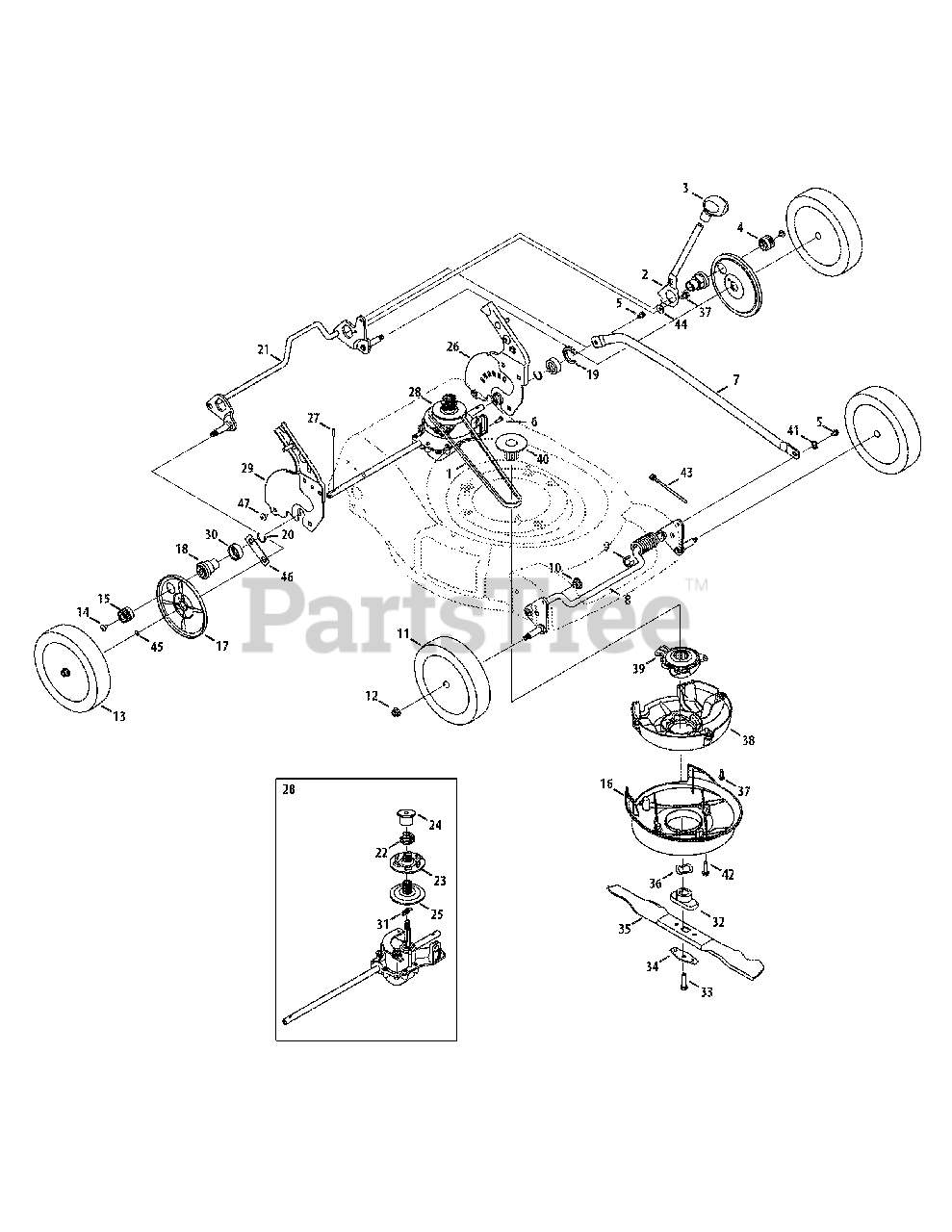

12AJ836L597 - Columbia 21" Walk-Behind Mower (2008) Drive Assembly Parts Diagram

21" Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 954-04176

V-Belt
(Superseded to 954-04176A)

$23.99

$

In Stock, Qty 5

0

2

White Outdoor 732-04338C

Spring Lever

$

$

Not available

3

White Outdoor 720-04096

Foam Grip

$6.49

$

In Stock, only 3 left!

0

4

White Outdoor 917-04540

Spur Gear 14T LH
(Superseded to 917-04540B)

$9.99

$

In Stock, Qty 5

0

5

White Outdoor 738-04278

Shoulder Screw 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

6

White Outdoor 710-04762

Screw, #12-16

$

$

Not available

7

White Outdoor 749-04267A-0637

Cross Bracket

$

$

Not available

8

White Outdoor 687-02204A-0637

Front Bracket Assembly
(Superseded to 687-02204B-0637)

$69.99

$

Usually ships in 3-6 days

0

9

White Outdoor 731-05470

Clip Spacer

$4.99

$

In Stock, only 4 left!

0

10

White Outdoor 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 734-04014B

Fr. Wheel 8 x 2.125 Grey Idle S-Wave
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

12

White Outdoor 712-04065

Hex L-FlangeNut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 934-04430

Rear Wheel Ass'y 8" TVS S-Wave Grey
(Superseded to 753-08092)

$44.99

$

In Stock, only 2 left!

0

14

White Outdoor 710-04531

Pan Scr. 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

15

White Outdoor 917-04539

Spur Gear 14T RH
(Superseded to 917-04539B)

$17.99

$

In Stock, Qty 17

0

16

White Outdoor 731-06284

Baffle

$26.99

$

Usually ships in 3-6 days

0

17

White Outdoor 731-06355

Wheel Dust Cover

$

$

Not available

18

White Outdoor 687-02415

Transmission Bearing Support

$23.99

$

In Stock, only 3 left!

0

19

White Outdoor 731-05872

Clip Spacer

$6.99

$

In Stock, only 4 left!

0

20

White Outdoor 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

21

White Outdoor 687-02314A-0637

Rear Bracket Assembly

$62.99

$

In Stock, only 2 left!

0

22

White Outdoor 732-04527

Compression Spring

$

$

Not available

23

White Outdoor 756-04316

Upper Pulley
(Superseded to 756-04316A)

$

$

Not available

24

White Outdoor 712-04161

Flange Nut

$

$

Not available

25

White Outdoor 756-04317

Lower Pulley

$15.99

$

Usually ships in 3-6 days

0

26

White Outdoor 687-02320-0637

Handle Bracket Ass'y LH
(Superseded to 687-02320)

$27.99

$

Usually ships in 3-6 days

0

27

White Outdoor 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 918-04670

Transmission Assembly
(Superseded to 918-04826A)

$105.99

$

Usually ships in 3-6 days

0

29

White Outdoor 687-02321-0637

Handle Bracket Ass'y LH
(Superseded to 687-02321)

$25.99

$

Usually ships in 3-6 days

0

30

White Outdoor 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

31

White Outdoor 732-04313

Extension spring

$4.99

$

In Stock, only 1 left!

0

32

White Outdoor 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

33

White Outdoor 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

34

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

35

White Outdoor 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

36

White Outdoor 936-0447

Space Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 731-06112

Engine Baffle
(Superseded to 731-06112A)

$23.99

$

Usually ships in 3-6 days

0

39

White Outdoor 956-04046

Lower Pulley Assembly
(Superseded to 956P04046)

$

$

Not available

40

White Outdoor 756-04311A

Pulley Half

$16.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-3012A

Wave Washer

$6.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-04774

Screw 1/4-15 x 1.250

$4.99

$

Usually ships in 3-6 days

0

43

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

44

White Outdoor 736-0242

Cupped Washer .340 x .872 x .080

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 732-04543

Ring, .375 ID x .054

$

$

Not available
