12AI869F066 - Troy-Bilt Walk-Behind Mower (2010) General Assembly 12AI869 Parts Diagram

Walk-Behind Mower

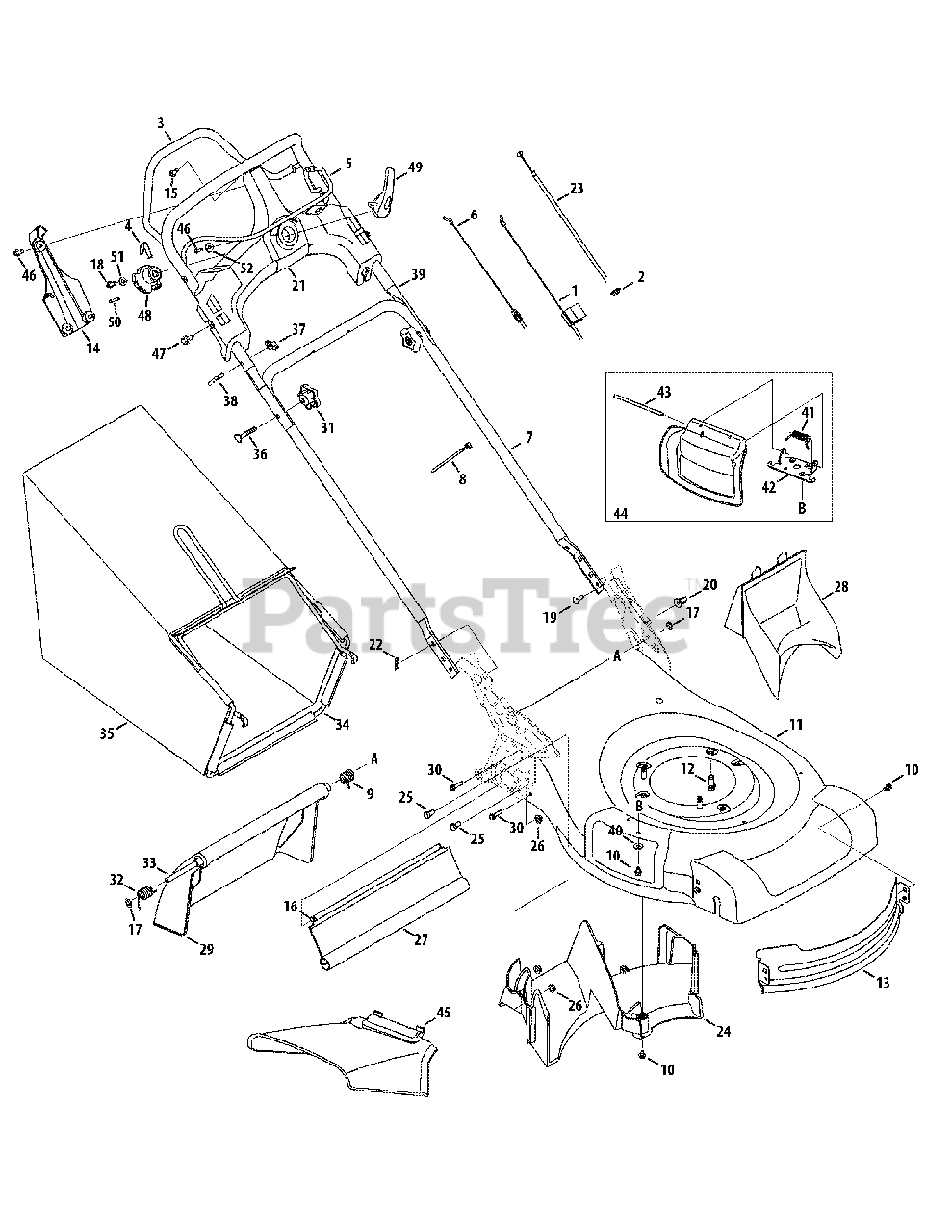

General Assembly 12AI869 Parts Diagram

  • Title

1

Troy-Bilt 946-04438

Control Cable

$22.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

Troy-Bilt 747-05548

Drive Control

$31.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 732-04516

Shift Spring

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 747-04995

Blade Control

$28.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 946-04440

Drive Cable

$20.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 749-04557-0637

Lower Handle

$70.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 732-04535

Torsion Spring, LH

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 787-01618-0638

21-inch Deck

$

$

Not available

12

Troy-Bilt 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 787-01790

Front Deck Baffle
(Superseded to 987-01834)

$47.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 731-06304

Variable Spd. Cont. Panel Cover

$

$

Not available

15

Troy-Bilt 710-0642

Screw, TT, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

17

Troy-Bilt 726-0201

Nut, Speed

$6.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

19

Troy-Bilt 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 631-04323

Variable Speed Control Panel

$32.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 946-04439A

Variable Speed Cable

$42.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 731-06173

Rear Baffle

$49.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-05462A

Trail shield

$22.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 731-05157

Mulch Plug

$32.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 731-05702A

Rear Door

$

$

Not available

30

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 18

0

31

Troy-Bilt 720-04072A

Star Knob

$6.99

$

In Stock, Qty 9

0

32

Troy-Bilt 732-04534

Torsion Spring, RH

$4.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 747-05034

Door Rod

$7.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 647-04051B-0637

Grass Catcher Frame

$

$

Not available

35

Troy-Bilt 964-04101

Grass Catcher

$72.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 749-04607-0637

Upper Handle

$

$

Not available

40

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0

45

Troy-Bilt 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

47

Troy-Bilt 710-0896

Screw, AB, 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 731-06189

4 Speed Actuator

$

$

Not available

49

Troy-Bilt 731-06193A

Speed Selector Level

$7.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 715-04073

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 936-0275

Washer, Flat, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

52

Troy-Bilt 736-3000

Washer, Flat, .250 x .750 x .119
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0
