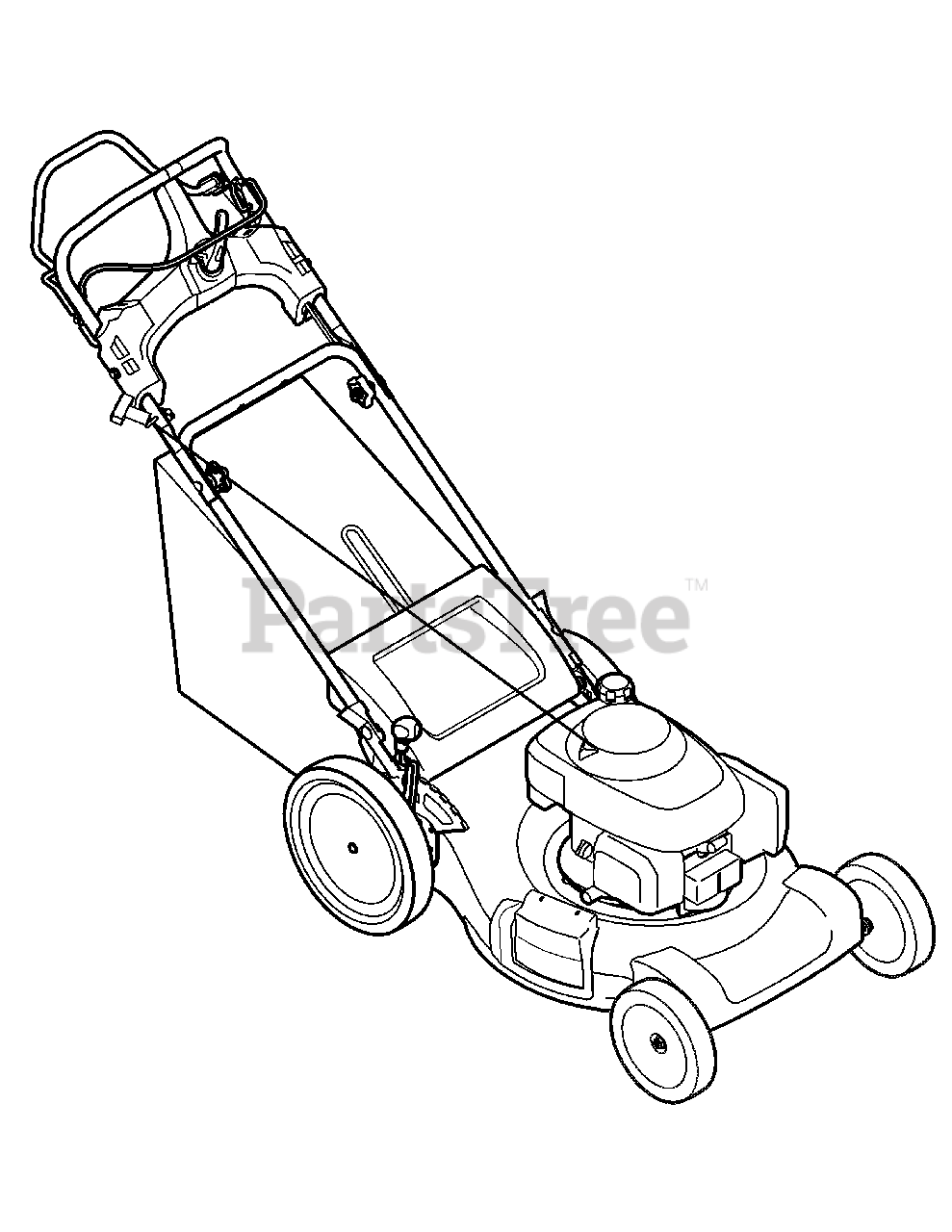

12AI865Q711 - Troy-Bilt Walk-Behind Mower (2008) .Quick Reference Parts Diagram

Walk-Behind Mower

.Quick Reference Parts Diagram

  • Title

Troy-Bilt 490-250-0009

Spark Plug
(Superseded to FF-22)

$

$

Not available

NA

Pre-Filter

$

$

Not available

Honda 17211-ZL8-023

Air Filter

$6.49

$

In Stock, Qty 20+

0

Honda 17620-ZL8-013

Fuel Cap
(Superseded to 17620-ZL8-023)

$5.99

$

In Stock, Qty 16

0

Troy-Bilt 954-04176

Drive Belt
(Superseded to 954-04176A)

$23.99

$

In Stock, Qty 5

0

Troy-Bilt 746-04440

Control Cable
(Superseded to 946-04440)

Note: (brake)

$20.99

$

In Stock, only 1 left!

0

Troy-Bilt 746-04438

Drive Cable
(Superseded to 946-04438)

$22.99

$

Usually ships in 3-6 days

0

Troy-Bilt 746-04439

Variable Speed Cable
(Superseded to 946-04439A)

$42.99

$

In Stock, only 3 left!

0

Troy-Bilt 942-0741

Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

Troy-Bilt 710-1044

Blade Bolt

$3.99

$

In Stock, only 1 left!

0

Troy-Bilt 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

Troy-Bilt 736-0447

Blade Bell Support

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 734-04014B

Deck Wheels
(Superseded to 753-08175)

Note: (Front)

$43.99

$

In Stock, Qty 18

0

Troy-Bilt 634-04404

Deck Wheels
(Superseded to 934-04404)

Note: (Back)

$

$

Not available

NA

Ignition Key

$

$

Not available

Troy-Bilt 964-04045

Grass Bag

$114.99

$

In Stock, Qty 6

0

Troy-Bilt 647-04051

Grass Bag Frame
(Superseded to 647-04051B-0637)

Variations

Troy-Bilt 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

Troy-Bilt 731-05462A

Trailshield

$22.99

$

In Stock, only 1 left!

0

Troy-Bilt 731-04177

Discharge Chute

$19.99

$

In Stock, Qty 20+

0

Troy-Bilt 687-02055

Mulch Plug Assembly
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0
