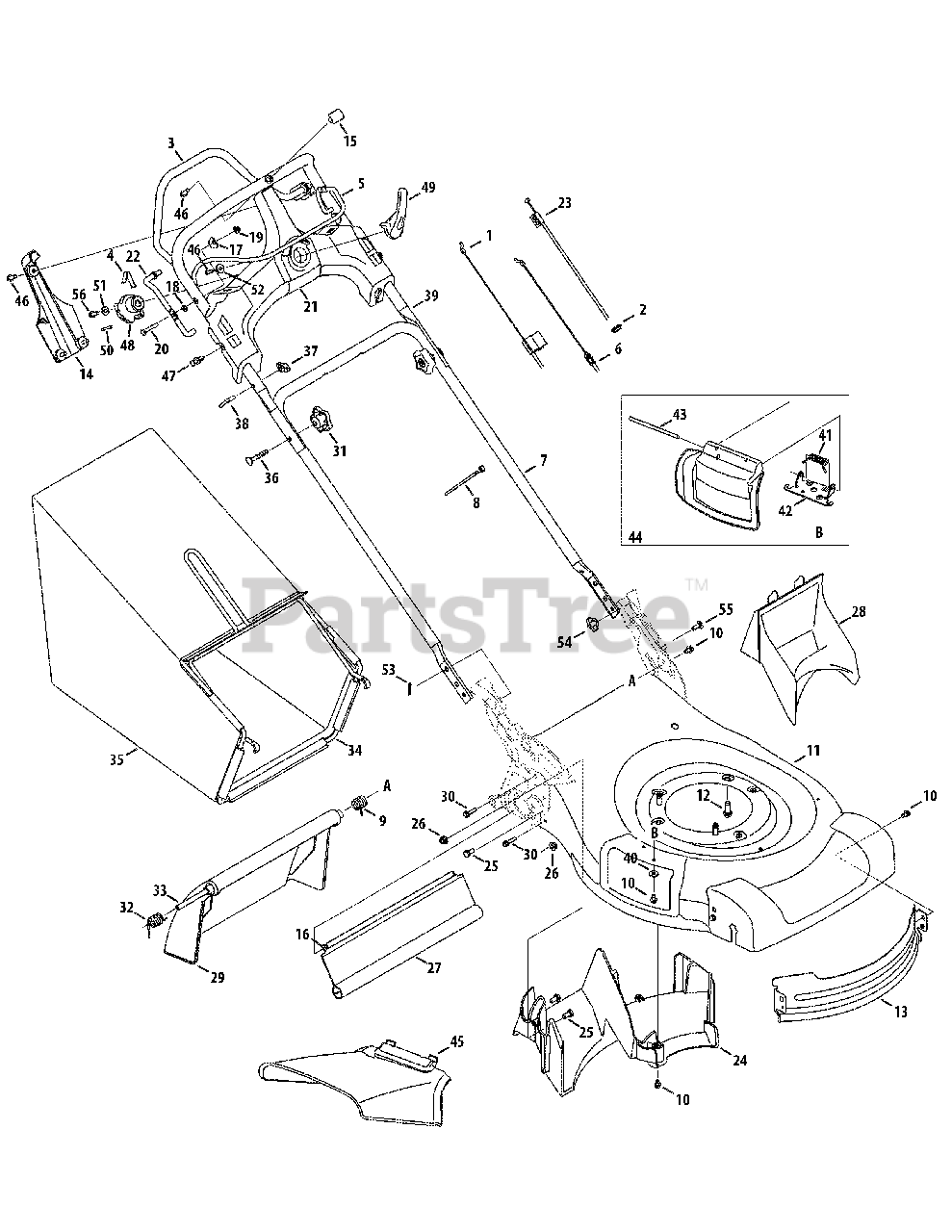

12AI865Q711 - Troy-Bilt Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 746-04438

Drive Cable
(Superseded to 946-04438)

$22.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

Troy-Bilt 687-02398

Drive Control
(Superseded to 987-02417A)

$

$

Not available

4

Troy-Bilt 732-04516

Shift Spring

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 747-04917A

Blade Control

$25.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 746-04440

Control Cable
(Superseded to 946-04440)

$20.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 749-04435

Lower Handle
(Superseded to 749-04435A)

Variations

Troy-Bilt 749-04435-0637

Lower Handle, 800 - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 732-04265

Torsion Spring, LH

$10.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 787-01618

21-inch Deck

Variations

Troy-Bilt 787-01618-0606

DECK-RD 21" HI WHEEL - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 787-01618-4033

DECK-RD 21" HI WHEEL - FLINT MICA (4033)

$

$

Not available

Troy-Bilt 787-01618-0638

DECK-RD 21" HI WHEEL - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01618-0665

DECK-RD 21" HI WHEEL - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 787-01618-0689

DECK-RD 21" HI WHEEL - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 787-01618-0709

DECK-RD 21" HI WHEEL - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

12

Troy-Bilt 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

13

Troy-Bilt 787-01346

Front Deck Baffle
(Superseded to 987-01834)

$47.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 731-06304

Variable Speed Cont. Panel Cover

$

$

Not available

15

Troy-Bilt 731-06305

Variable Speed Cont. Panel Cover

$

$

Not available

16

Troy-Bilt 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

17

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

18

Troy-Bilt 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

21

Troy-Bilt 631-04277

Variable Speed Control Panel
(Superseded to 631-04323)

$32.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 747-04718

Bail Pivot Rod - RH
(Superseded to 747-04718A)

$24.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 747-04719

Bail Pivot Rod - LH
(Superseded to 747-04719A)

$

$

Not available

23

Troy-Bilt 746-04439

Variable Speed Cable
(Superseded to 946-04439A)

$42.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 731-06173

Rear Baffle

$49.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

27

Troy-Bilt 731-05462A

Trailshield

$22.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 731-05157

Mulch Plug

$32.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 731-05017A

Rear Door
(Superseded to 931-05017A)

$

$

Not available

30

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 18

0

31

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 732-04264

Torsion Spring, RH

$10.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 711-04374

Door Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 647-04051

Grass Catcher Frame
(Superseded to 647-04051B-0637)

Variations

Troy-Bilt 647-04051-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

35

Troy-Bilt 664-04045

Grass Catcher
(Superseded to 964-04045)

$114.99

$

In Stock, Qty 6

0

36

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 749-04436

Upper Handle
(Superseded to 749-04436-0637)

Variations

Troy-Bilt 749-04436-0637

Upper Handle, 800/1 - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 687-02055

Mulch Plug Assembly
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

45

Troy-Bilt 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

47

Troy-Bilt 728-0199

Rivet, Plastic

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 731-06189

4 Speed Actuator

$

$

Not available

49

Troy-Bilt 731-06193

Speed Selector Level
(Superseded to 731-06193A)

$7.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 715-04073

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 736-0463

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, Qty 12

0

52

Troy-Bilt 736-3000

Washer, Flat, .250 x .750 x .119
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

53

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 15

0

56

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0
