12AI836N211 - Troy-Bilt Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

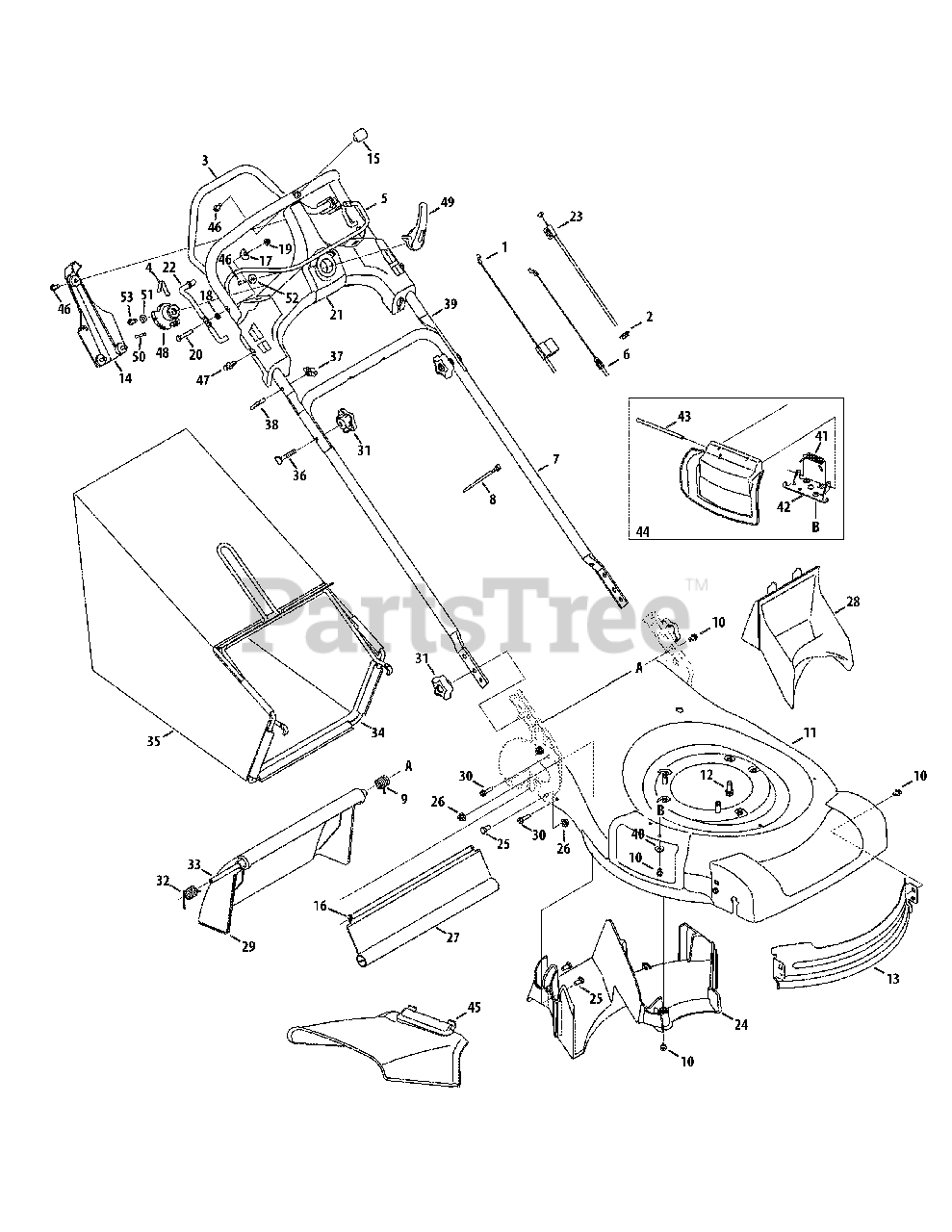

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 946-04464

Drive Cable

$45.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

Troy-Bilt 987-02417A

Drive Control

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 987-02417A-0637

Drive Bail Assembly, Ergo 4 - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 987-02417A-0638

Drive Bail Assembly, Ergo 4 - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 987-02417A-4021

Drive Bail Assembly, Ergo 4 - CUB YELLOW 2 (4021)

$

$

Not available

$

$

4

Troy-Bilt 732-04516

Shift Spring

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 747-04917A

Blade Control

$25.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 946-04465A

Control Cable

$25.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 749-04037

Lower Handle

Variations

Troy-Bilt 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

8

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 732-04265

Torsion Spring, LH

$10.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 787-01618

21-inch Deck

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 787-01618-0606

DECK-RD 21" HI WHEEL - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 787-01618-4033

DECK-RD 21" HI WHEEL - FLINT MICA (4033)

$

$

Not available

Troy-Bilt 787-01618-0638

DECK-RD 21" HI WHEEL - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01618-0665

DECK-RD 21" HI WHEEL - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 787-01618-0689

DECK-RD 21" HI WHEEL - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 787-01618-0709

DECK-RD 21" HI WHEEL - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

12

Troy-Bilt 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 987-01834

Front Deck Baffle

$47.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 731-06304

Variable Speed Cont. Panel Cover

$

$

Not available

15

Troy-Bilt 731-06305

Variable Speed Cont. Panel Cover

$

$

Not available

16

Troy-Bilt 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

17

Troy-Bilt 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

18

Troy-Bilt 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 11

0

19

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

21

Troy-Bilt n/a

Variable Speed Control Panel

$

$

Currently unavailable

22

Troy-Bilt 747-04718A

Bail Pivot Rod - RH

$24.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 747-04719A

Bail Pivot Rod - LH

$

$

Not available

23

Troy-Bilt 946-04439A

Variable Speed Cable

$42.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 731-06173

Rear Baffle

$49.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

26

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-05462A

Trailshield

$22.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 731-05157

Mulch Plug

$32.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 931-05017A

Rear Door

$

$

Not available

30

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 18

0

31

Troy-Bilt 720-04072A

Star Knob

$6.99

$

In Stock, Qty 9

0

32

Troy-Bilt 732-04264

Torsion Spring, RH

$10.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 711-04374

Door Pivot Rod

$33.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 647-04051B-0637

Grass Catcher Frame

$

$

Not available

35

Troy-Bilt 964-04045

Grass Catcher

$114.99

$

In Stock, Qty 6

0

36

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 749-04436-0637

Upper Handle

$49.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0

45

Troy-Bilt 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

47

Troy-Bilt 728-0199

Rivet, Plastic

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 731-06189

4 Speed Actuator

$

$

Not available

49

Troy-Bilt 731-06193A

Speed Selector Level

$7.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 715-04073

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 936-0463

Washer, Flat, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

52

Troy-Bilt 936-0176

Washer, Flat, .250 x .750 x .119
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

53

Troy-Bilt 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0
