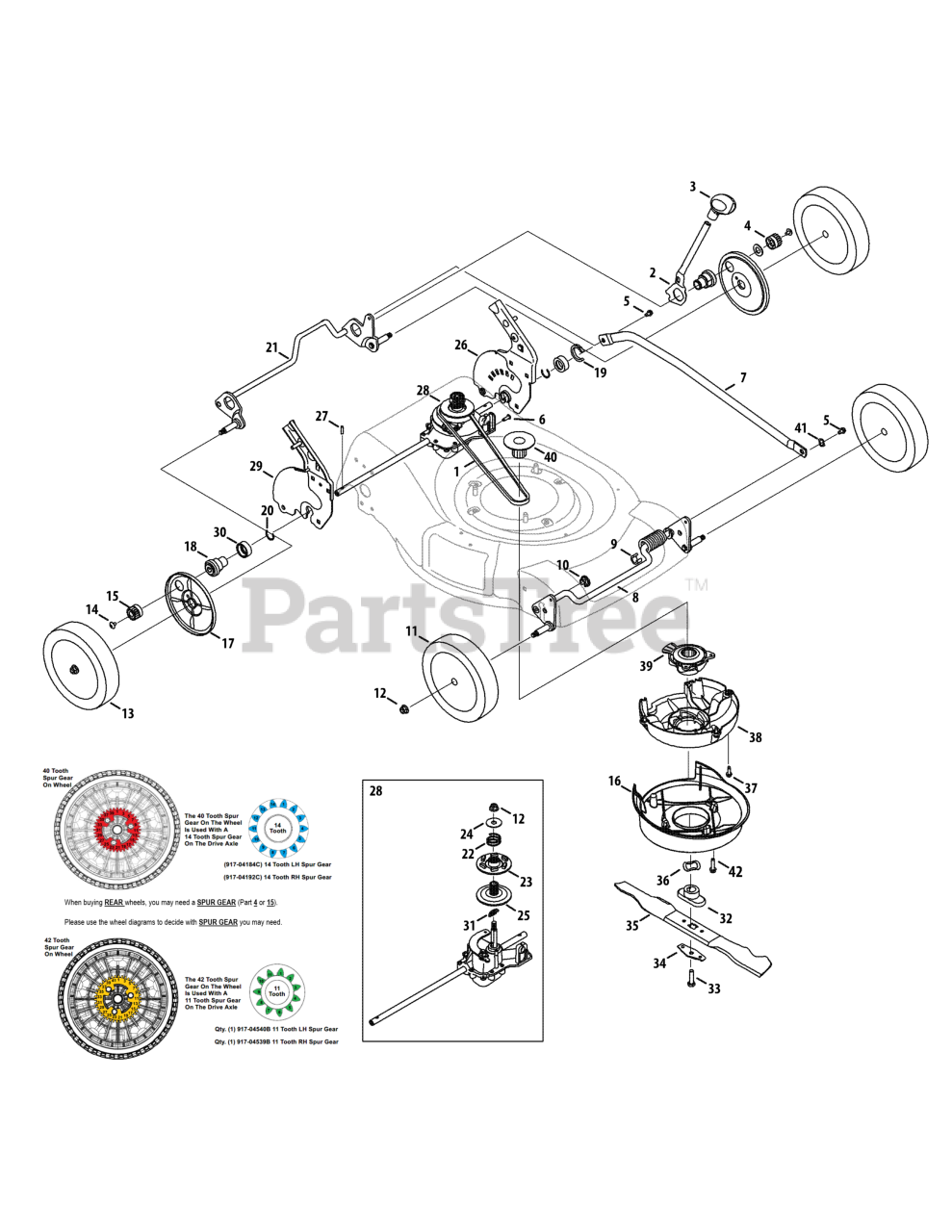

12AI836N211 - Troy-Bilt Walk-Behind Mower (2008) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title
1

Troy-Bilt 754-04176

V-Belt
(Superseded to 954-04176A)

$23.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 732-04338B

Spring Lever
(Superseded to 732-04338C)

$

$

Not available

3

$6.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 717-04540

Spur Gear, 14T - LH
(Superseded to 917-04540B)

$9.99

$

In Stock, Qty 5

0

5

Troy-Bilt 738-04278

Shldr. Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

6

Troy-Bilt 710-04373A

Screw, #12-16 x .750

$4.49

$

In Stock, Qty 15

0

7

Troy-Bilt 749-04267A

Cross Bracket
(Superseded to 749-04267A-0637)

Variations

Troy-Bilt 749-04267A-0637

Cross Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

8

Troy-Bilt 687-02204

Front Bracket Assembly
(Superseded to 687-02204B)

Variations

Troy-Bilt 687-02204-0637

Front Bracket Assembly Black - POWDER BLACK (0637)

$69.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-05470

Clip Spacer

$4.99

$

In Stock, Qty 6

0

10

Troy-Bilt 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

12

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 634-04430

Rear Wheel
(Superseded to 753-08092)

$44.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 717-04539

Spur Gear, 14T - RH
(Superseded to 917-04539B)

$17.99

$

In Stock, Qty 17

0

$26.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06355

Wheel Dust Cover

$

$

Not available

18

Troy-Bilt 687-02415

Transmission Bearing Support

$23.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 731-05872

Clip Spacer

$6.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

21

Troy-Bilt 687-02314

Rear Bracket Assembly
(Superseded to 687-02314A-0637)

Variations

Troy-Bilt 687-02314-0637

Pivot Bracket Assembly, Rear - POWDER BLACK (0637)

$62.99

$

In Stock, only 2 left!

0

$62.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 732-04482

Compression Spring

$

$

Not available

23

Troy-Bilt 756-04316

Upper Pulley
(Superseded to 756-04316A)

$

$

Not available

24

Troy-Bilt 736-0406

Flat Washer, .442 x 1.38 x .060
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

25

Troy-Bilt 756-04317

Lower Pulley

$15.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 687-02320

Handle Bracket Assembly LH

Variations

Troy-Bilt 687-02320-0637

Handle Bracket Assembly - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 918-04670

Transmission Assembly
(Superseded to 918-04826A)

$105.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 687-02321

Handle Bracket Assembly RH

Variations

Troy-Bilt 687-02321-0637

BRACKET ASM-HANDLE - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

31

Troy-Bilt 732-04313

Extension Spring

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 8

0

34

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

35

Troy-Bilt 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 736-0447

Washer, Wave, 1.5 x 1.0 x .029

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-06112

Engine Baffle
(Superseded to 731-06112A)

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 656-04046

Lower Pulley Assembly
(Superseded to 956P04046)

$

$

Not available

40

Troy-Bilt 756-04311

Pulley, Half
(Superseded to 756-04311A)

$16.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 736-3012A

Washer, Wave, .390 x .625 x .016

$6.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 16

0
