12AI832Q766 - Troy-Bilt Walk-Behind Mower (2010) Drive Assembly 12AI832Q Parts Diagram

Walk-Behind Mower

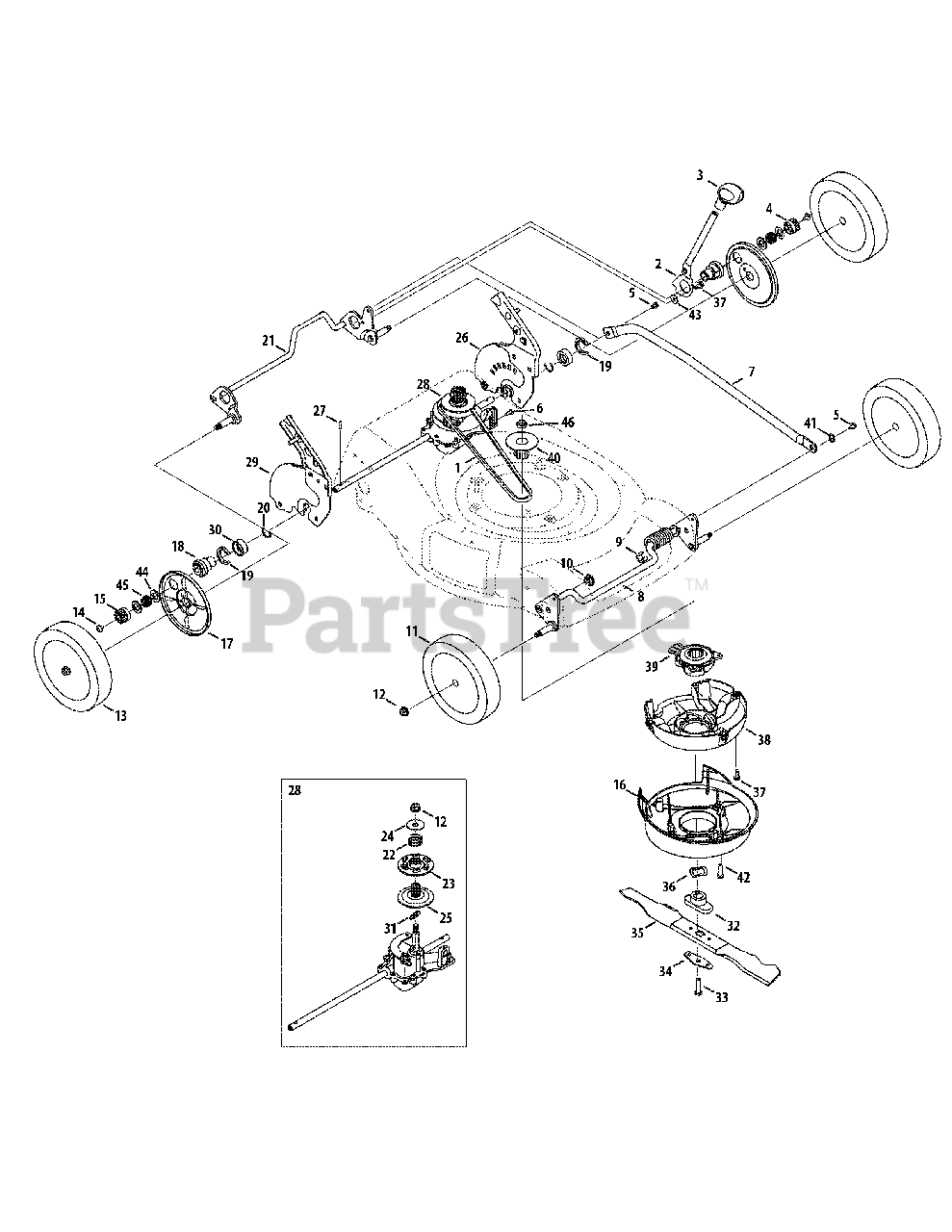

Drive Assembly 12AI832Q Parts Diagram

  • Title

1

Troy-Bilt 954-04176A

V-Belt

$23.99

$

In Stock, Qty 5

0

2

Troy-Bilt 732-04338C

Spring Lever

$

$

Not available

3

Troy-Bilt 720-04113

Height Adjuster Knob - Red

$10.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 917-04540B

Spur Gear, 14T - LH

$9.99

$

In Stock, Qty 5

0

5

Troy-Bilt 738-04278

Shldr. Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

6

Troy-Bilt 710-0895

Screw, HL, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 749-04267A-0637

Cross Bracket

$

$

Not available

8

Troy-Bilt 687-02204B-0637

Front Bracket Assembly

$69.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-05470

Clip Spacer

$4.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

12

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 934-04430

Rear Wheel
(Superseded to 753-08092)

$44.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 917-04539B

Spur Gear, 14T - RH

$17.99

$

In Stock, Qty 17

0

16

Troy-Bilt 731-06284

Baffle

$26.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06974

Wheel Dust Cover

$6.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 687-02415

Transmission Bearing Support

$23.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 731-05872

Clip Spacer

$6.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

21

Troy-Bilt 687-02314A-0637

Rear Bracket Assembly

$62.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 732-04630

Compression Spring

$4.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 756-04316A

Upper Pulley

$

$

Not available

24

Troy-Bilt 936-0406

Flat Washer, .442 x 1.38 x .060

$6.99

$

In Stock, Qty 11

0

25

Troy-Bilt 756-04317A

Lower Pulley

$14.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 687-02322-0637

Handle Bracket Assembly LH
(Superseded to 687-02322)

$

$

Not available

27

Troy-Bilt 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 918-04826A

Transmission Assembly

$105.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 687-02323-0637

Handle Bracket Assembly RH

$

$

Not available

30

Troy-Bilt 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

31

Troy-Bilt 732-04313

Extension Spring

$4.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 936-0447

Washer, Wave, 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 731-06112A

Engine Baffle

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 956-04046

Lower Pulley Assembly
(Superseded to 956P04046)

$

$

Not available

40

Troy-Bilt 756-04311A

Pulley, Half

$16.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 736-04413

Wash., Wave, .385 ID x .598 OD

$3.99

$

In Stock, Qty 5

0

42

Troy-Bilt 710-04774

Screw, 1/4-15 x 1.250

$4.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 736-0242

Washer, Bell, .340 x .872 x .080

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 936-0369

Washer, Flat, .508 x 1.00 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 732-04650

Spr, Wave

$10.99

$

In Stock, only 2 left!

0

46

Troy-Bilt 750-05007

Spcr., 25mm x 1.375

$4.99

$

Usually ships in 3-6 days

0
