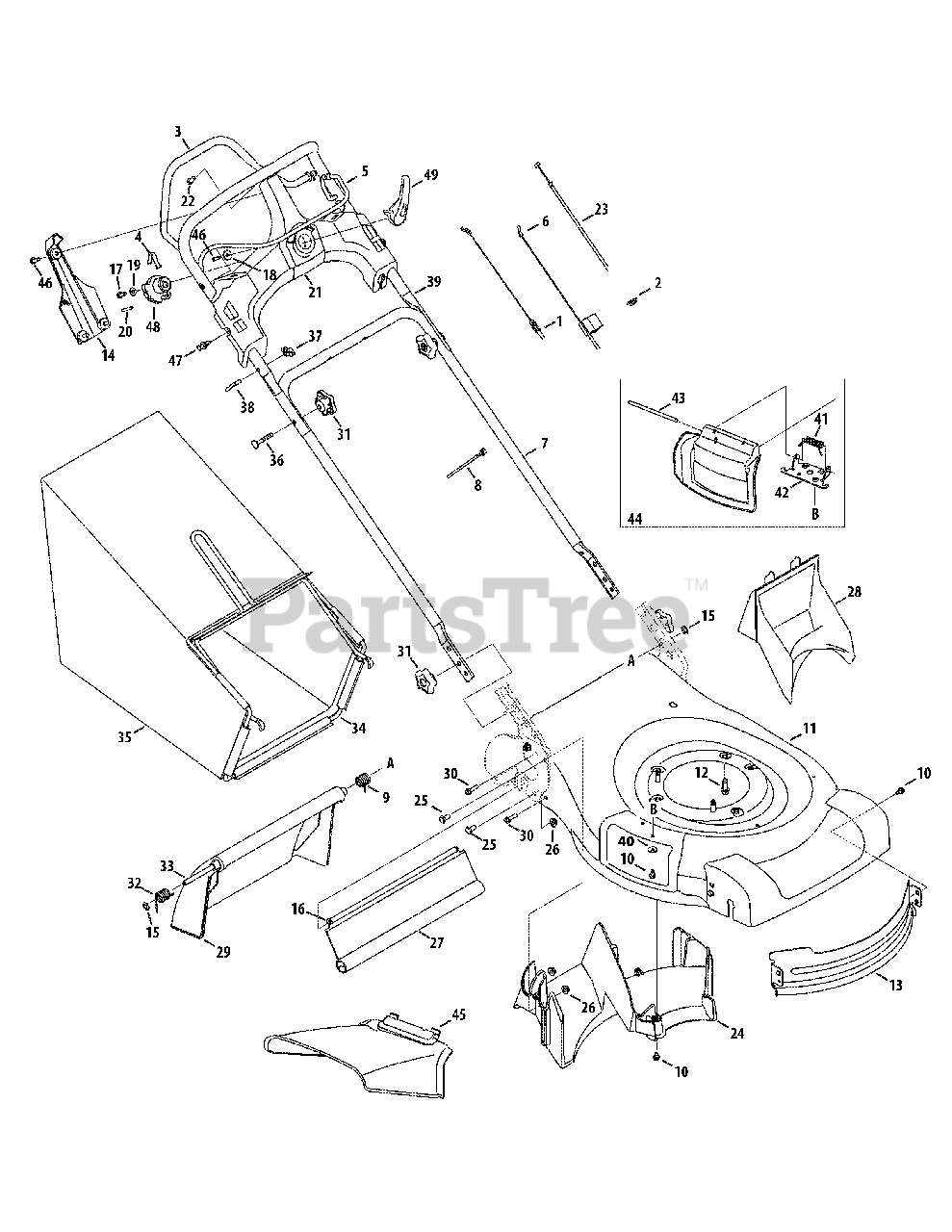

12AI832Q724 - MTD Platinum Walk-Behind Mower (2009) General Assembly Parts Diagram

Platinum Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 746-04440

Drive Cable
(Superseded to 946-04440)

$20.99

$

In Stock, only 1 left!

0

2

MTD 735-04059

Rubber Grommet

$4.99

$

In Stock, Qty 11

0

3

MTD 747-04994

Drive Control
(Superseded to 747-05548)

$31.99

$

Usually ships in 3-6 days

0

4

MTD 732-04516

Shift Spring

$8.49

$

Usually ships in 3-6 days

0

5

MTD 747-04995

Blade Control

$28.99

$

Usually ships in 3-6 days

0

6

MTD 746-04438

Control Cable
(Superseded to 946-04438)

$22.99

$

Usually ships in 3-6 days

0

7

MTD 749-04555

Lower Handle

$47.99

$

Usually ships in 3-6 days

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

MTD 732-04535

Torsion Spring, LH

$4.99

$

Usually ships in 3-6 days

0

10

MTD 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

MTD 787-01618-0629

21-inch Deck

$

$

Currently unavailable

12

MTD 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

13

MTD 787-01346

Front Deck Baffle
(Superseded to 987-01834)

$47.99

$

In Stock, only 1 left!

0

14

MTD 731-06304

Variable Spd. Cont. Panel Cover

$

$

Not available

15

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

16

MTD 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

17

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

18

MTD 736-3000

Washer, Flat, .250 x .750 x .119
(Superseded to 936-0176)

$4.99

$

In Stock, only 4 left!

0

19

MTD 936-0275

Washer, Flat, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

20

MTD 715-04073

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

21

MTD 731-06875

Variable Speed Control Panel
(Superseded to 631-04326)

$

$

Not available

22

MTD 710-1017

Screw, AB, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

23

MTD 746-04439

Variable Speed Cable
(Superseded to 946-04439A)

$42.99

$

In Stock, only 3 left!

0

24

MTD 731-06173

Rear Baffle

$49.99

$

Usually ships in 3-6 days

0

25

MTD 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

26

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

27

MTD 731-05462A

Trail Shield

$22.99

$

In Stock, only 1 left!

0

28

MTD 731-05157

Rear Mulching Baffle

$32.99

$

In Stock, only 3 left!

0

29

MTD 731-05702

Rear Door
(Superseded to 731-05702A)

$

$

Not available

30

MTD 710-1241

Screw, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 18

0

31

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

32

MTD 732-04534

Torsion Spring, RH

$4.99

$

Usually ships in 3-6 days

0

33

MTD 747-05034

Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

34

MTD 647-04051-0637

Grass Catcher Frame
(Superseded to 647-04051B-0637)

$

$

Not available

35

MTD 964-04046A

Grass Catcher

$

$

Not available

36

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

37

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

39

MTD 749-04504

Upper Handle

$54.99

$

Usually ships in 3-6 days

0

40

MTD 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

41

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

42

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

43

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

44

MTD 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0

45

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

46

MTD 710-04373A

Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

47

MTD 728-0199

Rivet, Plastic

$4.49

$

In Stock, Qty 20+

0

48

MTD 731-06189

4 Speed Actuator

$

$

Not available

49

MTD 731-06193

Speed Selector Level
(Superseded to 731-06193A)

$7.99

$

Usually ships in 3-6 days

0
