12AI832Q724 - MTD Platinum Walk-Behind Mower (2008) Drive Assembly Parts Diagram

Platinum Walk-Behind Mower

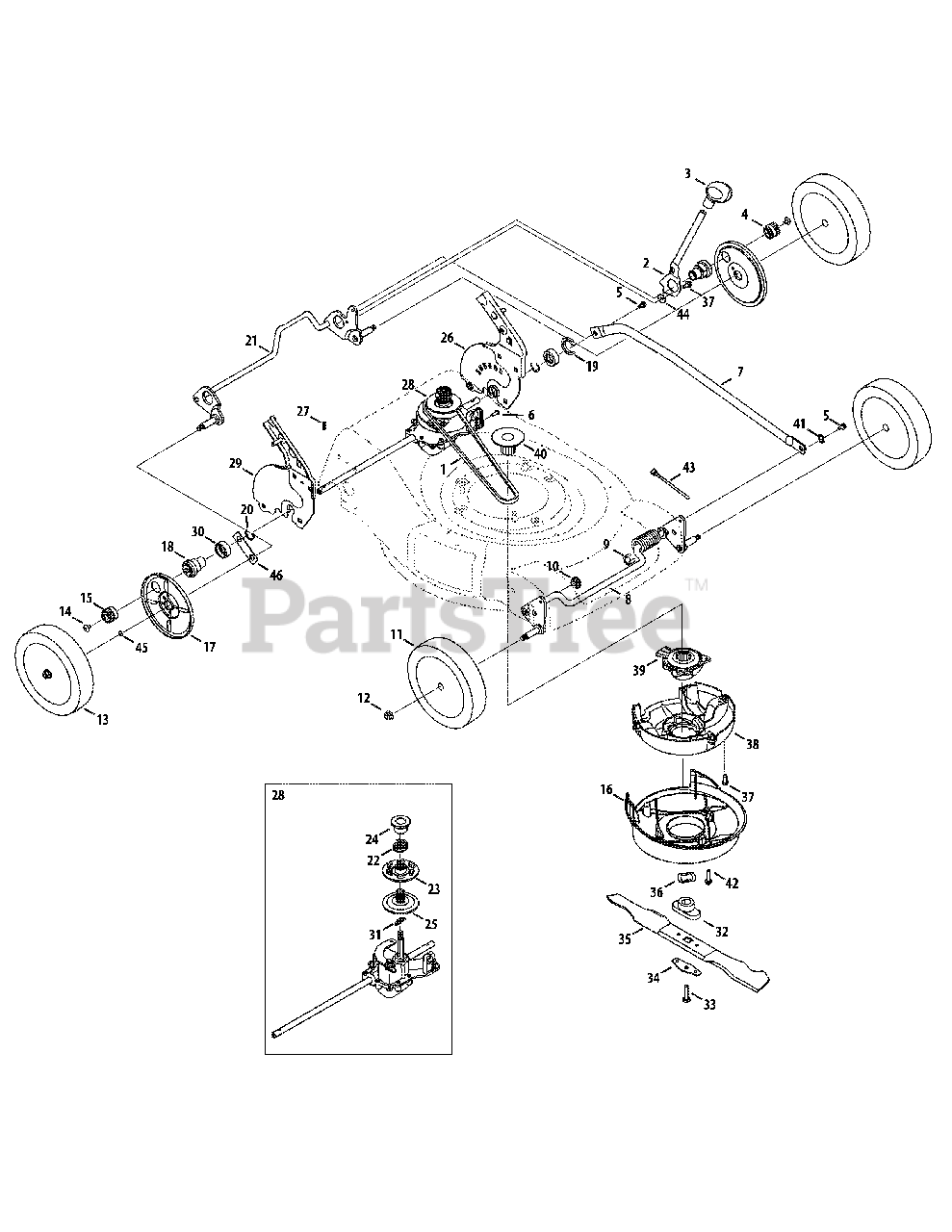

Drive Assembly Parts Diagram

  • Title

1

MTD 754-04176

V-Belt
(Superseded to 954-04176A)

$23.99

$

In Stock, Qty 5

0

2

MTD 732-04338B

Spring Lever
(Superseded to 732-04338C)

$

$

Not available

3

MTD 720-04096

Foam Grip

$6.49

$

In Stock, only 3 left!

0

4

MTD 717-04540

Spur Gear, 14T - LH
(Superseded to 917-04540B)

$9.99

$

In Stock, Qty 5

0

5

MTD 738-04278

Shldr. Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 5

0

6

MTD 710-04762

Screw, #12-16

$

$

Not available

7

MTD 749-04267A-0637

Cross Bracket

$

$

Not available

8

MTD 687-02204B-0637

Front Bracket Assembly

$69.99

$

Usually ships in 3-6 days

0

9

MTD 731-05470

Clip Spacer

$4.99

$

In Stock, only 4 left!

0

10

MTD 741-04136B

Split Hex Flange Bearing

$4.99

$

In Stock, Qty 20+

0

11

MTD 734-04014B

Front Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

12

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

MTD 634-04430

Rear Wheel
(Superseded to 753-08092)

$44.99

$

In Stock, only 2 left!

0

14

MTD 710-04531

Screw, 1/4-20 x .39

$5.49

$

In Stock, Qty 20+

0

15

MTD 717-04539

Spur Gear, 14T - RH
(Superseded to 917-04539B)

$17.99

$

In Stock, Qty 17

0

16

MTD 731-06284

Baffle

$26.99

$

Usually ships in 3-6 days

0

17

MTD 731-06355

Wheel Dust Cover

$

$

Not available

18

MTD 687-02415

Transmission Bearing Support

$23.99

$

In Stock, only 3 left!

0

19

MTD 731-05872

Clip Spacer

$6.99

$

In Stock, only 4 left!

0

20

MTD 716-0198

Retaining Ring .875

$4.99

$

In Stock, Qty 10

0

21

MTD 687-02314A-0637

Rear Bracket Assembly

$62.99

$

In Stock, only 2 left!

0

22

MTD 732-04527

Compression Spring

$

$

Not available

23

MTD 756-04316

Upper Pulley
(Superseded to 756-04316A)

$

$

Not available

24

MTD 712-04161

Nut, Shldr.

$

$

Not available

25

MTD 756-04317

Lower Pulley

$15.99

$

Usually ships in 3-6 days

0

26

MTD 687-02320-0637

Handle Bracket Assembly LH
(Superseded to 687-02320)

$27.99

$

Usually ships in 3-6 days

0

27

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

28

MTD 918-04670

Transmission Assembly
(Superseded to 918-04826A)

$105.99

$

Usually ships in 3-6 days

0

29

MTD 687-02321-0637

Handle Bracket Assembly RH
(Superseded to 687-02321)

$25.99

$

Usually ships in 3-6 days

0

30

MTD 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

31

MTD 732-04313

Extension Spring

$4.99

$

In Stock, only 1 left!

0

32

MTD 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

33

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

34

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

35

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

36

MTD 736-0447

Washer, Wave, 1.5 x 1.0 x .029

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

38

MTD 731-06112

Engine Baffle
(Superseded to 731-06112A)

$23.99

$

Usually ships in 3-6 days

0

39

MTD 656-04046

Lower Pulley Assembly
(Superseded to 956P04046)

$

$

Not available

40

MTD 756-04311A

Pulley, Half

$16.99

$

Usually ships in 3-6 days

0

41

MTD 736-3012A

Washer, Wave, .390 x .625 x .016

$6.99

$

Usually ships in 3-6 days

0

42

MTD 710-04774

Screw, 1/4-15 x 1.250

$4.99

$

Usually ships in 3-6 days

0

43

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

44

MTD 736-0242

Washer, Bell, .340 x .872 x .080

$4.49

$

In Stock, Qty 20+

0

45

MTD 732-04543

Ring, .375ID x .054

$

$

Not available

46

MTD 787-01673

Gear Retainer Strap

$16.99

$

In Stock, only 1 left!

0
