12AGB2S6001 - Yard-Man Walk-Behind Mower (2014) 6X65RU Flywheel & Shroud Parts Diagram

Walk-Behind Mower

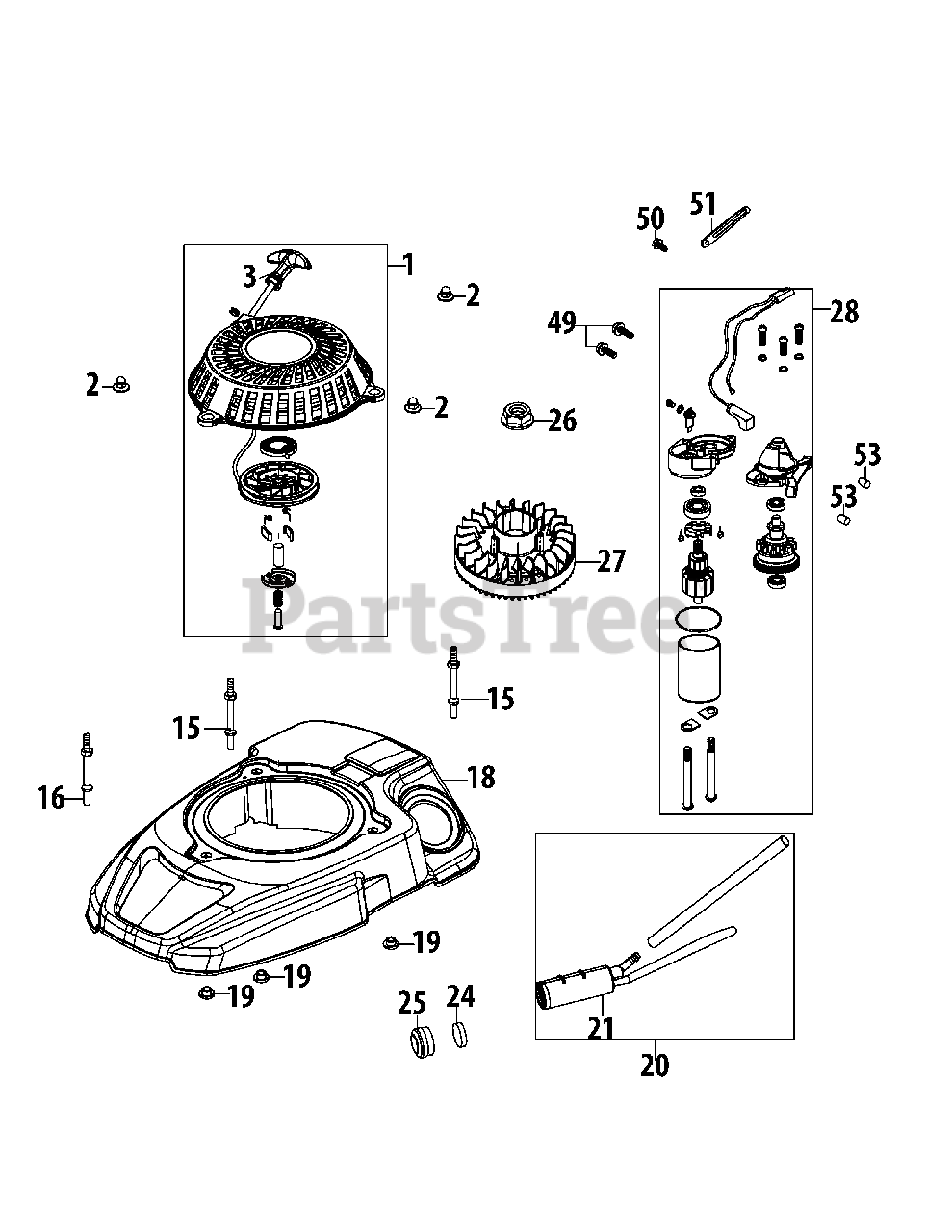

6X65RU Flywheel & Shroud Parts Diagram

  • Title

1

MTD 951-14396

Recoil Starter Assembly
(Superseded to 951-05360A)

$57.99

$

In Stock, only 2 left!

0

2

MTD 712-04276

Starter Acorn Nut
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

3

MTD 731-07925

Starter Handle

$9.99

$

In Stock, only 1 left!

0

15

MTD 951-14397

Starter/Shroud Rear Stud M6×78.5

$9.99

$

Usually ships in 3-6 days

0

16

MTD 751-14819

Starter/Shroud Front Stud M6×74
(Superseded to 951-14819)

$8.99

$

Usually ships in 3-6 days

0

18

MTD 731-10631

Engine Shroud
(Superseded to 931-10631)

$32.99

$

Usually ships in 3-6 days

0

19

MTD 750-05320

Engine Shroud Spacer

$4.49

$

In Stock, only 3 left!

0

20

MTD 751-14442

Carbon Canister Assembly
(Superseded to 951-14442)

$59.99

$

In Stock, only 1 left!

0

21

MTD 951-14126

Carbon Canister

$31.99

$

Usually ships in 3-6 days

0

24

MTD 951-14400

Carbon Canister Filter

$13.99

$

Usually ships in 3-6 days

0

25

MTD 951-14127

Carbon Canister Filter Cap

$7.49

$

Usually ships in 3-6 days

0

26

MTD 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

27

MTD 751-14722

Flywheel
(Superseded to 951-14722)

$117.99

$

Usually ships in 3-6 days

0

28

MTD 951-05207

Electric Starter Assembly (53:9)

$148.99

$

In Stock, only 1 left!

0

49

MTD 710-04943

Bolt M6X28 T/X/P Crankcase/Dp Stick

$4.49

$

In Stock, only 2 left!

0

50

MTD 710-04915

Bolt M6X12 Multi-Purpose

$4.49

$

In Stock, only 3 left!

0

51

MTD 951-11680

Flexible Clamp, Vent Hose

$4.49

$

Usually ships in 3-6 days

0

53

MTD 715-05016

Starter Housing Dowel Pin 8×8
(Superseded to 915-05016)

$5.99

$

Usually ships in 3-6 days

0
