12AF753B766 - Troy-Bilt Wide-Cut 33" Self-Propelled Mower (2004) Transaxle Assembly Parts Diagram

Wide-Cut 33" Self-Propelled Mower

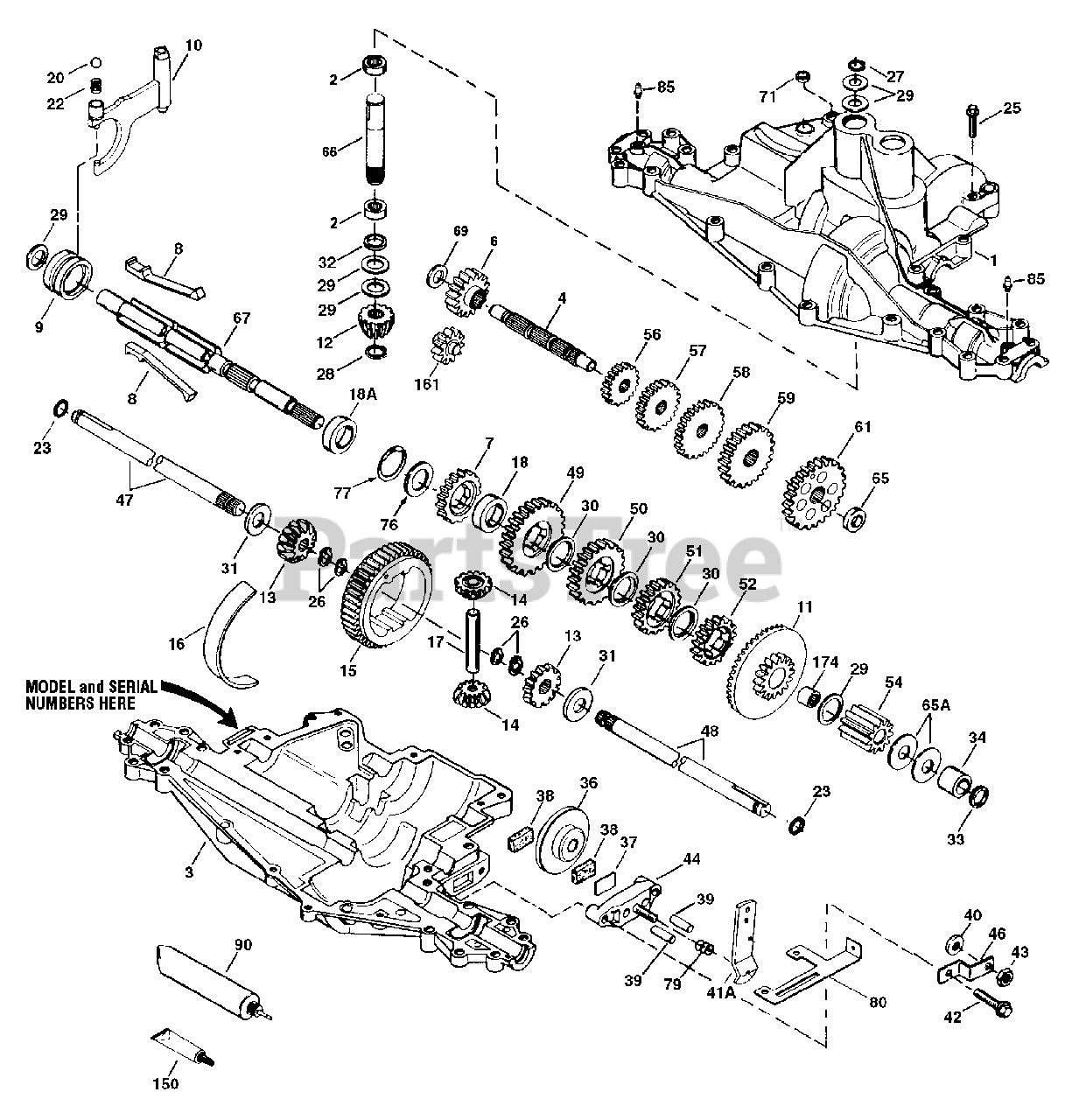

Transaxle Assembly Parts Diagram

  • Title

1

Troy-Bilt TC-772113

Transaxle Cover

$

$

Currently unavailable

1

MTD TC-772135

Transaxle Cover

$128.99

$

Usually ships in 3-12 days

0

2

Troy-Bilt TC-780086A

Needle Bearing
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

3

MTD TC-770110

Transaxle Case

$

$

Not available

4

MTD TC-776300

Countershaft

$57.99

$

Usually ships in 3-12 days

0

6

MTD TC-778281

Spur Gear (16 teeth)

$25.99

$

In Stock, only 1 left!

0

7

Troy-Bilt TC-778122A

Spur Gear (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

8

Troy-Bilt TC-792160

Shift Key
(Superseded to TC-792160A)

$21.99

$

In Stock, only 1 left!

0

9

MTD TC-784373

Shift Collar

$11.99

$

Usually ships in 3-12 days

0

10

Troy-Bilt TC-784365

Shift Rod & Fork

$

$

Currently unavailable

11

MTD TC-778261

Bevel Gear & Bearing

Note: (Incl. 174)

$67.99

$

Usually ships in 3-12 days

0

12

Troy-Bilt TC-778262

Bevel Pinion (14 teeth)

$17.99

$

In Stock, only 1 left!

0

13

MTD TC-778221

Bevel Gear (16 teeth)

$

$

Not available

14

MTD TC-778068

Differential Pinion
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

15

MTD TC-778260

Ring Gear

$88.99

$

Usually ships in 3-12 days

0

16

MTD TC-786150

Bearing Strip

$11.99

$

In Stock, only 1 left!

0

17

Troy-Bilt TC-786139

Drive Pin

$12.99

$

In Stock, only 1 left!

0

18

MTD TC-786147

Neutral Spacer

$4.49

$

Usually ships in 3-12 days

0

18A

MTD TC-786159

Neutral Spacer

$

$

Not available

20

Troy-Bilt TC-792077

Ball, 5/16" dia.
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

22

Troy-Bilt TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

23

Troy-Bilt TC-788061

Seal Ring

$4.49

$

In Stock, Qty 6

0

25

Troy-Bilt TC-792073

Screw, 1/4-20 x 1-1/4"
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

26

Troy-Bilt TC-792125

Retaining Ring

$4.49

$

In Stock, only 3 left!

0

27

Troy-Bilt TC-792035

Retaining Ring

$4.49

$

In Stock, Qty 13

0

28

Troy-Bilt TC-788040

Retaining Ring

$4.49

$

In Stock, only 4 left!

0

29

Troy-Bilt TC-780072

Washer

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt TC-780108

Washer

$4.49

$

In Stock, Qty 9

0

31

Troy-Bilt TC-780001

Washer

$4.49

$

In Stock, only 4 left!

0

32

Troy-Bilt TC-792001

"O" Ring

$4.49

$

In Stock, Qty 9

0

33

Troy-Bilt TC-788076

"O" Ring

$4.49

$

Usually ships in 3-12 days

0

34

Troy-Bilt TC-780159

Bushing

$4.49

$

In Stock, only 1 left!

0

36

Troy-Bilt TC-790071

Brake Disk

$16.99

$

Usually ships in 3-12 days

0

37

Troy-Bilt TC-790007

Brake Pad Plate

$5.99

$

Usually ships in 3-12 days

0

38

Troy-Bilt TC-799021

Brake Pad

Note: (pkg. of 2)

$10.99

$

In Stock, only 1 left!

0

39

Troy-Bilt TC-786026

Dowel Pin

$4.49

$

Usually ships in 3-12 days

0

40

Troy-Bilt TC-792076A

Washer
(Superseded to 736-3078)

$4.49

$

In Stock, Qty 20+

0

41

MTD TC-790045

Brake Lever

$

$

Not available

42

Troy-Bilt TC-792073

Screw, 1/4-20 x 1-1/4"
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

43

Troy-Bilt TC-792075

Locknut, 5/16-24
(Superseded to 912-0237)

$

$

Not available

44

Troy-Bilt TC-790025

Brake Pad Holder

$17.99

$

Usually ships in 3-12 days

0

46

Troy-Bilt TC-786086

Brake Lever Bracket

$6.49

$

Usually ships in 3-12 days

0

47

MTD TC-774747

Axle (16-1/4" long)

$

$

Not available

48

Troy-Bilt TC-774888

Axle (11" long)

$56.99

$

Usually ships in 3-12 days

0

49

Troy-Bilt TC-778124A

Spur Gear (30 teeth)

$34.99

$

In Stock, only 3 left!

0

50

Troy-Bilt TC-778123A

Spur Gear (25 teeth)

$48.99

$

Usually ships in 3-12 days

0

51

Troy-Bilt TC-778122A

Spur Gear (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

52

Troy-Bilt TC-778273

Spur Gear (19 teeth)

$49.99

$

Usually ships in 3-12 days

0

54

MTD TC-778263

Spur Gear (11 teeth)

$85.99

$

Usually ships in 3-12 days

0

56

Troy-Bilt TC-778126A

Spur Gear (20 teeth)

$48.99

$

Usually ships in 3-12 days

0

57

Troy-Bilt TC-778127A

Spur Gear (25 teeth)

$53.99

$

In Stock, only 3 left!

0

58

Troy-Bilt TC-778128A

Spur Gear (28 teeth)

$40.99

$

Usually ships in 3-12 days

0

59

MTD TC-778129A

Spur Gear (30 teeth)

$37.99

$

In Stock, only 1 left!

0

61

Troy-Bilt TC-778265

Spur Gear (34 teeth)

$40.99

$

In Stock, only 1 left!

0

65

MTD TC-780162

Washer

$6.49

$

Usually ships in 3-12 days

0

65A

Troy-Bilt TC-780160

Washer

$4.49

$

Usually ships in 3-12 days

0

66

Troy-Bilt TC-776299

Input Shaft

$22.99

$

Usually ships in 3-12 days

0

67

MTD TC-776352

Shifter & Brake Shaft

$156.99

$

In Stock, only 1 left!

0

69

MTD TC-780161

Washer

$4.49

$

Usually ships in 3-12 days

0

71

Troy-Bilt TC-788069

Square Cut Ring

$4.49

$

Usually ships in 3-12 days

0

76

Troy-Bilt TC-780090

Washer

$4.49

$

In Stock, Qty 7

0

77

Troy-Bilt TC-788078A

Inverted Retaining Ring

Note: (pkg. of 2)

$4.49

$

Usually ships in 3-12 days

0

79

Troy-Bilt TC-792144

Spring

$4.49

$

In Stock, only 2 left!

0

80

MTD TC-790063A

Brake Bracket

$5.49

$

Usually ships in 3-12 days

0

85

Troy-Bilt TC-792137

Lubrication Fitting
(Superseded to 737-04006)

$

$

Not available

90

Troy-Bilt TC-788067B

Grease
(Superseded to TC-788067C)

Note: (32 oz. bottle Bentonite grease)

$

$

Not available

150

Troy-Bilt 510334

Gasket Eliminator
(Superseded to TC-510334)

Note: (Loctite #515)

$12.99

$

Usually ships in 3-12 days

0

161

Troy-Bilt 776302

Reverse Idler

$

$

Currently unavailable

174

Troy-Bilt 780085

Needle Bearing

$

$

Currently unavailable
