12AF753B063 - Troy-Bilt Wide-Cut 33" Self-Propelled Mower (2002) Peerless Transaxle Parts Diagram

Wide-Cut 33" Self-Propelled Mower

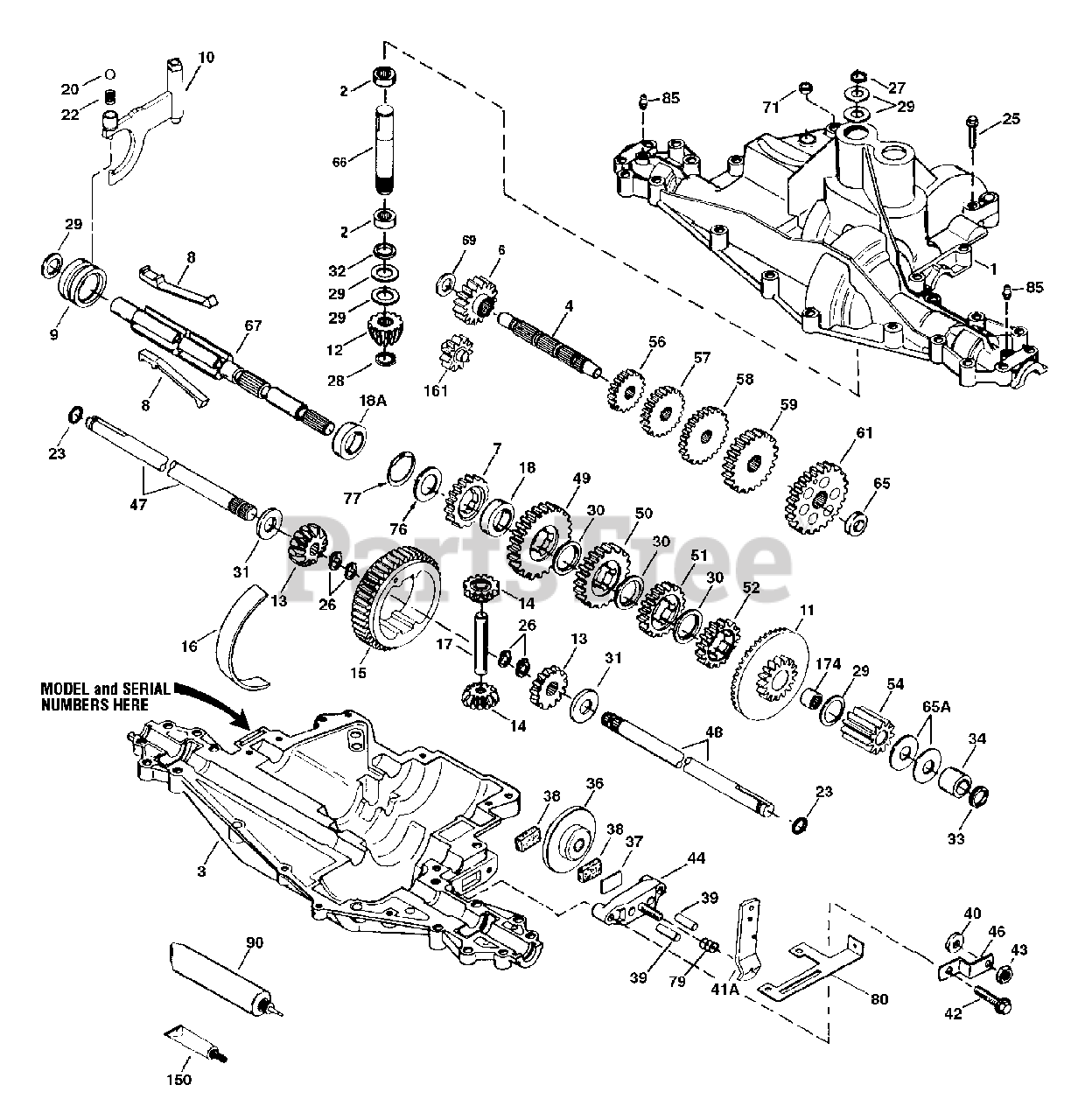

Peerless Transaxle Parts Diagram

  • Title

1

Troy-Bilt 772113

Transaxle Cover

$

$

Currently unavailable

1

Troy-Bilt 772135

Transaxle Cover

$

$

Currently unavailable

2

Troy-Bilt 780086

Needle Bearing

$

$

Currently unavailable

3

Troy-Bilt 770110

Transaxle Case

$

$

Currently unavailable

4

Troy-Bilt 776300

Countershaft

$

$

Currently unavailable

6

Troy-Bilt 778281

Spur Gear (16 teeth)

$

$

Currently unavailable

7

Troy-Bilt 778122A

Spur Gear (22 teeth)

$

$

Currently unavailable

8

Troy-Bilt 792160

Shift Key

$

$

Currently unavailable

9

Troy-Bilt 784373

Shift Collar

$

$

Currently unavailable

10

Troy-Bilt 784365

Shift Rod & Fork

$

$

Currently unavailable

11

Troy-Bilt 778261

Bevel Gear & Bearing

Note: (Incl. 174)

$

$

Currently unavailable

12

Troy-Bilt 778262

Bevel Pinion (14 teeth)

$

$

Currently unavailable

13

Troy-Bilt 778221

Bevel Gear (16 teeth)

$

$

Currently unavailable

14

Troy-Bilt 778068

Differential Pinion

$

$

Currently unavailable

15

Troy-Bilt 778260

Ring Gear

$

$

Currently unavailable

16

Troy-Bilt 786150

Bearing Strip

$

$

Currently unavailable

17

Troy-Bilt 786139

Drive Pin

$

$

Currently unavailable

18

Troy-Bilt 786147

Neutral Spacer

$

$

Currently unavailable

18A

Troy-Bilt 786159

Neutral Spacer

$

$

Currently unavailable

20

Troy-Bilt 792077

Ball, 5/16" dia.

$

$

Currently unavailable

22

Troy-Bilt 792079

Spring
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 788061

Seal Ring
(Superseded to TC-788061)

$4.49

$

In Stock, Qty 6

0

25

Troy-Bilt 792073

Screw, 1/4-20 x 1-1/4"

$

$

Currently unavailable

26

Troy-Bilt 792125

Retaining Ring

$

$

Currently unavailable

27

Troy-Bilt 792035

Retaining Ring
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

28

Troy-Bilt 788040

Retaining Ring

$

$

Currently unavailable

29

Troy-Bilt 780072

Washer
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 780108

Washer
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

31

Troy-Bilt 780001

Washer

$

$

Currently unavailable

32

Troy-Bilt 792001

"O" Ring
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 11

0

33

Troy-Bilt 788076

"O" Ring

$

$

Currently unavailable

34

Troy-Bilt 780159

Bushing

$

$

Currently unavailable

36

Troy-Bilt 790071

Brake Disk

$

$

Currently unavailable

37

Troy-Bilt 790007

Brake Pad Plate
(Superseded to TC-790007)

$5.99

$

Usually ships in 3-12 days

0

38

Troy-Bilt 799021

Brake Pad (pkg. of 2)

$

$

Currently unavailable

39

Troy-Bilt 786026

Dowel Pin
(Superseded to TC-786026)

$4.49

$

Usually ships in 3-12 days

0

40

Troy-Bilt 792076A

Washer

$

$

Currently unavailable

?41

Troy-Bilt 790045

Brake Lever

$

$

Currently unavailable

41A

UNKNOWN

$

$

Not available

42

Troy-Bilt 792073

Screw, 1/4-20 x 1-1/4"

$

$

Currently unavailable

43

Troy-Bilt 792075

Locknut, 5/16-24

$

$

Currently unavailable

44

Troy-Bilt 790025

Brake Pad Holder

$

$

Currently unavailable

46

Troy-Bilt 786086

Brake Lever Bracket

$

$

Currently unavailable

47

Troy-Bilt 774747

Axle (16-1/4" long)

$

$

Currently unavailable

48

Troy-Bilt 774888

Axle (11" long)

$

$

Currently unavailable

49

Troy-Bilt 778124A

Spur Gear (30 teeth)
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

50

Troy-Bilt 778123A

Spur Gear (25 teeth)
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

51

Troy-Bilt 778122A

Spur Gear (22 teeth)

$

$

Currently unavailable

52

Troy-Bilt 778273

Spur Gear (19 teeth)

$

$

Currently unavailable

54

Troy-Bilt 778263

Spur Gear (11 teeth)

$

$

Currently unavailable

56

Troy-Bilt 778126A

Spur Gear (20 teeth)

$

$

Currently unavailable

57

Troy-Bilt 778127A

Spur Gear (25 teeth)

$

$

Currently unavailable

58

Troy-Bilt 778128A

Spur Gear (28 teeth)

$

$

Currently unavailable

59

Troy-Bilt 778129A

Spur Gear (30 teeth)

$

$

Currently unavailable

61

Troy-Bilt 778265

Spur Gear (34 teeth)

$

$

Currently unavailable

65

Troy-Bilt 780162

Washer

$

$

Currently unavailable

65A

Troy-Bilt 780160

Washer

$

$

Currently unavailable

66

Troy-Bilt 776299

Input Shaft

$

$

Currently unavailable

67

Troy-Bilt 776352

Shifter & Brake Shaft

$

$

Currently unavailable

69

Troy-Bilt 780161

Washer

$

$

Currently unavailable

71

Troy-Bilt 788069

Square Cut Ring

$

$

Currently unavailable

76

Troy-Bilt 780090

Washer

$

$

Currently unavailable

77

Troy-Bilt 788078A

Inverted Retaining Ring (pkg. of 2)

$

$

Currently unavailable

79

Troy-Bilt 792144

Spring

$

$

Currently unavailable

80

Troy-Bilt 790063A

Brake Bracket

$

$

Currently unavailable

85

Troy-Bilt 792137

Lubrication Fitting

$

$

Currently unavailable

90

Troy-Bilt 788067B

Grease (32 oz. bottle Bentonite grease)

$

$

Currently unavailable

150

Troy-Bilt 510334

Gasket Eliminator (Loctite #515)
(Superseded to TC-510334)

$12.99

$

Usually ships in 3-12 days

0

161

Troy-Bilt 776302

Reverse Idler

$

$

Currently unavailable

174

Troy-Bilt 780085

Needle Bearing

$

$

Currently unavailable
