12AF569S790 - White Outdoor 21" Walk-Behind Mower (2005) Deck Parts Diagram

21" Walk-Behind Mower

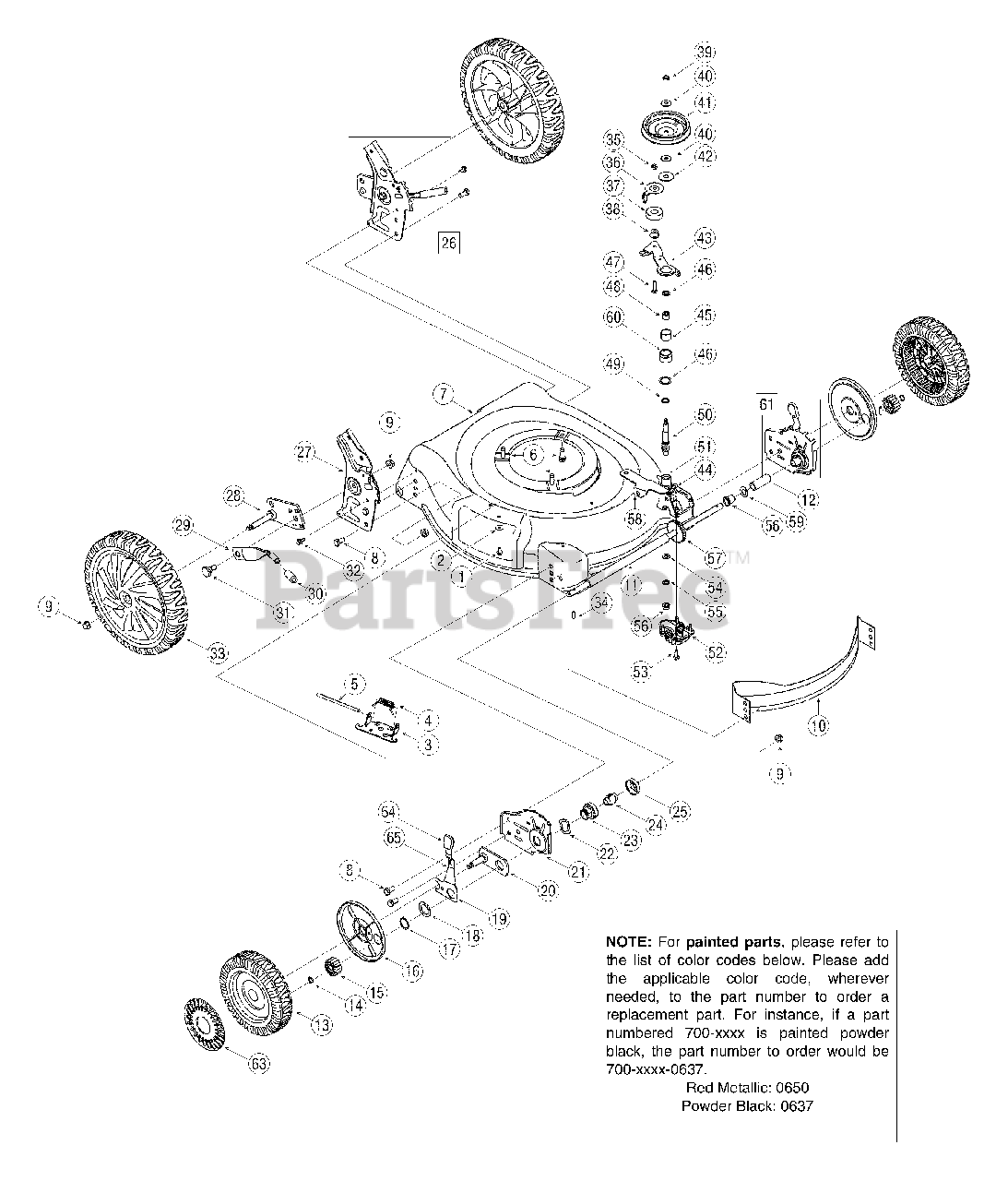

Deck Parts Diagram

  • Title

1

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

4

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

5

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 787-01222

21" Deck
(Superseded to 753-05204)

Variations

White Outdoor 787-01222-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 787-01222-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

White Outdoor 710-0216

Hex Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

9

White Outdoor 712-0431

Hex Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

11

White Outdoor 750-1165

Sleeve Spacer 10.1" Lg.
(Superseded to 750-1210)

$

$

Not available

12

White Outdoor 750-1166

Slev. Spacer 2.1" Lg.

$4.99

$

Usually ships in 3-6 days

0

13

White Outdoor 734-2042

Wheel 8 x 2.125 Black Zag Gear
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

14

White Outdoor 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

White Outdoor 717-1761

Gear 14T LH FWD

Note: Not Pictured in Illustration

$13.99

$

In Stock, only 4 left!

0

16

White Outdoor 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

17

White Outdoor 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

18

White Outdoor 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

19

White Outdoor 687-02018

Lever Assembly RH
(Superseded to 987-02018)

$24.99

$

Usually ships in 3-6 days

0

20

White Outdoor 687-02044

Pivot Plate Assembly
(Superseded to 987-02044)

$

$

Not available

21

White Outdoor 782-0512B

Height Adjuster Plate - RH
(Superseded to 782-0512B-0637)

Variations

White Outdoor 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

White Outdoor 782-0511A

Height Adjuster Plate - LH
(Superseded to 782-0511A-0637)

Note: Not Pictured in Illustration

Variations

White Outdoor 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

24

White Outdoor 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

25

White Outdoor 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

26

White Outdoor 687-02057

Handle Bracket Assembly - LH
(Superseded to 987-02057)

$

$

Not available

White Outdoor 687-02056

Handle Bracket Assembly - RH
(Superseded to 987-02056)

Note: Not Pictured in Illustration

$

$

Not available

27

White Outdoor 687-02033

Handle Bracket - RH
(Superseded to 987-02033)

$

$

Not available

White Outdoor 687-02031

Handle Bracket - LH
(Superseded to 987-02031)

Note: Not Pictured in Illustration

$

$

Not available

28

White Outdoor 687-02039

Pivot Bar RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 687-02040

Pivot Bar LH
(Superseded to 987-02336)

Note: Not Pictured in Illustration

$

$

Not available

29

White Outdoor 732-0866

Height Adjustment Lever

$

$

Not available

30

White Outdoor 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

31

White Outdoor 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 710-1652

Tt Screw 1/4-20 x.625"

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 734-04093

Wheel, 12 x 2.125 Zag Gray IDL

$67.99

$

In Stock, only 2 left!

0

34

White Outdoor 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 712-0896

Lock Nut

$4.99

$

In Stock, Qty 6

0

36

White Outdoor 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

37

White Outdoor 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

38

White Outdoor 750-1050

Flange Bearing

$5.49

$

Usually ships in 3-6 days

0

39

White Outdoor 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

40

White Outdoor 736-0425

Bell Washer.325 x.930 x.45

$4.99

$

In Stock, Qty 13

0

41

White Outdoor 656-0047

Pulley, 3.82 x.313 x.68

$

$

Not available

42

White Outdoor 736-0406

Flat Washer.422 x 1.38 x.060
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

43

White Outdoor 682-0029

Front Idler Assembly

$

$

Not available

44

White Outdoor 732-04001

Extension Spring

$5.99

$

In Stock, only 2 left!

0

45

White Outdoor 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

46

White Outdoor 736-0570

Fl-Wash.865 x 1.145 x.030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0299

Hex Screw 1/4-28 x 1.0

$4.49

$

Usually ships in 3-6 days

0

48

White Outdoor 741-0699

Needle Bearing.438 x.625 x.500

$

$

Not available

49

White Outdoor 736-0520

Flat Washer.504 x.700 x.030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

50

White Outdoor 717-1492

Pinion Shaft

$

$

Not available

51

White Outdoor 618-0300A

Upper Housing

$

$

Not available

52

White Outdoor 618-0299A

Lower Housing

$

$

Not available

53

White Outdoor 710-1276

Hex Screw w/Washer 1/4-20 x.750

$4.49

$

Usually ships in 3-6 days

0

54

White Outdoor 736-0314

Thrust Washer.375 x.070 x.030

$6.99

$

Usually ships in 3-6 days

0

55

White Outdoor 736-0569

Thrust Washer.388 x.625 x.062
(Superseded to 936-0569)

$

$

Not available

56

White Outdoor 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

57

White Outdoor 611-0105A

Output Shaft

$123.99

$

Usually ships in 3-6 days

0

58

White Outdoor 682-0030

Idler Cable Bracket Assembly

$

$

Not available

59

White Outdoor 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

60

White Outdoor 721-0457

Oil Seal

$

$

Not available

61

White Outdoor 682-0511A

Height Adjustment Assembly LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-0512A

Height Adjustment Assembly RH
(Superseded to 987-02194A)

Note: Not Pictured in Illustration

$66.99

$

Usually ships in 3-6 days

0

62

White Outdoor 618-04006

Transmission Assembly Comp.
(Superseded to 918-04006)

Note: Not Pictured in Illustration

$311.99

$

Usually ships in 3-6 days

0

63

White Outdoor 731-0981A

Radial Spoke Hubcap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

64

White Outdoor 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

65

White Outdoor 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

White Outdoor 732-0707

Front Lever LH

Note: Not Pictured in Illustration

$15.99

$

In Stock, only 1 left!

0
