12AE469D755 - Yard-Man Walk-Behind Mower (2006) (Walmart) Drive and Wheels Parts Diagram

Walk-Behind Mower

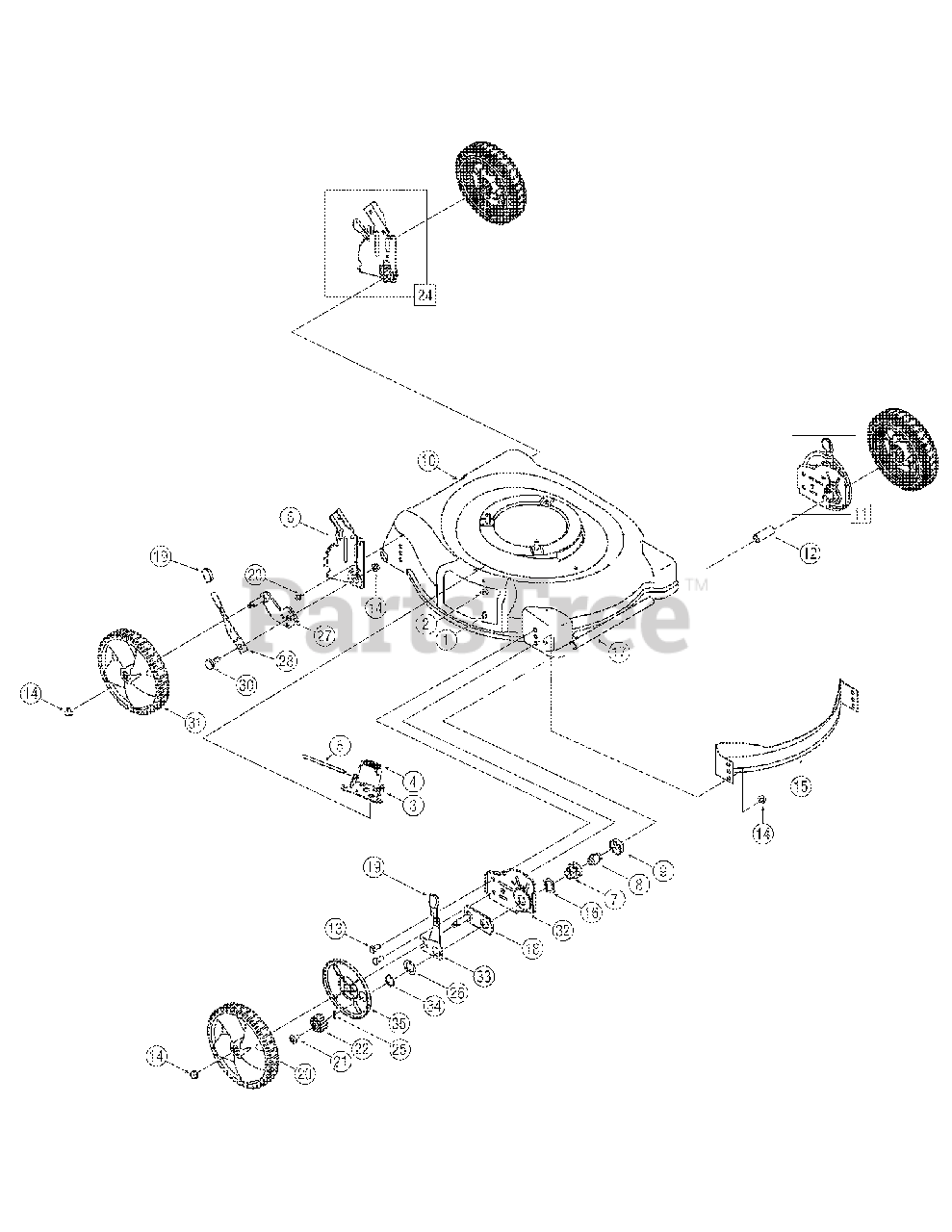

Drive and Wheels Parts Diagram

  • Title
1

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

MTD 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

3

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

4

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

5

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 787-01292

Handle Bracket - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

6

MTD 787-01291

Handle Bracket - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

7

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

8

MTD 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

9

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

10

MTD 787-01278

21" Deck

Variations

MTD 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

MTD 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

MTD 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

MTD 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

MTD 687-02194

Height Adjustment Assembly - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

11

MTD 687-02193

Height Adjustment Assembly - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

12

MTD 750-04595

Slev. Spacer 1.4" Lg.

$4.99

$

In Stock, only 1 left!

0

13

MTD 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 14

0

14

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

16

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

17

MTD 750-04594

Sleeve Spacer 8.985" Lg.

$9.49

$

In Stock, only 1 left!

0

18

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

19

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

20

MTD 634-04100

Front Wheel 8 x 1.8
(Superseded to 634-04100A)

$39.99

$

In Stock, Qty 17

0

21

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

22

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

22

MTD 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

23

MTD 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

24

MTD 687-02068

Handle Bracket Assembly - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

24

MTD 687-02069

Handle Bracket Assembly - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

25

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

27

MTD 687-02071A

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

27

MTD 687-02070A

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

28

MTD 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

29

MTD 712-0214

Hex Lock Nut, 3/8-24

$6.49

$

In Stock, only 2 left!

0

30

MTD 738-04136

Shoulder Scr.500 Dia. x.434

$

$

Not available

31

MTD 734-04087

Rear Wheel, 8 x 1.8

$27.99

$

In Stock, Qty 5

0

32

MTD 787-01298

Height Adjuster Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

32

MTD 787-01299

Height Adjuster Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

33

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

33

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

34

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

35

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0
