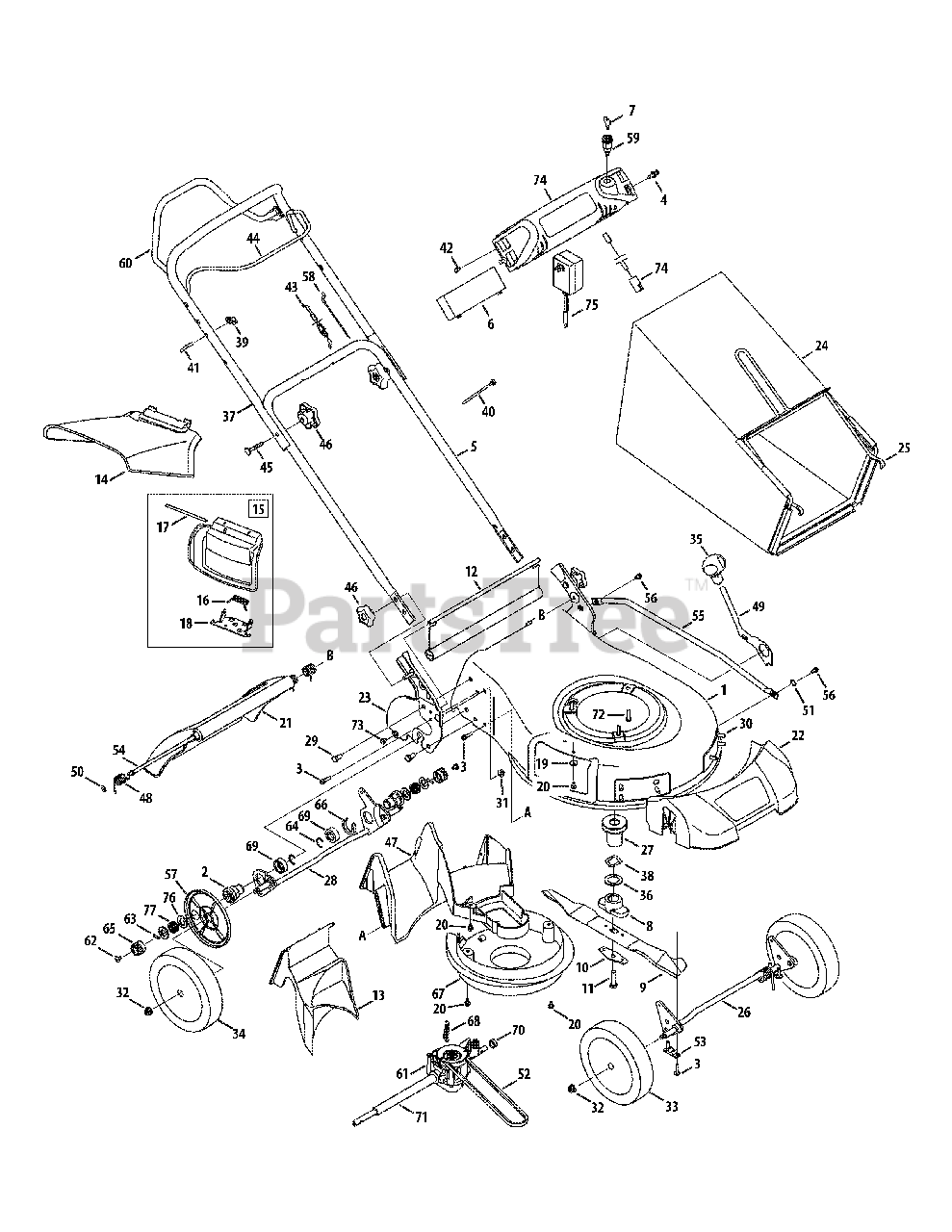

12AE189D011 - Troy-Bilt Walk-Behind Mower (2009) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 787-01629-4033

19" Deck

$

$

Not available

2

Troy-Bilt 687-02415

Transmission Support Bearing

$23.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 18

0

4

Troy-Bilt 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 749-04556

Lower Handle

$47.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 925-04323

Battery
(Superseded to 753-10804)

$114.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 925-0201

Key

$9.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 942-0739

Mulching Blade

$23.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 731-05639A

Trailing Shield

$19.99

$

In Stock, only 4 left!

0

13

Troy-Bilt 731-05746

Rear Mulch Plug

$

$

Not available

14

Troy-Bilt 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 987-02055

Mulch Plug (Incl. 16-18)

$27.99

$

In Stock, Qty 10

0

16

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 931-05686

Rear Door

$43.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 931-05634

Front Cover

$67.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 687-02323-0637

Handle Bracket - RH

$

$

Not available

23

Troy-Bilt 687-02322-0637

Handle Bracket - LH
(Superseded to 687-02322)

$

$

Not available

24

Troy-Bilt 964-04099

Grass Bag

$66.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 647-04082-0637

Grass Bag Frame

$61.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 687-02317-0637

Front Bracket Assembly

$56.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 656-04047

Pulley Assembly, Drive
(Superseded to 656-04047A)

$26.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 687-02304-0637

Self Propelled Bracket Assembly

$132.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 710-3025

Hhcs, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

30

Troy-Bilt 710-1242

Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 19

0

31

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 5

0

32

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 734-04014B

Front Wheel
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

34

Troy-Bilt 934-04207D

Rear Wheel
(Superseded to 753-08092)

$44.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 720-04113

Height Adjuster Knob

$10.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 736-0277

Washer, Flat, 1.031 x .620 x .095

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 749-04550

Upper Handle

$47.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 936-0447

Washer, Wave, 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 710-1667A

Screw, #10-16 x .750

$4.49

$

In Stock, Qty 13

0

43

Troy-Bilt 946-04633

Control Cable

$20.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 747-04995

Blade Control

$28.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 710-1174

Bolt Carriage, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 731-06190

Rear Baffle

$

$

Not available

48

Troy-Bilt 732-04534

Door Torsion Spring - RH

$4.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 732-04535

Door Torsion Spring - LH

$4.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 732-04338C

Spring Lever

$

$

Not available

50

Troy-Bilt 726-0201

Nut, Spd

$6.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 736-04413

Washer, Wave, .385 ID x .598 OD

$3.99

$

In Stock, Qty 5

0

52

Troy-Bilt 954-04158

V-Belt

$18.99

$

In Stock, Qty 8

0

53

Troy-Bilt 741-0492A

Bushing, Lock, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

54

Troy-Bilt 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 749-04386A

Cross Bracket

$

$

Not available

56

Troy-Bilt 738-04278

Scr., Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

57

Troy-Bilt 731-06974

Wheel Dust Cover

$6.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 946-04519A

Drive Cable
(Superseded to 946-04519B)

$46.99

$

In Stock, only 2 left!

0

59

Troy-Bilt 925-04347

Key Switch

$33.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 747-04994

Drive Control
(Superseded to 747-05548)

$31.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 918-04463

Transmission
(Superseded to 918-04463A)

$

$

Not available

61

Troy-Bilt 732-04347

Belt Guide Wire

Note: Not shown

$9.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

64

Troy-Bilt 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

65

Troy-Bilt 917-04192C

Spur Gear - RH

$7.49

$

In Stock, only 3 left!

0

65

Troy-Bilt 917-04184C

Spur Gear - LH

$9.49

$

In Stock, only 3 left!

0

66

Troy-Bilt 731-05872

Spacer, Clip

$6.99

$

In Stock, only 4 left!

0

67

Troy-Bilt 731-06164

Engine Baffle

$31.99

$

In Stock, only 1 left!

0

68

Troy-Bilt 932-04262

Extension Spring, .429OD x 2.515

$9.49

$

Usually ships in 3-6 days

0

69

Troy-Bilt 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

70

Troy-Bilt 750-04870

Sleeve Spacer, .550ID x .340 Lg.

$6.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 750-04853

Sleeve Spacer, .550ID x 7.97 Lg.

$

$

Not available

72

Troy-Bilt 710-0654A

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

73

Troy-Bilt 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

74

Troy-Bilt 925-04096

Electric Start Harness Assembly

Note: Replaces 925-04072, in this application

$

$

Not available

75

Troy-Bilt 725-04329

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 11

0

75

Troy-Bilt 791-182534

Battery Charger (w/LED Light)

Note: If Equipped

$71.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 736-0369

Washer, Flat, .508 x 1.00 x .020

$4.49

$

In Stock, Qty 20+

0

77

Troy-Bilt 732-04646

Spring, WaveS
(Superseded to 732-04650)

$10.99

$

In Stock, only 2 left!

0
