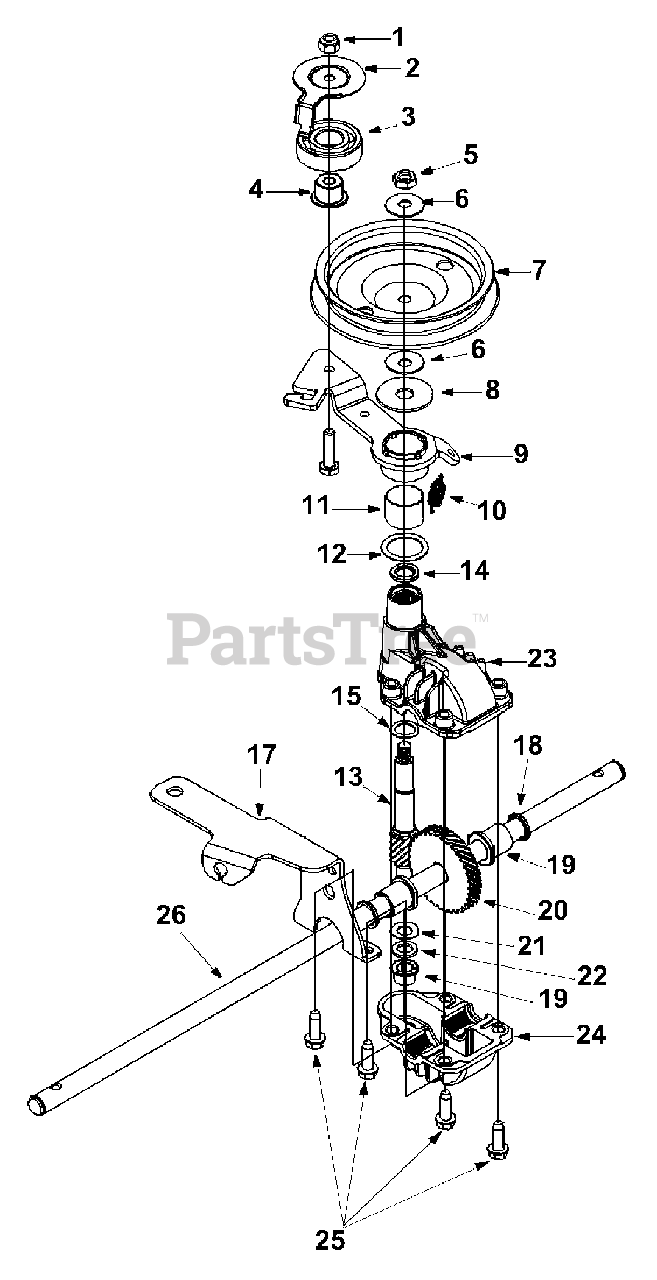

12AD569R401 - Yard-Man Walk-Behind Mower (2002) Transmission Parts Diagram

Walk-Behind Mower

Transmission Parts Diagram

  • Title

1

MTD 712-0896

L-Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

2

MTD 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

3

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

4

MTD 750-1050

Flange Bearing

$5.49

$

Usually ships in 3-6 days

0

5

MTD 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

6

MTD 736-0425

Bell Washer .325 x .930 x .45

$4.99

$

In Stock, Qty 13

0

7

MTD 656-0047

Pulley, 3.82 x .313 x .68

$

$

Not available

8

MTD 736-0406

Flat Washer .422 x 1.38 x .060
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

9

MTD 682-0028

Idler Bracket Pulley
(Superseded to 682-0029)

$

$

Not available

10

MTD 732-04001

Extension Spring

$5.99

$

In Stock, only 2 left!

0

11

MTD 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

12

MTD 736-0570

Fl-Wash. .865 x 1.145 x .030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

13

MTD 711-1492

Pinion Shaft 10T

$

$

Currently unavailable

14

MTD 741-0699

Needle Bearing .438 x .625 x .500

$

$

Not available

15

MTD 736-0520

Fl-Wash. .504 x .700 x .030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

?16

MTD 717-1492

Pinion Shaft

$

$

Not available

17

MTD 682-0030

Cable Idler Brkt.

$

$

Not available

18

MTD 721-0329

Oil Seal .500 x .687 x .094
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

19

MTD 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

20

MTD 611-0105

Output Shaft
(Superseded to 611-0105A)

$123.99

$

Usually ships in 3-6 days

0

21

MTD 736-0314

Thrust Washer .375 x .070 x .030

$6.99

$

Usually ships in 3-6 days

0

22

MTD 736-0569

Thrust Washer .388 x .625 x .062
(Superseded to 936-0569)

$

$

Not available

23

MTD 618-0300A

Upper Housing

$

$

Not available

24

MTD 618-0299A

Lower Housing

$

$

Not available

25

MTD 710-1276

Hex Screw w/Washer 1/4-20 x .750

$4.49

$

Usually ships in 3-6 days

0

26

MTD 618-04006

Transmission Assembly Comp.
(Superseded to 918-04006)

$311.99

$

Usually ships in 3-6 days

0
