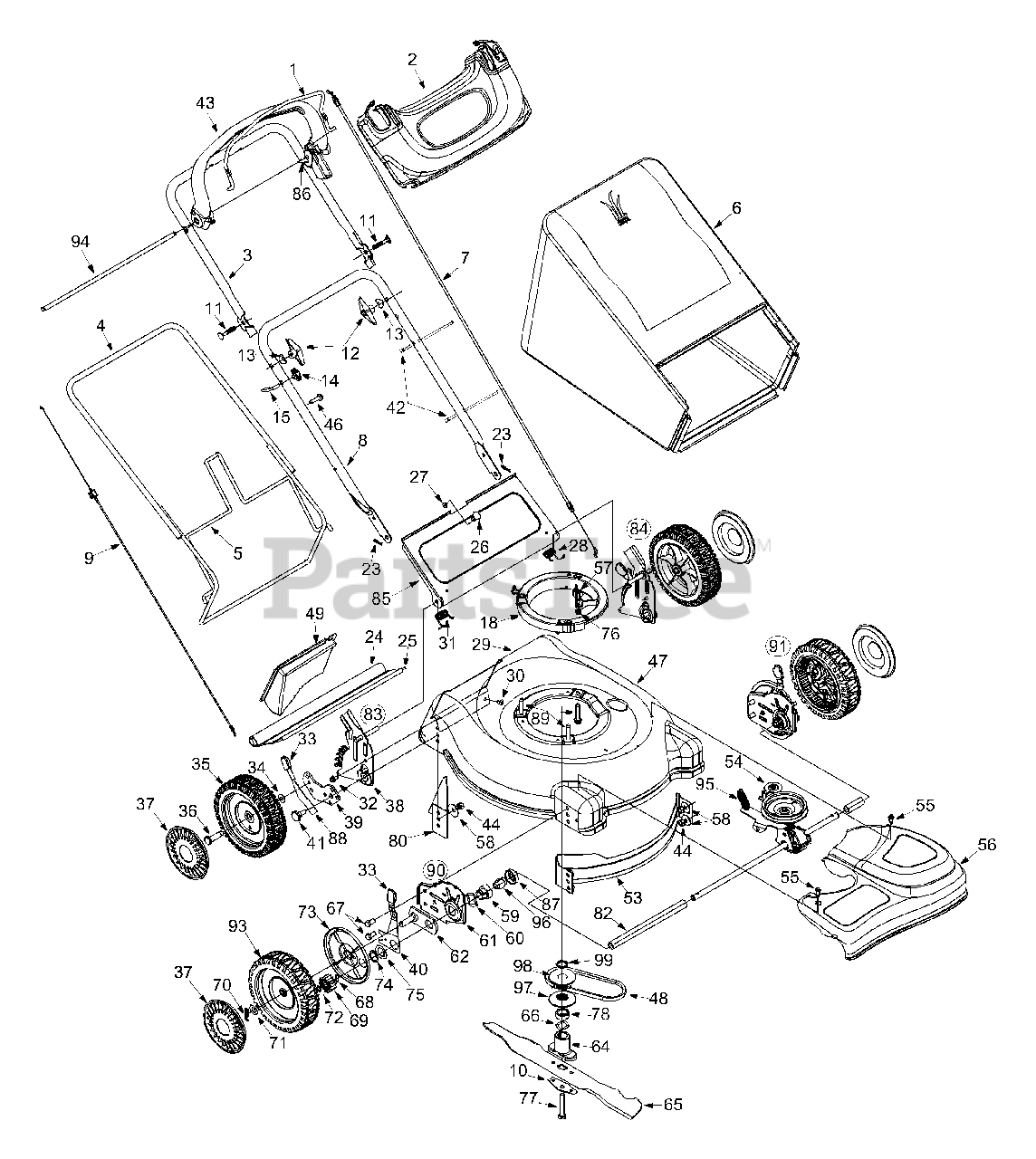

12AD449R401 - Yard-Man Walk-Behind Mower (2003) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-2133

Bail Handle
(Superseded to 747-2133A-0637)

$17.99

$

Usually ships in 3-6 days

0

2

MTD 731-2628

Handle Panel

$

$

Not available

3

MTD 749-1507

Upper Handle
(Superseded to 749-1507-0637)

Variations

MTD 749-1507-0637

Upper Handle - POWDER BLACK (0637)

$34.99

$

In Stock, only 1 left!

0

$34.99

$

In Stock, only 1 left!

0

4

MTD 764-0310

Rear Grass Catcher Frame
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

MTD 764-0311

Front Grass Catcher Frame
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 664-0176

Grass Bag-Half Sail
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

7

MTD 746-1252

Control Cable
(Superseded to 946-1252)

$19.99

$

Usually ships in 3-6 days

0

8

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

9

MTD 746-1250

Drive Cable
(Superseded to 946-1250)

$35.99

$

In Stock, only 2 left!

0

10

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 7

0

11

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

12

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

14

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

18

MTD 631-0075B

Engine Spacer Assembly

$

$

Not available

23

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-1236

Rear Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

25

MTD 732-0700

Wire: Trail Shield
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

26

MTD 720-0275

Knob

$

$

Not available

27

MTD 710-0192

Scr. Tr. Mach. #10-24 x 0.380"

$3.99

$

In Stock, Qty 12

0

28

MTD 732-0677

Torsion Spring LH
(Superseded to 932-0677)

$

$

Not available

29

MTD 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Scr. AB 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

31

MTD 732-0678

Torsion Spring RH

$8.49

$

Usually ships in 3-6 days

0

32

MTD 710-0896

Hex Scr. w/ Wash. 1/4-14 x 0.62"

$4.49

$

In Stock, Qty 20+

0

33

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

34

MTD 736-0105

Bell Washer .375 x .870

$4.49

$

In Stock, Qty 20+

0

35

MTD 734-2042

Rear Wheel: Disk Bar Gray
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

36

MTD 738-0102

Shoulder Screw

$9.99

$

In Stock, Qty 10

0

37

MTD 731-1426

Hubcap: Radial Spoke Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

38

MTD 682-3067

Handle Bracket Assembly LH
(Superseded to 753-05994)

Note: Not shown

Variations

MTD 682-3067-0637

Handle Bracket Kit - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

MTD 682-3066

Handle Bracket Assembly RH
(Superseded to 753-05994)

Variations

MTD 682-3066-0637

Handle Bracket Kit - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

39

MTD 14766

Pivot Bar LH

Note: Not shown

$19.99

$

Usually ships in 3-6 days

0

MTD 14765

Pivot Bar RH

$19.99

$

Usually ships in 3-6 days

0

40

MTD 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever LH

Note: Not shown

$15.99

$

In Stock, only 1 left!

0

41

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, only 4 left!

0

42

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

43

MTD 731-2629

Drive Handle
(Superseded to 631-04024)

$60.99

$

Usually ships in 3-6 days

0

44

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

?45

MTD 736-0356

Flat Washer
(Superseded to 936-0356)

$

$

Not available

46

MTD 710-0817

TT-Scr. 5/16-18

$6.99

$

In Stock, Qty 15

0

47

MTD 782-0080A

Rear Discharge Deck: 21"

Variations

MTD 782-0080A-0665

No Longer Available DECK-21 R - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0080A-0638

No Longer Available DECK-21 R - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0080A-0691

No Longer Available DECK-21 R - BLACK JACK (0691)

$

$

Not available

MTD 782-0080A-0709

No Longer Available DECK-21 R - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

48

MTD 754-0465

V-Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 20+

0

49

MTD 782-5007A

Mulch Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

53

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 618-04006

Transmission Assembly Compl.
(Superseded to 918-04006)

$311.99

$

Usually ships in 3-6 days

0

55

MTD 710-1650

Shld. Screw

$4.99

$

In Stock, Qty 20+

0

56

MTD 731-1937A

Front Drive Cover: Yellow
(Superseded to 931-04580)

$

$

Not available

57

MTD 711-1293

Belt Keeper Pin

$4.99

$

Usually ships in 3-6 days

0

58

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 10

0

59

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

60

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

61

MTD 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Note: Not shown

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

62

MTD 682-0509

Pivot Plate Assembly

$

$

Not available

?63

MTD 756-1146A

Drive Pulley

$57.99

$

Usually ships in 3-6 days

0

64

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

65

MTD 742-0741

Mulching Blade w/ Star: 21"
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 742-0641

Standard Blade 21"
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

66

MTD 736-0526

Wave Washer

$6.99

$

Usually ships in 3-6 days

0

67

MTD 710-0216

Hex Screw 3/8-16

$4.49

$

In Stock, Qty 16

0

68

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

69

MTD 717-1762

Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear 14T LH

Note: Not shown

$13.99

$

In Stock, only 4 left!

0

70

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

71

MTD 736-3013

Flat Washer

$4.49

$

In Stock, only 3 left!

0

72

MTD 716-0865

Snap Ring

$4.49

$

In Stock, only 1 left!

0

73

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

74

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

75

MTD 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

76

MTD 712-0271

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

77

MTD 710-1257

Hex Bolt

$7.99

$

In Stock, only 1 left!

0

78

MTD 750-04010

Sleeve Spacer, .88 x 1.19 O.D.

$

$

Not available

80

MTD 782-5004

Rear Baffle RH
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

82

MTD 750-1166

Slev. Spacer LH

Note: Not shown

$4.99

$

Usually ships in 3-6 days

0

MTD 750-1165

Slev. Spacer RH
(Superseded to 750-1210)

$

$

Not available

83

MTD 682-0516A

Handle Bracket Assembly RH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

84

MTD 682-0515A

Handle Bracket Assembly LH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

85

MTD 782-7000

RD Chute Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

86

MTD 731-2634

Bail Stop

$

$

Not available

87

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

88

MTD 732-0417A

Spring Lever

$

$

Not available

89

MTD 710-1008

TT Screw

$5.49

$

In Stock, Qty 8

0

90

MTD 682-0512A

Height Adj. Assembly RH Compl.
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

91

MTD 682-0511A

Height Adj. Assembly LH Compl.
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

93

MTD 734-2004A

Wheel, 8x2 x 1.75
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

94

MTD 747-2132

Control Rod
(Superseded to 747-2132A)

$

$

Not available

95

MTD 732-04001

Extension Spring

$5.99

$

In Stock, only 2 left!

0

96

MTD 741-0604A

Bearing Sleeve .50 I.D.

$12.99

$

In Stock, Qty 12

0

MTD 737-0476

Bottle of Oil

Note: (Not shown)

$

$

Currently unavailable

97

MTD 756-0613

Half Pulley

$17.99

$

Usually ships in 3-6 days

0

98

MTD 756-0612A

Half Pulley

$16.99

$

Usually ships in 3-6 days

0

99

MTD 750-1071

Sleve Spacer .88 I.D. x 1.130 O.D.
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0
