12AD449P701 - Yard-Man Walk-Behind Mower (2004) General Assembly Parts Diagram

Walk-Behind Mower

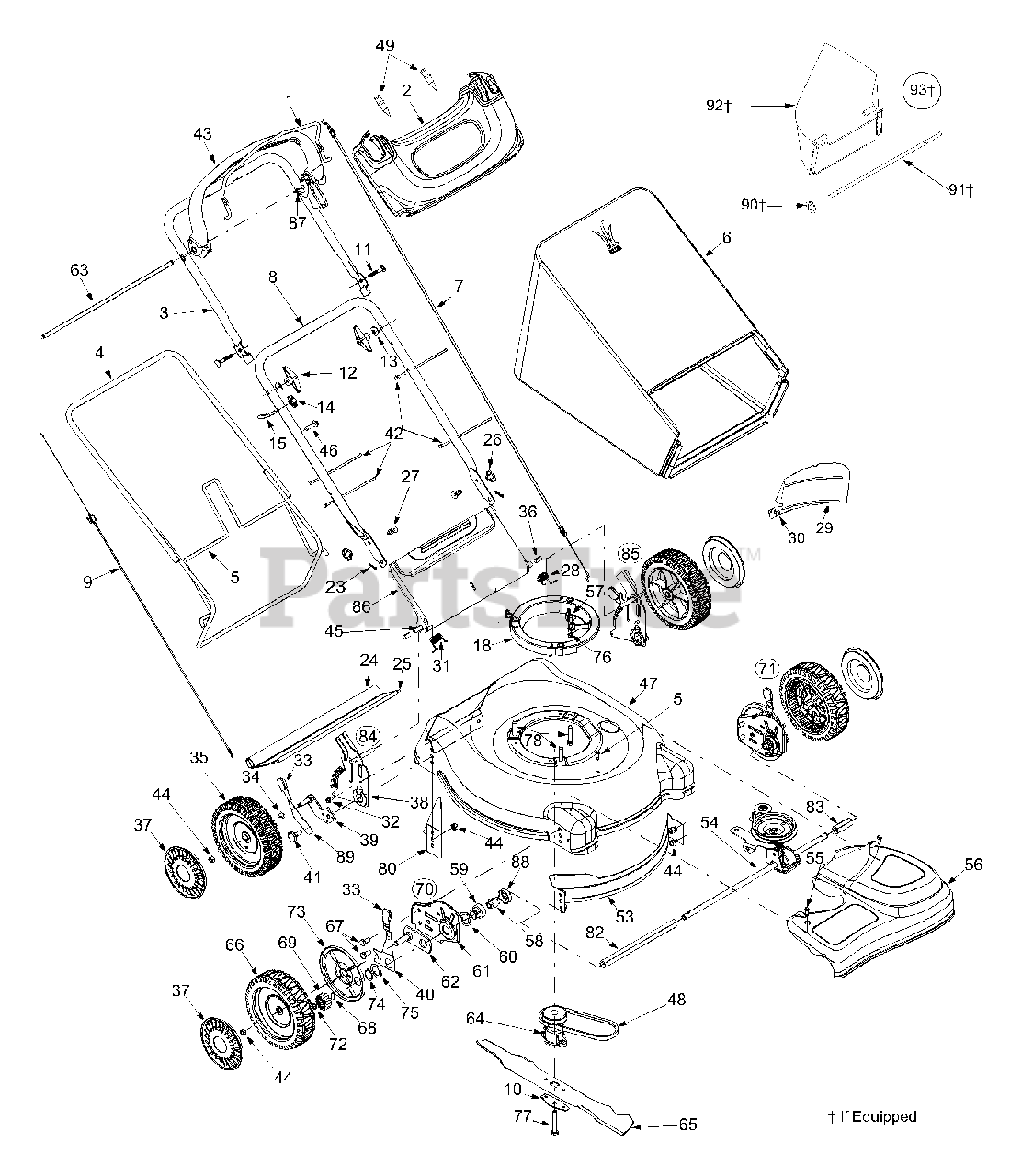

General Assembly Parts Diagram

  • Title

1

MTD 747-2133A

Bail Handle
(Superseded to 747-2133A-0637)

Variations

MTD 747-2133A-0637

Bail, Black SSP - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

2

MTD 731-2628A

Handle Panel
(Superseded to 731-04087A)

$48.99

$

Usually ships in 3-6 days

0

3

MTD 749-1507

Upper Handle
(Superseded to 749-1507-0637)

Variations

MTD 749-1507-0637

Upper Handle - POWDER BLACK (0637)

$34.99

$

In Stock, only 1 left!

0

$34.99

$

In Stock, only 1 left!

0

4

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

5

MTD 738-1002

Shoulder Screw

$4.49

$

In Stock, only 1 left!

0

6

MTD 664-04027

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

7

MTD 746-1252

Control Cable
(Superseded to 946-1252)

$19.99

$

In Stock, only 1 left!

0

8

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

9

MTD 746-1250

Drive Cable
(Superseded to 946-1250)

$35.99

$

In Stock, only 2 left!

0

10

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

11

MTD 710-0487

Carriage Bolt, 5/16-18 x 2.00

$7.49

$

Usually ships in 3-6 days

0

12

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

14

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

18

MTD 631-0075B

Engine Spacer Assembly

$

$

Not available

23

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-1236

Rear Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

25

MTD 732-0700

Trail Shield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

26

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-0703

Hex Carriage Screw

$4.49

$

In Stock, Qty 20+

0

28

MTD 732-04089

Torsion Spring LH
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

29

MTD 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Scr. AB 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 8

0

31

MTD 732-04090

Torsion Spring RH
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

32

MTD 710-1652

Hex Scr. w/ Wash. 1/4-20 x 0.625"

$4.49

$

In Stock, Qty 20+

0

33

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

34

MTD 736-0504

Wave Washer.510 x.750 x.017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

35

MTD 734-2004A

Wheel, 8 x 2.125
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

36

MTD 750-04162

Spacer,.390OD x.810ID x.950"
(Superseded to 950-04162)

$

$

Not available

37

MTD 731-1426A

Hubcap: Radial Spoke Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

38

MTD 787-01144

Handle Bracket RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 787-01143

Handle Bracket LH
(Superseded to 753-05994)

Note: Not Shown

$82.99

$

Usually ships in 3-6 days

0

39

MTD 687-02071

Pivot Arm Assembly RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

MTD 687-02070

Pivot Arm Assembly LH
(Superseded to 987-02070A)

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

40

MTD 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever LH

Note: Not Shown

$15.99

$

In Stock, only 1 left!

0

41

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

42

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

43

MTD 731-2629

Drive Handle
(Superseded to 631-04024)

$60.99

$

Usually ships in 3-6 days

0

44

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

45

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

46

MTD 710-0809

TT-Scr., 1/4-20 x 1.250

$6.99

$

In Stock, Qty 17

0

47

MTD 787-01007

21" Rear Discharge Deck
(Superseded to 753-05201)

$

$

Not available

48

MTD 754-0465

V-Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 13

0

49

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

53

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 618-04006

Transmission Assembly Compl.
(Superseded to 918-04006)

$311.99

$

Usually ships in 3-6 days

0

55

MTD 710-1650

Shld. Screw

$4.99

$

In Stock, Qty 20+

0

56

MTD 731-04580

Front Drive Cover: Yellow
(Superseded to 931-04580)

$

$

Not available

57

MTD 711-1293

Belt Keeper Pin

$4.99

$

Usually ships in 3-6 days

0

58

MTD 741-0604A

Bearing Sleeve.50 I.D.

$12.99

$

In Stock, Qty 12

0

59

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

60

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

61

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

MTD 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Note: Not Shown

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

63

MTD 747-2132A

Control Rod

$

$

Not available

64

MTD 748-04015A

One Piece Blade Adapter
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

65

MTD 742-0741

21" Mulching Blade w/ Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

66

MTD 734-2042

Wheel, 8 x 2.125
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

67

MTD 710-0216

Hex Screw 3/8-16

$4.49

$

In Stock, Qty 12

0

68

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

69

MTD 717-1762

Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear 14T LH

Note: Not Shown

$13.99

$

In Stock, only 4 left!

0

70

MTD 682-0512A

Height Adj. Assembly RH Compl.
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

71

MTD 682-0511A

Height Adj. Assembly LH Compl.
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

72

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

73

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

74

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

75

MTD 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

76

MTD 712-0271

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

77

MTD 710-1257

Hex Bolt

$7.99

$

In Stock, only 1 left!

0

78

MTD 710-1008

TT Screw

$5.49

$

In Stock, Qty 7

0

80

MTD 782-5004A

Rear Baffle RH
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

82

MTD 750-1165

Slev. Spacer RH
(Superseded to 750-1210)

$

$

Not available

83

MTD 750-1166

Slev. Spacer LH

$4.99

$

Usually ships in 3-6 days

0

84

MTD 687-02068

Handle Bracket Assembly RH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

85

MTD 687-02069

Handle Bracket Assembly LH Compl.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

86

MTD 731-04134

RD Chute Door
(Superseded to 931-04134)

$

$

Not available

87

MTD 731-2634

Bail Stop

$

$

Not available

88

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

89

MTD 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

90

MTD 726-0201

Nut: Spd.3125ID

Note: If Equipped

$6.99

$

In Stock, only 2 left!

0

91

MTD 711-0996

Rod

Note: If Equipped

$45.99

$

Usually ships in 3-6 days

0

92

MTD 731-1405

Side Discharge Adapter
(Superseded to 731-1405A)

Note: If Equipped

$

$

Not available

93

MTD 190-104-000

Chute Deflector Complete

Note: If Equipped

$

$

Not available
