12ABD2M7897 - Columbia Walk-Behind Mower (2018) Transmission Parts Diagram

Walk-Behind Mower

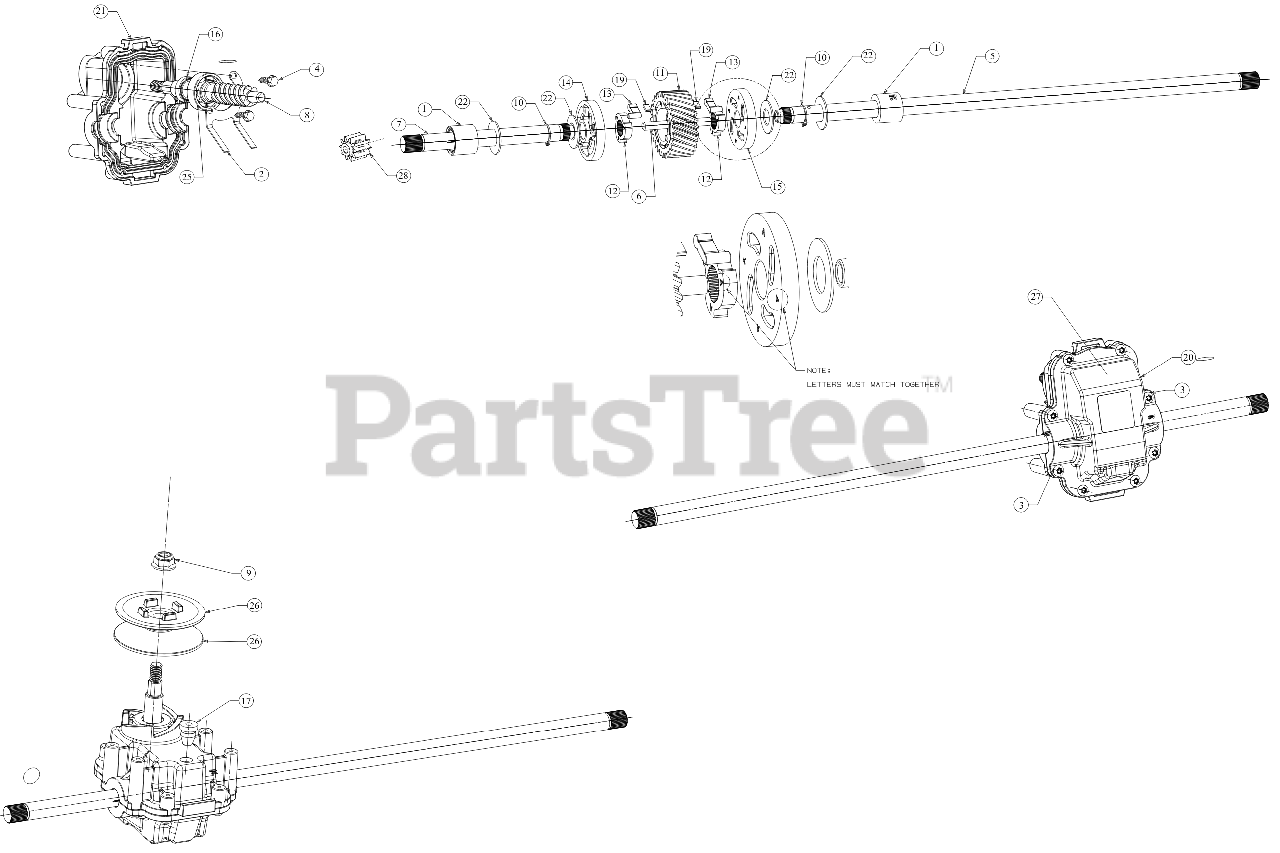

Transmission Parts Diagram

  • Title
1

BEARING ASSEMBLY

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

2

SPRING PLATE

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

3

MTD 710-04329

SCREW .159 X .610

$4.99

$

In Stock, only 1 left!

0

4

MTD 710-04374

SCREW .159 X .43

$3.99

$

In Stock, Qty 11

0

5

AXLE SHAFT (RH)

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

6

PIN

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

7

AXLE SHAFT (LH)

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

8

WORM SHAFT

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

9

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 716-0865

SNAP RING FOR .500

$4.49

$

In Stock, Qty 20+

0

11

HELICAL GEAR

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

12

HUB

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

13

DRIVE ARM

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

14

DRAG PLATE (LH)

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

15

DRAG PLATE (RH)

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

16

MTD 721-04107A

OIL SEAL

$4.99

$

In Stock, only 4 left!

0

17

OIL PLUG

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

18

THREE BOND SEALANT

$

$

Not available

19

MAGNET

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

20

LOWER HOUSING

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

21

UPPER HOUSING

Note: (Not Serviceable; Order Part Number 918-07000)

$

$

Not available

22

MTD 736-04224

FLAT WASHER .508X1.000X.040

$3.99

$

Usually ships in 3-6 days

0

23

TRANSMISSION OIL

$

$

Not available

24

GREASE

$

$

Not available

25

MTD 741-04116

BALL BEARING

$7.99

$

In Stock, only 1 left!

0

26

MTD 756-05054

HALF PULLEY 2.50 OD

$6.99

$

Usually ships in 3-6 days

0

27

MTD 731-08175

TRANSMISSION COVER

$11.99

$

Usually ships in 3-6 days

0

28

MTD 917-04849

SPUR GEAR 9T

$4.99

$

In Stock, only 2 left!

0

MTD 918-07000

TRANSMISSION ASSEMBLY

Note: (Not Shown)

$148.99

$

In Stock, only 2 left!

0
